STEREO MICROSCOPES

KBD Tools Co., Ltd.
STEREO MICROSCOPES thumbnail-1
STEREO MICROSCOPES photo-1
US$ 80 - 120 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HG
Model Number:
DTX
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HG
Model Number DTX
Theory Stereo Microscope
Drawtube Other

Specifications

WE CAN SUPPLY MICROSCOPES

Information

FEATURE

1.Sharp stereo erect image over a wide field of view
2.45°inclined and 360°rotatable binocular head with locked-in eyepiece.The left and right ocular-tube with diopter adjustment±5dp
3.Three kind of 90°1×/2×,1×/3×,2×/4×,
Two kinds of objeetive rotation for selection:DTX11 are totated by objective cover;DTX21 are rotated by knob
4.Power supply 110V/60HZ or 220V/50HZ
5.Product has CE approval
6.Iiiumination:L1.Upper reflected halogen light 12V 10W;down halogen light 12V 10W
L2.Upper reflected halogen light 12V10W
L3.Fiuorescnt tamp 5w for transmitted light and halogen lamp12v/10w for incident light
L4.Filuorescent lamp 5W for transmitted light and halogen lamp 12v/10w for incident light.Brightness is adjustable
L5.It always adopts led lights for the transmission and reflex illumination
7.Each packed in styrofoam and in an innerbox,Four sets in one canton

Specification
ModelEyepieceObjectivePlateIllumination

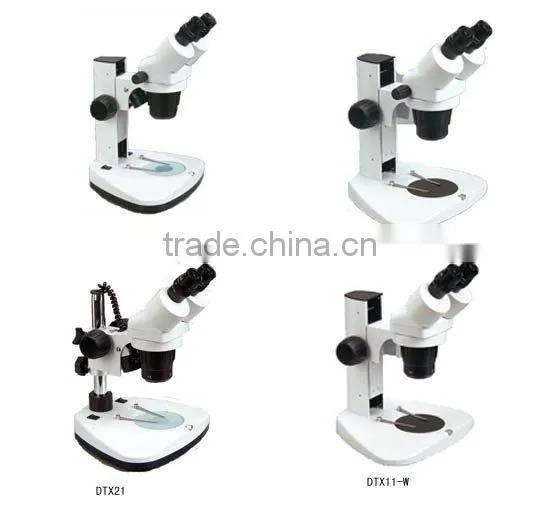

DTX11SWF10×1×-2×White/backNatural illumination
DTX21SWF10×2×-4×Frosted glass Incident illumination

Optical Data
Objective MagnificatiomEYEPIECES
WF5×SWF10×WF15×WF20×(mm)
Magnification Field of view
(mm)
Magnification Field of view
(mm)		Magnification Field of view
(mm)
Magnification Field of view
(mm)
1×5× 20.010× 22.015× 15.020× 10.091.5
2×10× 10.020× 11.030× 7.540× 6.5
1×5× 20.010× 22.015× 15.020× 70.091.5
3×15× 7.015× 7.345× 5.060× 4.3
2×10× 10.020× 11.030× 7.540× 6.591.5
4×20× 5.040× 5.560× 3.780× 3.2
