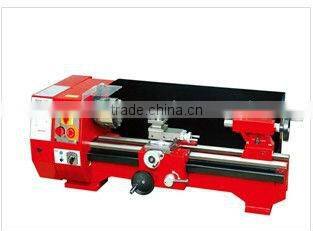

Bench Lathe

Specifications

Specifications:

Swing over bed:  250mm

Distance between centers: Model 400     400mm

                                        Model 550     550mm

Hole through spindle: 20mm

Spindle taper:  MT3

Tailstock taper: MT2

Spindle speed( Variable): 0-2000rpm

Cross slide travel: 110mm

Compound travel: 75mm

Motor output power: 800W

Range of threads:

Metric version   0.4-3.0mm ( 12 threads pitches)

Imperial version 10-44TPI ( 8 threads pitches)

Overall dimension (LXWXH)   400    1080X680X450mm

                                           550    1230x680x450mm

Weight ( Net/ Gross)   Model 400    125/160KG

                                 Model 550    145/180KG

Packing size:   Model 400   1100x680x610mm

                       Model 550   1200x680x610mm

Standard Attachment:

125mm diameter three-jaw chuck

Dead center  MT3  MT2

Change gear set

Wrench set

Oil can
