Specifications

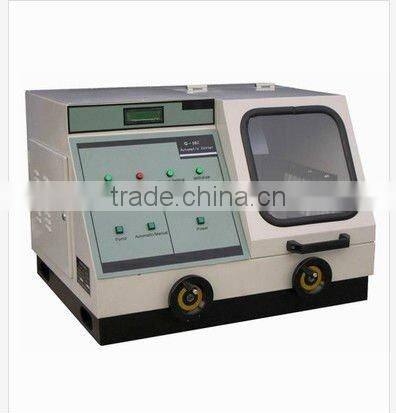

Model Q-80Z Automatic metallography specimen cutting machine is equipped with big cutting room and movable T-shape work table.
Model Q-80Z Automatic metallography specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine have the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic workpieces.
Technical specifications
1. Cutting speed: 2.25, 3, 4, 5, 7, 9, 12, 15mm/min.
2. Sand wheel rotating speed: 2100rpm
3. Sand wheel specification: 350 x 2.5 x 32mm
4. Max. cutting diameter: Ø80mm
5. Various cutting data can be displayed on high definition backlight
type LCD screen.
6. Power supply: 380V three phases, 50Hz
7. Cutting capacity: 100mm x 200mm
8. Manual and automatic cutting means can be switched at will
9 Non-burning loss swing type cutting means
10. Bidirectional feeding means increase the length of deep cutting
11. Equipped with 60L cooling liquid water tank.
