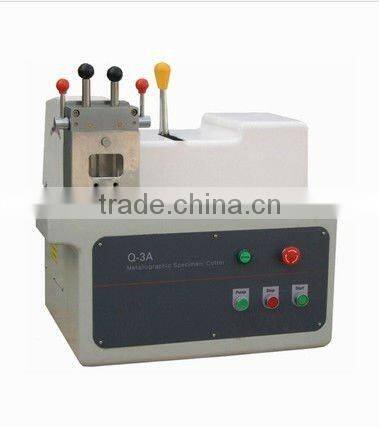

MODEL Q-3A CUTTING MACHINE

    Model Q-3A Metallography specimen cutting machine can be used for cutting of normal metallography and lithofacies materials. The equipped cooling system can clear up the heat produced during cutting so that  it will avoid the metallography structure deforming of specimen because of heating fluence. The cutting against rock and ceramics materials must be equipped with diamond sand wheel (diamond sand wheels need to be ordered specially). This machine features easy operation and reliable safety. It is the ideal specimen preparing instrument for using in  factories, scientific research institutes and laboratories of colleges.

Technical specifications

1. Cutting power: 2.2KW

2. Sand wheel specification: 250 x 2.5 x 32mm

3. Sand wheel rotating speed: 2800 rpm

4. Max. cutting diameter: Ø55mm

5.  Power supply: 380V three phases, 50Hz

6. Dimensions: 63 × 50 × 65 cm

7. Net weight: 130 Kg

8. Independent cooling system
