High Power Outdoor Amplifier 8W Industrial WiFi Signal Booster
Number: JYC2803019
1.Name:Outdoor 2.4G&5.8G 8W WiFi Singnal Booster/Broadbans Amplifier
2.Connector Type:SMA Receptacle (50 ohm)
3.Output Power:39dBm(8Watts)
4.Transmit Gain:17dBm nominal.
5.Receiver Gain:11dBm
6.Noise Figure:3.0dB typical
7.Power Adaptor:9~12V /DC 110~240V for AC Adapter
8.Operating Humidity:Up to 95% relative humidity
9.Material:Cast Aluminum
10.Power input:5V,0.5A

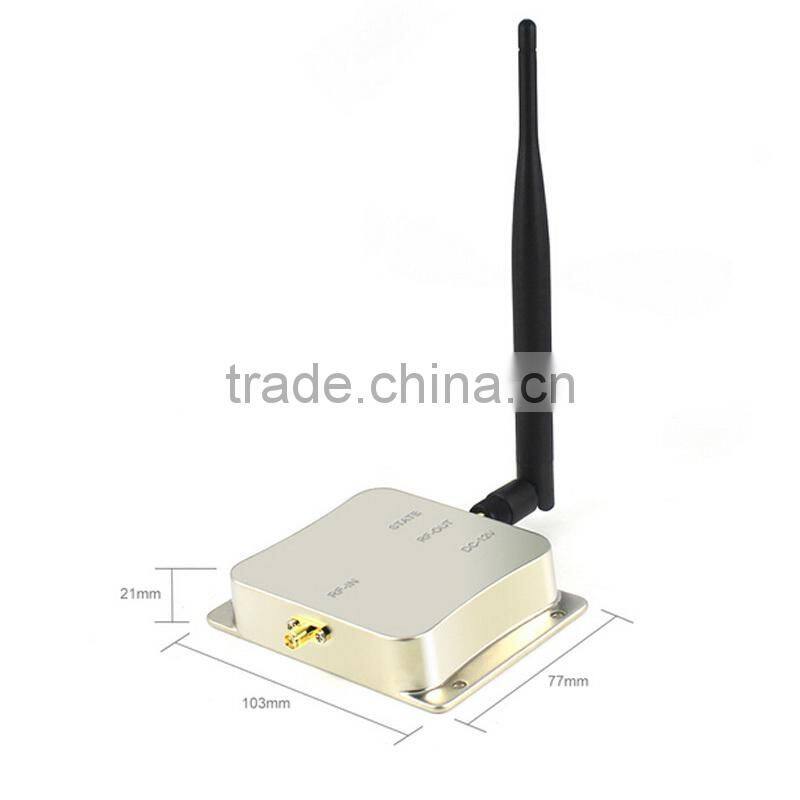

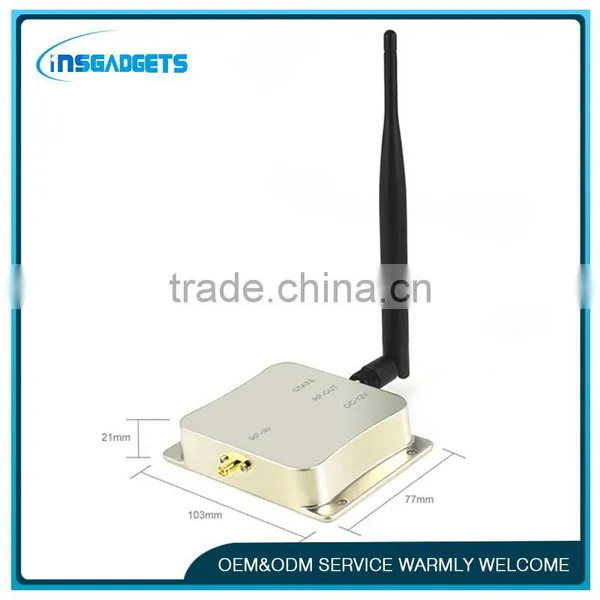

11.Size(Length x wide x high):103 X77 X21(mm)
12.Weight:785g
13.Work temperature:0℃-40℃(32℉-104℉)
14.Storage temperature:-40℃-70℃(-40℉-158℉)
15.Work humidity:10%-90%noncondensing
16.Storage humidity:5%-95%noncondensing
17.Product Description
1>High power, easy installation and operation;

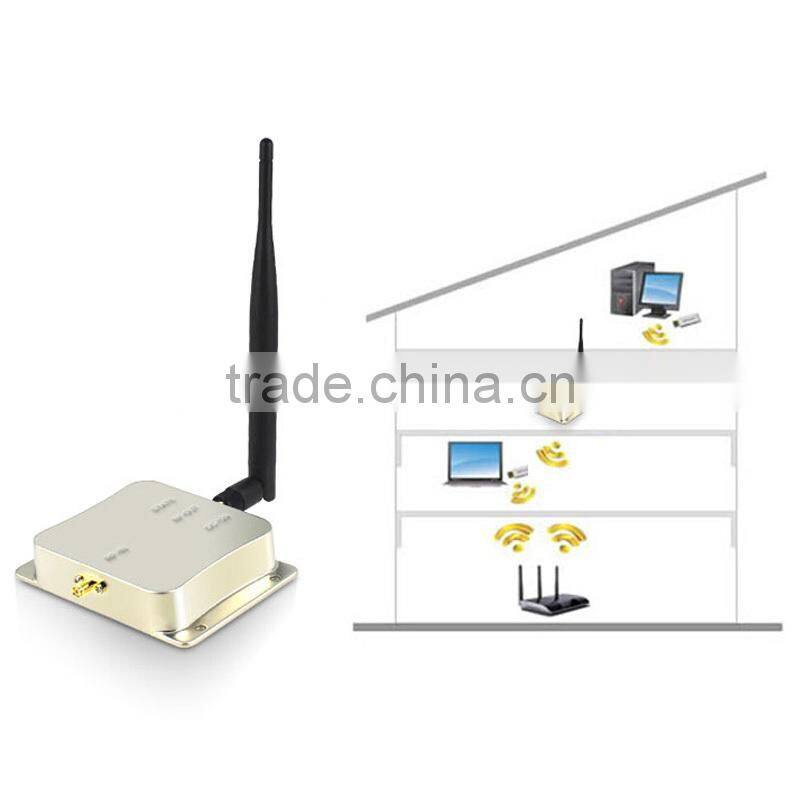

2>Strengthen radio signal to Increase the effective range and coverage area for Wi-Fi communication;
3>Save wiring costs, easily build a wireless infrastructure for home or business use;
4>Make broadband wireless application in possible coverage.
5>Using Precautions
1,Recommend the input power of RFIN port to between 7dBm and 13dBm.
2,Make sure all power supply to the booster and the AP/Router unit be disconnected before removing or changing antenna.
3,When finishing connecting the booster and the AP/Router, restore power supply first to the booster and then to AP/Router subsequently.
4,Waterproof, lightning protection equipment should be attached to outdoor antenna.
5,Keep away from heat and keep ventilated.
6,Please comply with local regulations of electromagnetic radiation.
7,NOTE: The item need connect with the Access Point Router together, then it can work and the Access Point Router is NOT included.
Color box
1.This product exported Mexico, the United States, Poland,Canada,England,and other countries.
2.We guarantee each product will be checked.
3.If there are bad products, we will promptly pay compensation to customers without any charge.
4.We also sell a lot of similar electronic products, varieties, good quality.
