Alibaba Heracles design Complete poultry equipment for broiler and breeders
Expertise for poultry equipment solution which we can supply equipment for chicken farm.
Main stock line
Feed Silo
Manpower Hopper

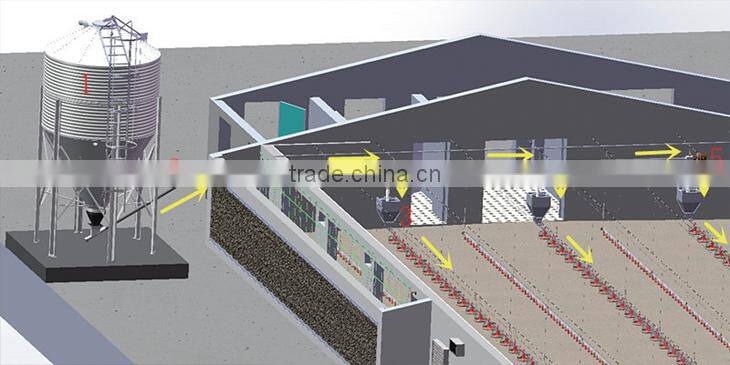

Feed silo:
1).Silo with standard ladder and guard railing, safe and reliable;
2).Firm connection and good sealing performance;
3).Galvanized steel sheet, more than 10 years service life.
4).Size: 5 T, 6 T, 7 T, 8 T, 10 T, 16 T, 17 T, 20 T, 21 T, 24 T, 25 T, 30 T
Manpower hopper:
1).Galvanized steel sheet;
2).Size: 600 Kg, 800 Kg
Driving motor
Taiwan brand Power:0.75 Kw Voltage:380 V/220 V/others,
Three-phase/Single-phase Frequency:50 Hz

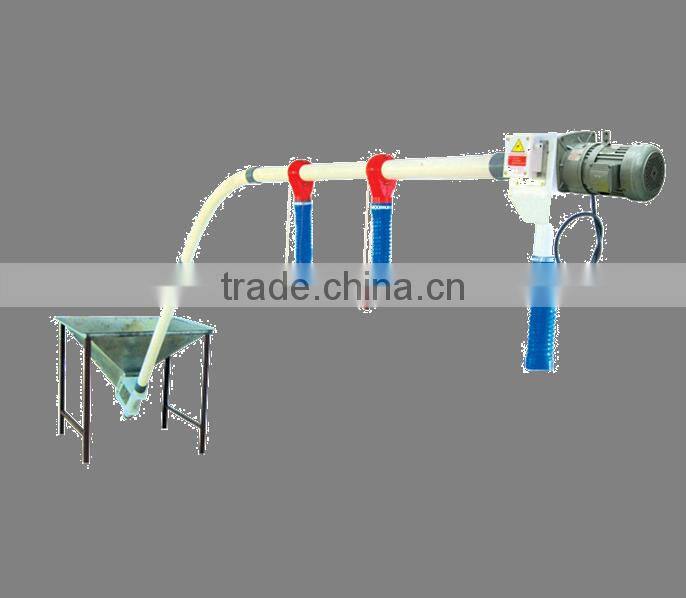

Feed conveying pipe with auger inside
Diameter of conveying pipe:Φ75 mm, Material:PVC
Helical spring auger is imported from South Africa, feed ability:
1400Kg/h(maximum) Conveying length:60m

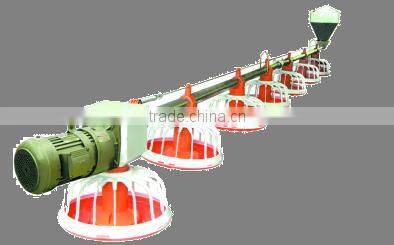

2.Automatic pan feeding system:
V-shape bin(with hopper)
Bin volume:70-90 kg,
Material:hot-dip galvanized sheet Material thickness:1 mm
Driving motor
Taiwan brand Power:0.75 Kw/1.1 Kw/1.5 Kw,
Voltage:380 V/220 V/others Three-phase/Single-phase,
Frequency: 50 Hz, AC current

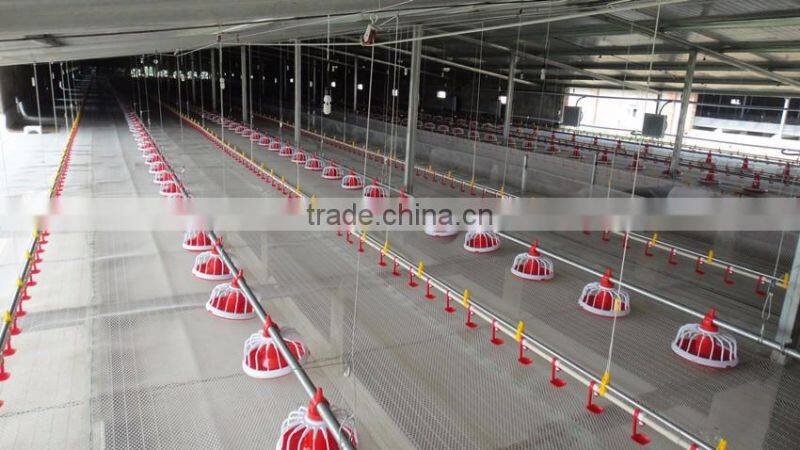

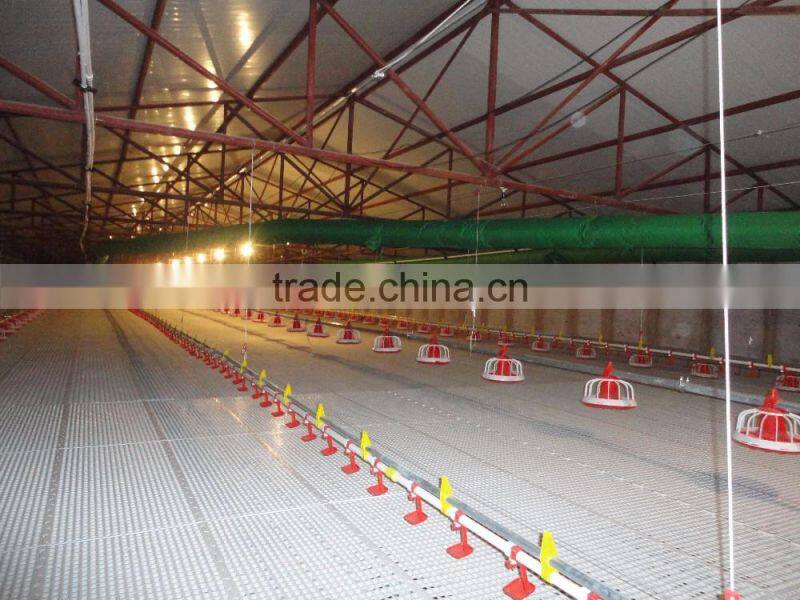

Pan feeding lines
Feed pipe:
Diameter of feed pipe: Φ45 mm
Material: hot-dip galvanized sheet pipe with >275 g/m2 zinc coating amount
Helical spring auger: imported from South Africa, feeding ability: 450 Kg/h
Feed pan:
14 grilles, pan bottom diameter-330 mm, material-pure engineering plastic
a. Different gears of feed amount, meeting eating demands of different period chickens.
b. Accurate and quick to adjust feed flow, the principle is to catch two ears in the inner and pull them out adjust up and down.
c. The pan bottom can be disassembled on the ground, which can be used for day-old chicks.
d. V-shape plate design can reduce feed storage on bottom, so birds can always eat fresh feed, which also prevents birds staying on the plate for a long time.
e. The edge of pan plate tilt towards the center, which avoids waste of feed, the smooth edge prevents birds craws hurting and make sure safe and comfort feeding.
Feeding line specification: 4 feed pans/3 meter, 3 feed pans/3 meter
Sensor
Imported from Germany time delay range: 0-2 hours

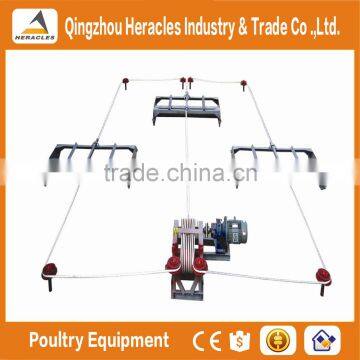

Lifting&suspension system
It's very convenient to adjust feeding line height by winch.

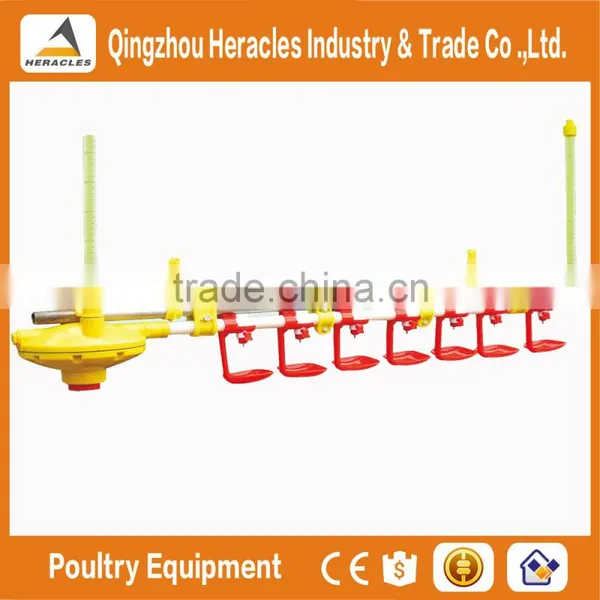

3.Automatic nipple drinking system:
Waterline front system
This front part is controller of water, it's main function is to adjust water supplying pressure and stabilize drinking volume, which is usually installed in control room, include:
*Pressure regulating valve-make sure to supply stable water to drinking lines;
*Filter-clean water and avoid blocking nipples;
*Water meter-measure water usage volume.
*Doser/Medicator-add medicine to drinking system automatically to prevent disease.
Pressure regulator
NEW DESIGN
Good regulating stability, high switching performance;
Water supply is sufficient&equality;
Recoil cleaning with good cleaning result, save time and water;
Good quality movable valve, easy to change.

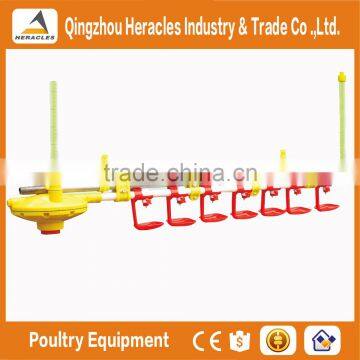

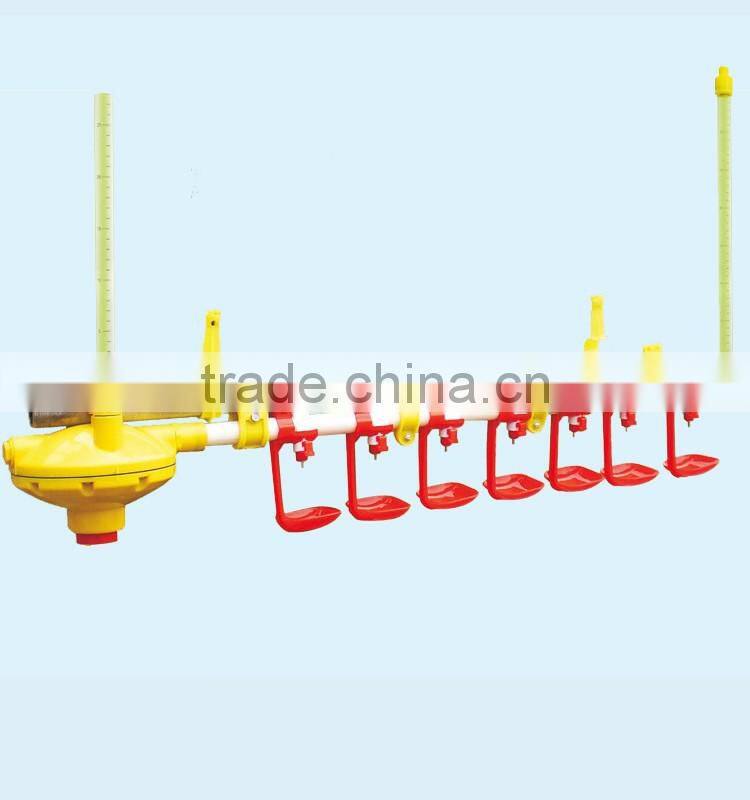

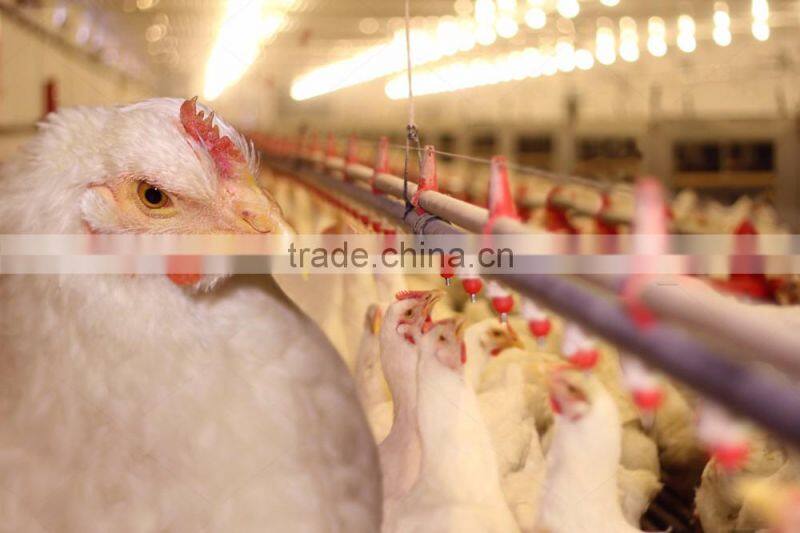

Nipple drinking lines
Nipple:
The outside shell is made of high quality plastic, the inner rod is made of high quality stainless
steel.
a. All nipples are anti-corrosion, service life over 10 years.
b. Double-sealing structure, avoids water leakage and its bad influence to chicken house.
c. Birds can drink from 360 degrees, easier to drink.
d. Meeting drinking demand of different-period chickens.
Drip cup:
Single-arm design is more suitable for modern chicken raising idea.
Square water pipe:lower possibility of water accumulation than round water pipe
Drinking line specification: 15 nipples/3m, 12 nipples/3m
Water display level tube
Use high transparency and impact resistant material, sturdy and durable, convenient to watch water level.
Lifting&suspension system
Correct drinking line height is very important for chicken, both higher and lower can lead to chicken bone's distortion, which is bad for chicken growth, also waste water. It's very easy to adjust drinking line height by winch.
4.Ventilation system:
The system controls poultry house inner environment, provides fresh air, proper humidity for your chickens,
ensuring your broilers provide maximum production.
(2). Components:

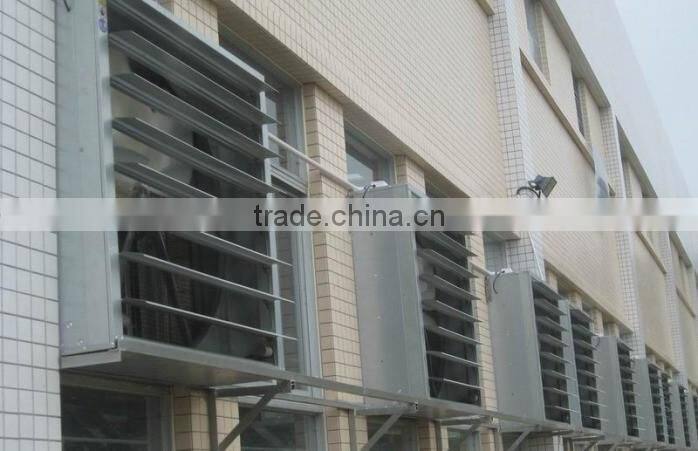

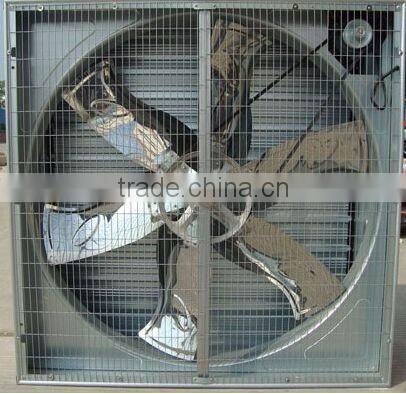

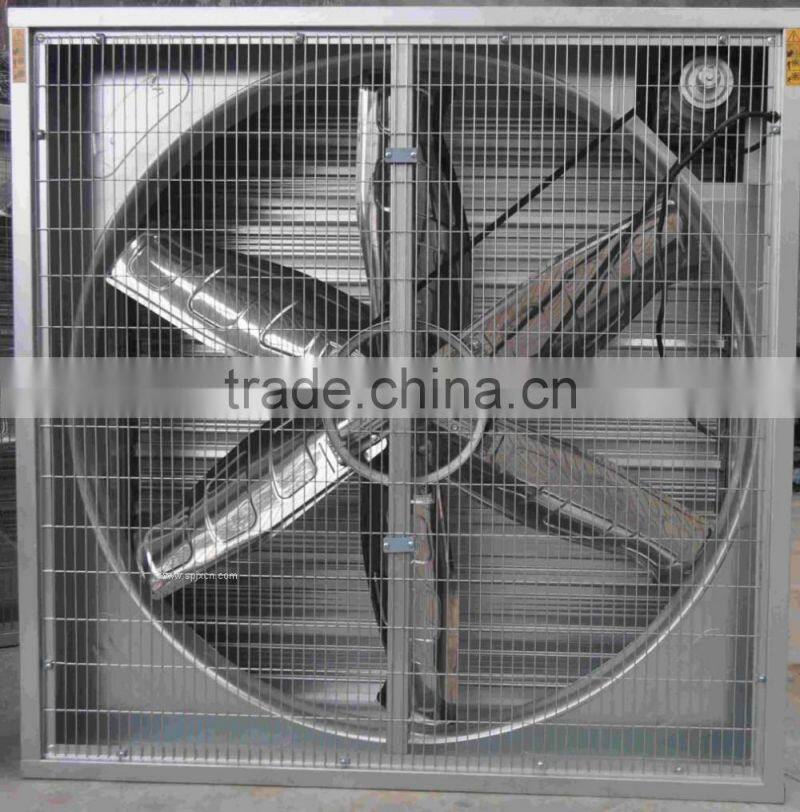

a.Ventilation fans:
5.Cooling pad system:
(1). Function:
When the air goes through cooling pads, the heat will be taken down by the evaporation of water. So the air will be cooled than before going into your poultry farms.
(2). Performance parameters:
Length* Width: Thickness: it can be customized
Frame: Galvanized Steel, Aluminium Alloy and Stainless Steel
Color: Brown, Brown&Green, Green, Black
Title goes here.
(1)Function:
The system can set suitable mode according to different stage birds raising requirements to temperature,humidity,through control on/off of ventilation fans,cooling pads,heaters even air inlets to achieve the aim of automatic controlling of chicken farm environment.
(2)Components:
a.Environment controller:
Imported from Israel,four series for your option-T 607/T 610/T 616/Imagel.they can achieve minimum ventilation-transition ventilation-tunnel ventilation differently.
b.Temperature sensor and humidity sensor
They can be connected to the environment controller to display indoor temperature and humidity
c.Control boxes
They have standard box body,use good quality electronic elements from great brands,such as CHNT,SIEMENS,SCHNEIDER,also have UPS and alarm device(for high/low temperature,power failure)
d.Lighting system
e.Wire system
Qingzhou Heracles Industry&Trade Co.,Ltd
1.Qingzhou Heracles Industry & Trade Co., Ltd. is a manufacturer specialized in the development and production of agricultural and poultry machinery with very consistent quality.Featuring optimum combination of price and performance, our products mainly include greenhouse,poultry equipment,ventilation exhaust fan,cooling pad and their accessories.Our loyal customer base spreads in European,North America, South America,Australia,Africa,etc.
2.Our core competitiveness lies in high quality and innovation. We adopt international quality management systems,and work with world renowned suppliers. Therefore, our machines are easy to operate and maintain.
3.We provide professional technical support and product training support services before sales,and offer 7*24 after-sales services and training of overseas technicians. Heracles R&D engineers keep seeking new ways to innovate all of our machines, which are robust and reliable and can tackle anything at any time.
4.We would like to share with you how we deliver our promise and welcome your comments and questions. We are also exploring opportunities for cooperation with global distributors and dealers to help more customers worldwide with our machine solutions.
Q:What information you are supposed to provide to get a good price?
A:Broiler chicken:
-Chicken farm size(Length *Width*Height)
-Quantity of broiler in one farm
-Weight of broilers when sold in market
-Birds density in your ares
-Types of breeding ,on the ground on in cages
-Broiler farm location and local climate condition,such as temperature humidity
Q:What service can we provide for you?
A:Chicken farm design+Equipment layout drawing+Broiler chicken poultry equipment+On-site installing
