Home > Products > Packing Machine > No need high-cost knife model Digital CNC sample making board cutting machine
No need high-cost knife model Digital CNC sample making board cutting machine
- 50 Unit / Units per Month
- Ningbo or Shanghai
- T/T Credit Card
Product Details
Condition: | New | Laser Type: | Other | Applicable Material: | Acrylic, Leather, Paper, plastic |
Cutting Thickness: | ≤50mm (depends on the kind of material) | Cutting Area: | 1300mm*1000mm | Cutting Speed: | 200-800mm/s(depends on the kind of material) |
CNC or Not: | Yes | Place of Origin: | Zhejiang, China | Brand Name: | OEM |
Model Number: | BW-CB03-1311 | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
******The pricture and specifications are subject to change without prior notice. ******
******Any question, please confirm with our sales manager.******
Welcome to Boway
We provide more than 300 kinds of office equipment for your need
(You may click the following picture to see more)
How to Choose Your Right Items?
Oscillating Cutting Tool For all kinds of corrugated paper, cardboard, grey board, composite materials up to 15mm thickness
♦ Kiss Cut tool
For kiss cutting on thin multi-layer materials
♦ Non-Oscillating Tool
Tool for all kinds of soft materials up to 5mm thickness, as cardboard
♦ Multi-Angle Grey Cardboard V-cut
Tool with wide range of angle 90-150 degree for thick materials up to 4mm
♦ Foam Cutting Tool
For cutting foam board up to 45mm thickness (special requirement, more thickness available)
Model No. | CB03-1311 | CB03-1815 | CB03-2513 | CB03-2517 | CB03-3020 |
Cutting speed | 200-800mm/s(depends on the kind of material) | ||||
Moving Speed | 800-1200mm/s | ||||
Cutting Depth | ≤50mm (depends on the kind of material) | ||||
Min. Cutting Diameter | 3mm | ||||
Cutting Media | Corrugated paper, cardboard, grey cardboard, Plastic board, Foam, EVA foam, rubber, composite material, etc. | ||||
Multi-functional Tool Head | Oscillating cutting knife, plotting pen, creasing wheel and laser pointer | ||||
Pen/Blade/Wheel | Gel-ink pen /Cutting blades of different type/ Creasing wheel of different size | ||||
Media Fixture Device | Individual section vacuum suction | ||||
Repeat Cutting Precision | ≤0.1mm | ||||
Safety device | Infrared sensor, responsive, safe and reliable | ||||
Interface | Serial port and Ethernet port RJ45 | ||||
Transmitting distance | 350m | ||||
Buffer Memory | 2G | ||||
Data transfer rate | 100MB/S | ||||
Command Mode | HP-GL compatible format | ||||
Control Panel | Touch screen | ||||
Transmission System | Digital servo driver; straight rail; synchronous belt | ||||
Power Supply | AC 110V/220V/380V±10% 50HZ / 7.5KW AC 110V/220V/380V±10% 50HZ / 11KW | ||||
Working Environment | 10 to 35 deg.C | ||||
Effective Cutting Area (mm*mm) | 1300*1000 | 1800*1500 | 2500*1300 | 2500*1700 | 3000*2000 |
Description

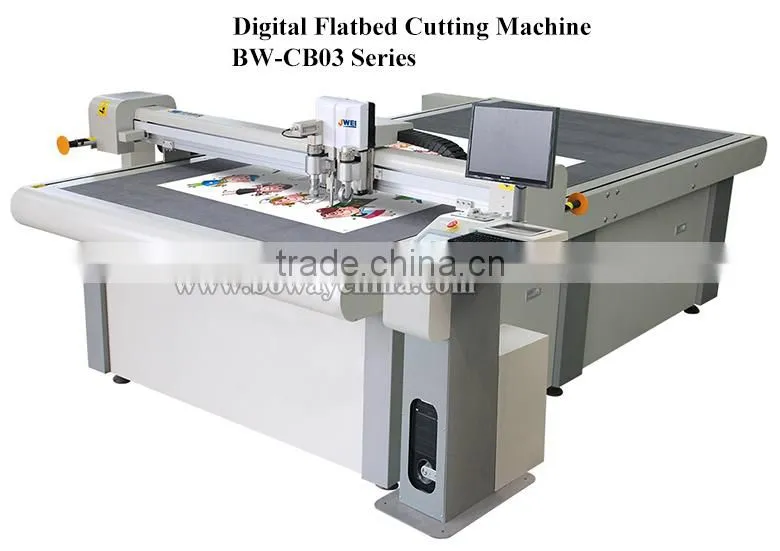

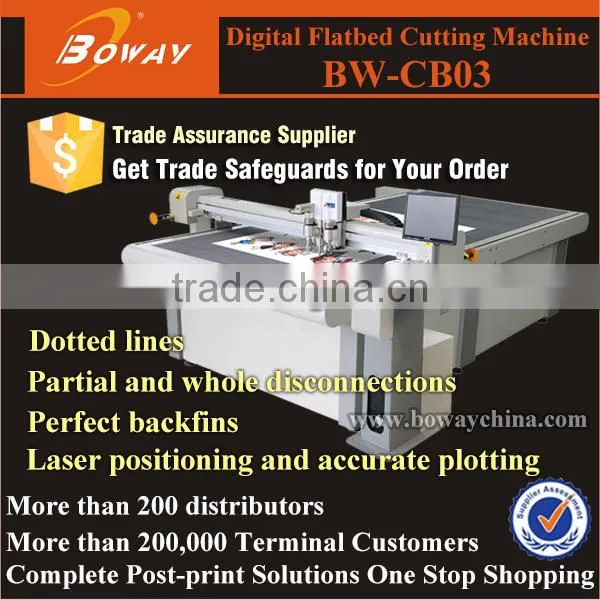

The CB Series Digital Cutter is a multi-functional digital cutter that meets a variety of needs. The modularized tool head structure enables convenient tool-switching and provides economical future upgrading. The digital cutter's six axis motor-controlled CNC system performs with high speed and accuracy. The DSP integrated controller reduces the error rate and maintenance cost while the divided-section vacuum system offers satisfactory and controllable suction. The Ethernet port, user-friendly interface allows design software from different PCs access to one cutter which maximizes your investment. The LCD touch screen panel makes it easy to learn and operate. The digital cutter offers flexible tool module options that meet the requirements of diverse industries and has the option of an English LCD menu. The digital cutter is a CE certified product. We welcome custom orders.
Features
1. Multi-functional Digital Cutter that can be quickly changed to adapt to different materials.
2. It has an IC control system that offers high-performance and convenient Ethernet with high speed.
3. The CB Series Digital Cutter has an English and Chinese LCD touch screen panel and a massive storage volume system.
4. The CB Series Digital Cutter has the functions of making dotted lines, partial and whole disconnections, perfect backfins, laser positioning and accurate plotting.
5. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
6. The CB Series Digital Cutter can induce draft separately and easily cuts small pieces.
7. The anti-collision and the built-in auto-sensing devices ensure the security of the CB Series Digital Cutter.
8. High efficiency can be realized without making a high-cost knife model.
9. The CB Series Digital Cutter is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
Application
CB series digital cutter is suitable for cutting various different materials. The digital cutter is designed for production with small quantities and can save on costs while maintaining speed and accuracy. This type of digital cutter is used in various industries including packaging, printing, advertise displaying, leather processing, architecture modeling, composite material and knife modeling.
Advantage
♦ Best Solution for digital cutting
♦ Core Technology-World-class
♦ High-end 6 Axis fast moving control system.
♦ High-performance software integrated control system, cutting table level full automatic adjustment
♦ Advanced platform structure design
♦ Super strong wind, strong suction(small pattern suction is no longer difficult).
♦ High-performance configuration
♦ Kinds of tool heads. Powerful functions. Wide rang of cutting
♦ LED touch screen, multi-language man-machine interface.Operating instructions can be read directly.
♦ Ethernet transmission. Several remote computers can be operated simultaneously. Remote upgrade maintenance can be realized.
♦ Strong saving space can save 2G cutting material information and cutting pattern files. Off-line operation can be realized.
♦ Laser cross locating,Precise positioning.
♦ High sensitivity collision-prevention device, built-in auto-induction, safe and reliable.
Trading Terms
Terms of payment | T/T, L/C, Westion Union. |
Terms of trade | FOB, CFR, CIF |
Mode of transportation | By Sea, By Air |
Port of shipment | Shanghai or Ningbo |
Rerfence date of delivery | About 15 days, Instant supply of hot-selling products |
About Shipment
Certificate of Fumigation | √ |
Certificate of Original | CO, FORM A, FORM F, FORM E etc. Guarantee customer to import goods at the preferential tariff rate |
Certificate of Inspection | √ |
Documents Authentication | √ |
I. Agents Tranining
II. Warranty
We provide one-year limited warranty for all machines from the date of purchase
1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:
u Improper or inadequate maintenance
u Misusage and mishandling
u Damaged by a wrong voltage use
u Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)
2. What is the repair, exchange & refund policy?
Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.
Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.
Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.
Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.
3. What about when one year warranty over time?
We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.
4. How to support you when you purchase our machine in first time?
When you meet the problem of our machine under the situation that you are not familiar with our machines.
Do not worry, we can offer:
u User Manual in English
u Operation Video
u Support on-line
u You can send your technician to our factory to attend the skill training.
Customers and Us
FAQ
1.What’s the product range?
Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and some small office equipment.
2.Are you a manufacture?
Yes, we are in Hangzhou which middle of shanghai and Ningbo
3.What is the minimum quantity for order?
5 pcs or 10000 USD for order.
4.Do you have stock product to sell?
Maybe , It’s depend on which machine ,you like?
5.Do you inspect the finished products?
Yes, Each step of production products will be camed out inspection by QC department before shipping.
6.How do you ship the finished products?
By Sea
By Plane
By courier, TNT , DHL, Fedex, UPS Etc
7.What’s the Payment term?
Payment term: T/T before shipment.
We accept payment via the Paypal /Western union/TT, you can choose as you like.
8.What’s the delivery time?
Within 15 days after get the payment
