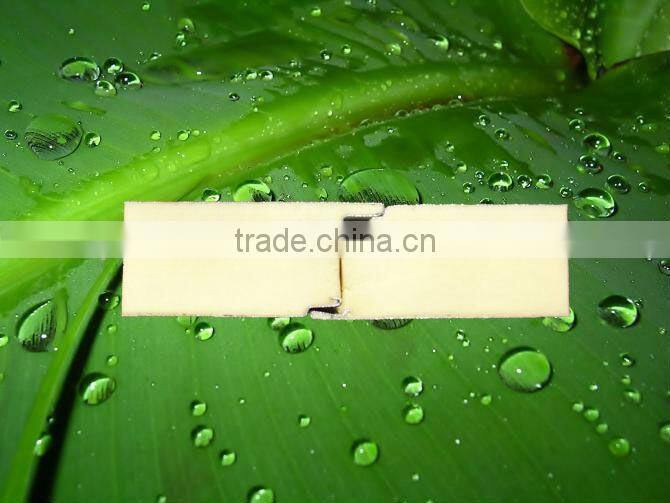

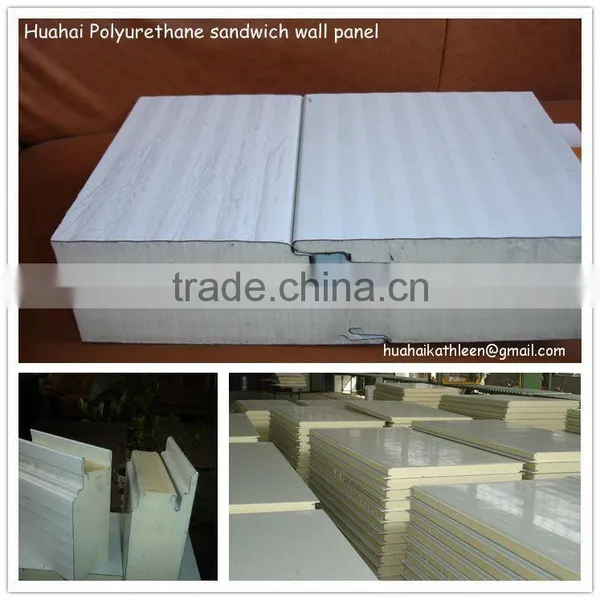

Polyurethane sandwich panel for wall panel :

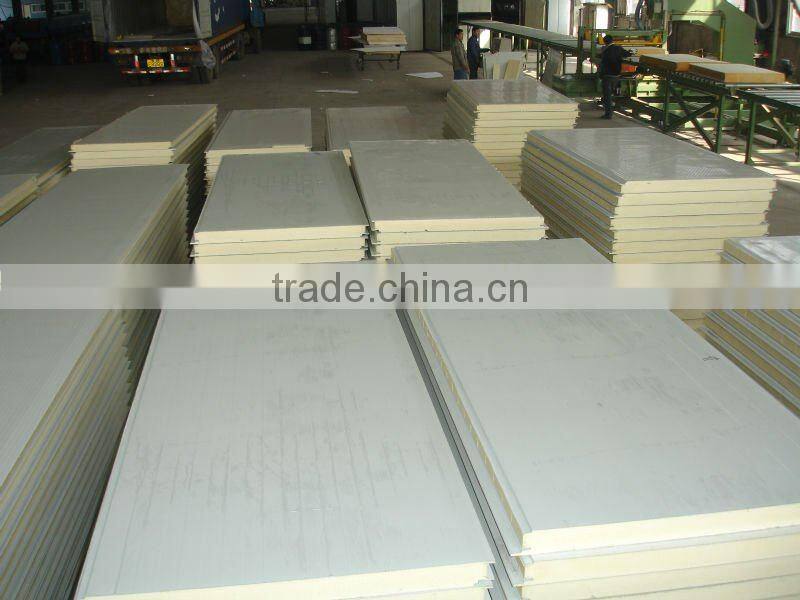

We brought in a worldclass continuous producting line from Germany,we can produce 5000 square meters every day.
Our PU panels have acquired "Chinese Green Environmental Protection Product" Title.
Energy conservation,environmental protection,economical heat insulting,good structure,easy-doing construction.wide range of profile options:smooth flat,micro-rib and embossing ect.
Resulting high performance exterior walls integrated with other wall material,.Invisible screwing design and varied joint method
The dimension:
Two sides of color steel ,the thickness of steel can do as your order,the thickness of PU sandwich is 50mm,75mm.100mm.
The panel's standard width is 1005mm.
Feature:
good -quality color steel ,filled with high-density polyurethane (The density can reach 42kg/m3) .
Fireproofing grade is GB class "B"
1).Density(kg/m³): Over 42 |
2).Impact Strength (Kpa): over 150. |
3).Water Absorption Rate:less than 0.118 |
4).Temperature Range: -200°C~+150°C Specs |
5).Heat Transfer Coefficient: <0.022 W/m*K; |
6). Cubic Area Change : <1% (-30 C-100 C/96h); |
7) .Have acquried "the Chinese Green Environmental Products" title |
8).Have passed ISO 9001:2000 Standard |
|
9)Delivery time :we brought in world-class continous line,we can produce 2000 squaremeters' panel everyday.always 7 days after receipt of deposit. |
10)Packing way :two sides of PVC paper |
|
11) Terms of payment : Irrevocable L/C at sight or T/T 50%as the deposit ,another 50% transfer to our account after showing the copy of lading bill. |
|
12)The common color of the steel is RAL 9002 Grey white color.vairious colors are available. The thickness of steel sheet are 0.35mm,0.4mm,0.45mm,0.5mm.The standard width of the panel is 1005mm.The thickness of PU is 50mm,75mm,100mm |
13)The minimum order is one 40HQ container. |
