Specifications

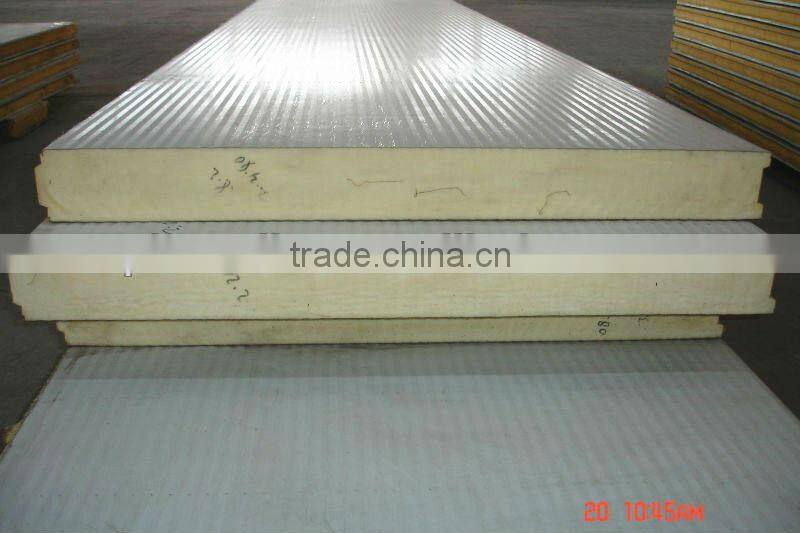

cold room panel1.take pu foam as core
2.double sided color steel
2.used for cold room for food or flower

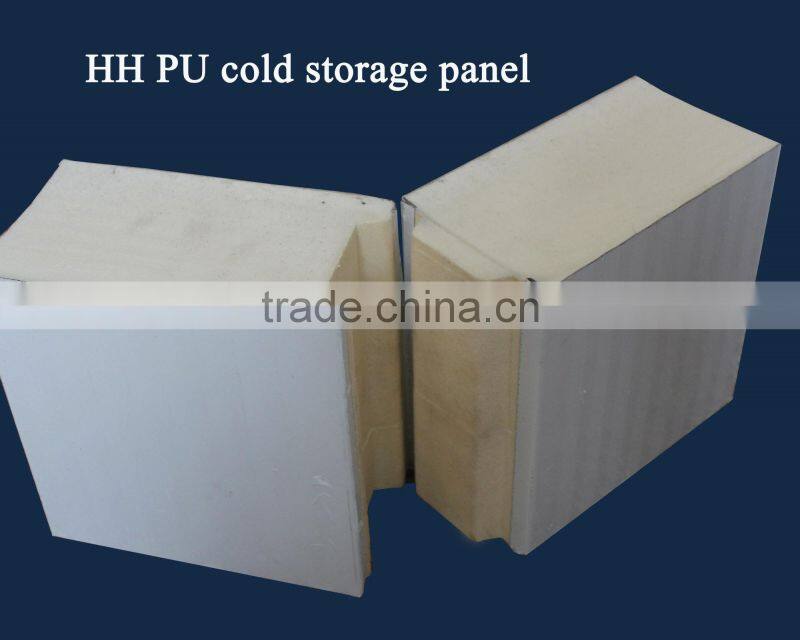

Cold Room Panel take PU/Polyurethane foam as core, both side with color steel.wich
is a new green materials, has passed ISO9001:2008 Quality Management System
Certification and ISO14001:2004 Environmental Management System Certification
and British BS 476 fireproof test, SGS.
Performance index of pu panel
Structure |
color metal + PU foam +color metal |
Covering metal thick |
0.4mm 0.5mm 0.6mm |
Length |
according to the customer request |
standard Width |
985/935mm |
Thickness |
50 75 100 120 150 180 200 220mm |
Pu foam density |
40-42kg/m3 |
Thermal conductivity |
0.022w/m.k |
Impact strength |
over 150 k pa |
Temperature range |
-200°C to 150°C |
Regular Steel Sheet Color Cold: RAL 9001(Grey White)
Applicationcold room panel
1.low temperature logistics distribution center of fresh and frozen food.
2.vegetables, fruits, cold storage and fresh and processing.
3.agricultural and flower storing.
4.vaccines,biological products, phamaceuticals, chemicals and others low temperature storage.
Advantage of cold room panel
1.good thermal insulation properties.
2.fire-proof, safe.
3.energy saving and environmental protection.
4.economic and beautiful.
5.quick and easy to install.
6.high strength
7.we will give you the best quality with the best price.
Main export countries and regions.
Our cold room panels have been exported to more than thirty countries and regions such as USA , Australia, Korea, Cyprus, Iran, Singapore, India, Thailand, Myanmar, Norway and Canada, Trinidad and Tobago,Peru,Japan, Guam, Ghana,Laos, UAE, Indonesia, Taiwan, Panama, Philippines, etc.
Cold room panel has been a new type of multi-purpose construction material. It is featured with temperature keeping, hot & sound insulation, water-proof and fire-resistant functions as well as light weight and decorative application. It is widely used as the wall or roof for industrial or residential buildings, such as cold storages, industrial workshops, prefabricated houses, etc.
We sincerely welcome all customers to contact us for business and cooperation.
