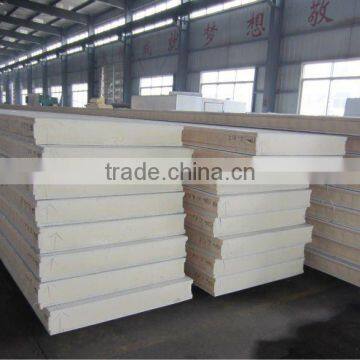

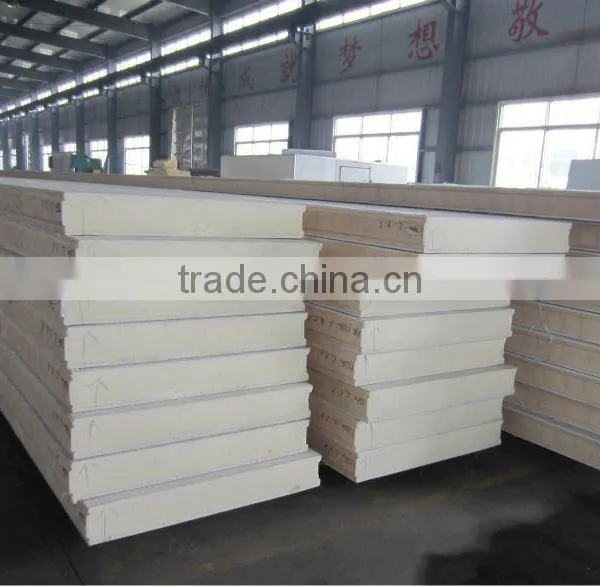

100mm thickness cold storage wall /roof panel
- 3000 Square Meter / Square Meters per Month
- Qingdao
- T/T D/P D/A
Product Details
Place of Origin: | Shandong, China | Brand Name: | HUAHAI | Model Number: | HHPUCOLD |
Panel Material: | Metal | Type: | Other, cold room |
Product Description
Specifications
pu cold storage wall1.width:985mm
2.thickness:50-200mm
3.good at heat insulation
4.pu sandwich panel for cold storage
polyurethane/pu cold storage panel
1).Density(kg/m³): Over 42 |
2).Impact Strength (Kpa): over 150. |
3).Water Absorption Rate:less than 0.118 |
4).Temperature Range: -200°C~+150°C Specs |
5).Heat Transfer Coefficient: <0.022 W/m*K; |
6). Cubic Area Change : <1% (-30 C-100 C/96h); |
7) .Have acquried "the Chinese Green Environmental Products" title |
8).Have passed ISO 9001:2000 Standard |
9)Delivery time :we brought in world-class continous line,we can produce 2000 squaremeters' panel everyday.always 7 days after receipt of deposit. |
10)Packing way :packing by good-quality Plastic paper |
11) Terms of payment : Irrevocable L/C at sight or T/T 50%as the deposit ,another 50% transfer to our account after showing the copy of lading bill. |
12) color of the steel is RAL 9002 Grey white color.vairious colors are available. The thickness of steel sheet are 0.35mm,0.4mm,0.45mm,0.5mm.The standard width of the panel is 985mm.The thickness of PU is 50mm,75nn,100mm,120mm,150mm,180mm,200mm. |
13)Panel thickness: 50mm/75mm/100mm/120mm/150mm/180mm/200mm |
