Properties

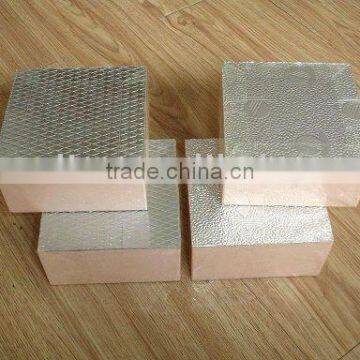

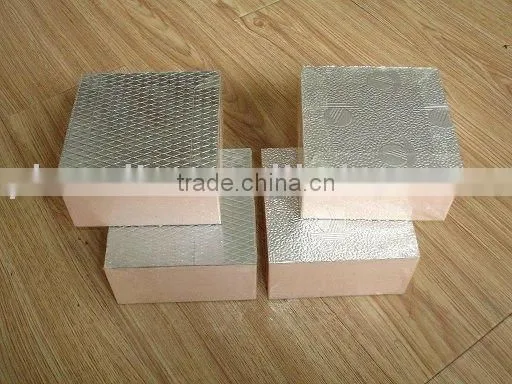

Rigid phenolic foam is made of rigid, high-density phenolic foam with a tough aluminum exterior that combines thermal and acoustical insulation in a structural board package, completely eliminating the need for expensive sheet metal duct. Phenolic insulation duct board is taking over as the choice for builders who face the volatile cost of sheet metal. Installers prefer Phenolic insulation duct board because it may be fabricated more quickly on-site. And, because duct board is readily available at stable prices, building owners can predict and control construction costs.
Advantages
- Proprietary production technology of phenolic resin.
- The aluminum foil and the colored steel is anticorrosion and antibacterial.
- The panel is flame retardant, carbonized when exposed to fire.
- Pioneered non-gel adhesion technology.
- The six-in-one structure is even stronger.
- The panel is formaldehyde-free, clean and environment-friendly;
- Zero ODP blowing technology.
Specification
ITEM |
UNIT |
SPECIFICATION |
Density |
kg/m3 |
60-70 |
Thermal Conductivity |
w/m.k |
0.025 |
Bending Strength |
Mpa |
1.05 |
combustion property |
~ |
Non-combustible Class A |
Water Absorption Rate |
% |
1.9 |
Max Smoke Density |
% |
2 |
Dimension Change Rate |
% |
0.3 |
Compressive Strength |
Mpa |
0.25 |
Service Temperature |
° C |
-250 - 150 |
Standard Size |
mm |
3900*1200*20 |
