Help CenterPhenolic Sandwich Panel
Related Products
Specifications

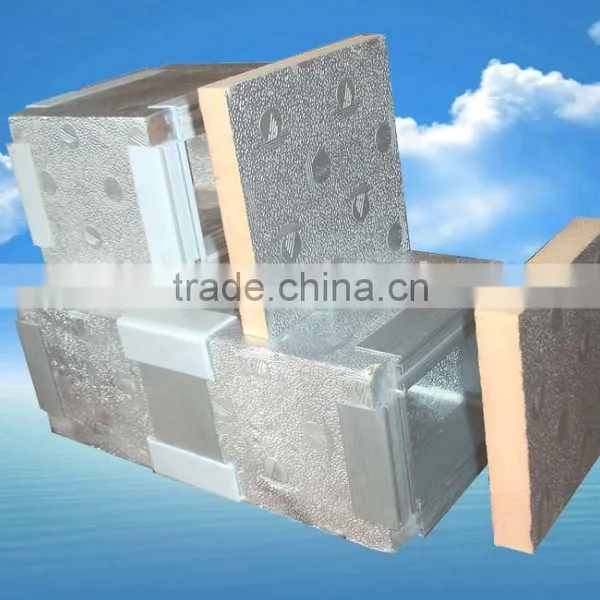

Phenolic Sandwich Panel is light in weight, cost ffective,reinforced with aluminum both sides. ISO9001,ISO14000 certificated.HH-TZA1 Phenolic Sandwich panel
Core materil: phenolic foam
Surface: aluminum foil
Technical Data Sheet Of Phenolic Foam air duct Panel | ||
Item |
Unit |
Spection |
Density |
Kg/m3 |
60-70 |
Double side Aluminum foil |
um |
80 |
Total sickness |
mm |
20/25/30 |
Thermal Conductivity |
W/m.k |
0.025 |
Bending Strength |
Mpa |
1.05 |
Non-Combustible |
--- |
Class “O”/ BS part 6&7 |
Water absorption |
% |
1.9 |
Max.Smoke Density |
% |
2 |
Dimention Change Rate |
% |
0.3 |
Compressing Strength |
Mpa |
1.05 |
Working Temperature |
C |
-150.C—150.C |
Standard Size |
mm |
3900x1200x20 |
The main feature is :
1 Our company has a number of proprietary intellectual property rights and strong independent power production .
2. Ultra strong anticorrosion bacteriostasis coating aluminum foil
3.Import assistant, optimized formula system
4. Germany import international sophisticated equipment
5. The lead technique production in domestic , Domestic unprecedented continuous compound without glue manufacturing technique
6. High strength "five –in- one" structure
7. Excellent flame retardant property , under the open fire this panel carbonization , does not blast open
Patent name : uses in resin low temperature foaming phenolics production making and method ;
Patent number :ZL00 11275.9
Application

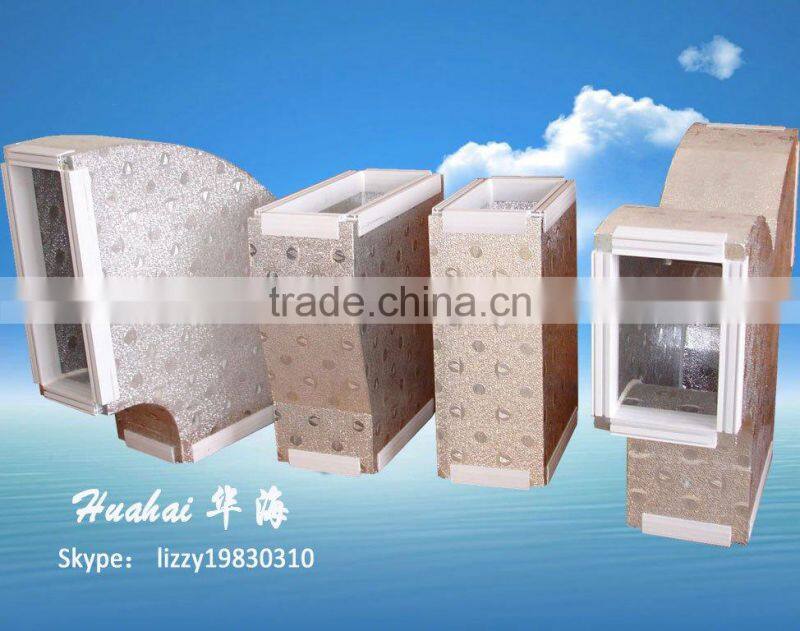

The air duct panel is an ideal material for the ventilation systems of central air conditioning units in hotels, apartments, hospitals, office buildings and other buildings.
