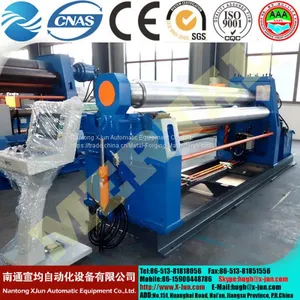

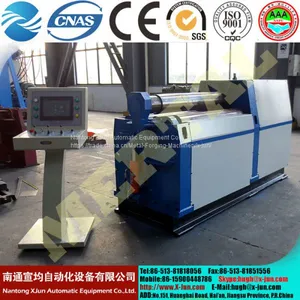

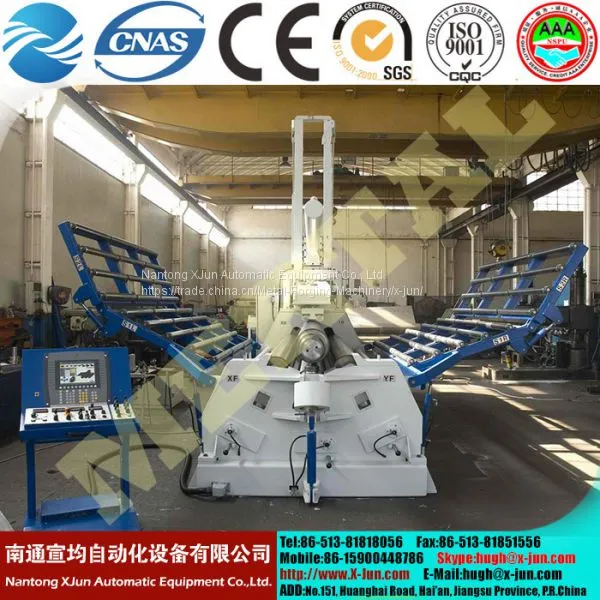

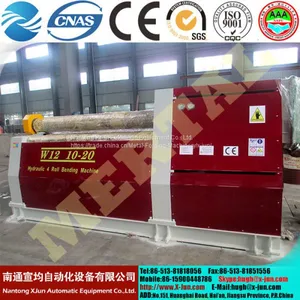

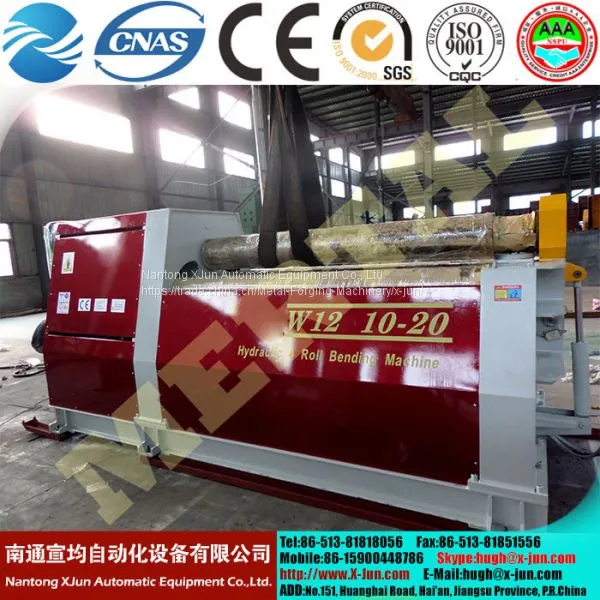

CE Cert Hydraulic W12 Hydraulic 4 Roller Plate Roll Bending Machine Veneer Reeling Machine

FOB Price

US$ 5000 - 100000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Mertal	Place of Origin	China
Model Number	12CNC-8X2000	Certification	ISO9001 CE
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	12 months
Weight	15tons	Dimension(LWH)	250015002000
Condition	New	Voltage	380V
Power(W)	15KW

Hydraulic CNC Four roller plate rolling machine

Superiority and some features usually only in large size plate rolling machine:

fully hydraulic-driven (as opposed to the usual manual and mechanical movement)

multiple independent hydraulic motor (as opposed to only one set of electric motors, reduction unit and gear)

automatic hydraulic line speed compensation (as distinct from inefficient clutch)

clamping pressure control (as opposed to holding without control)

Following users apply to use the machine

first use of the user, because this is one of the most easy-to-operate machine

operators lack of inspection requires high productivity,

increase profitability requires high accuracy,

improving quality want only one operator, reducing labor costs

due to the large size of the Board, production of high-or for security reasons require handling device

want to use CNC operations, reduce operational personnel action levels think factor

MCLW12HXNC Four roller plate rolling machine technical parameters
Model	Max pre-bending thickness(mm)	Max bending thickness(mm)	Diameter of upper roller(mm)	Max plate width(mm)	Main motor power(kw)
MCLW12-3x1500	2	3	135	1500	2.2
MCLW12-5x1500	3	5	190	1500	4
MCLW12-10x2000	8	10	240	2000	11
MCLW12-10x2500	8	10	260	2500	15
MCLW12-12x2000	10	12	260	2000	15
MCLW12-15x2000	12	15	265	2000	18.5
MCLW12-15x2500	12	15	280	2500	22
MCLW12-20x2000	16	20	300	2000	30
MCLW12-20x2500	16	20	340	2500	30
MCLW12-25x2500	20	25	390	2500	30+7.5
MCLW12-25x3000	20	25	420	3000	37+7.5
MCLW12-30x2500	25	30	420	2500	37+7.5
MCLW12-30x3000	25	30	460	3000	45
MCLW12-35x2500	30	35	460	2500	45
MCLW12-35x3000	30	35	510	3000	55
MCLW12-35x3500	30	35	550	3500	55
MCLW12-40x2500	35	40	510	2500	55
MCLW12-40x3000	35	40	550	3000	55
MCLW12-40x3500	35	40	560	3500	55+7.5
MCLW12-50x2500	45	50	560	2500	55+7.5
MCLW12-50x3000	45	50	605	3000	55
MCLW12-50x3500	45	50	640	3500	75
MCLW12-60x3000	50	60	670	3000	108.5
MCLW12-60x3500	50	60	700	3500	75
MCLW12-70x3000	65	70	720	3000	90
MCLW12-70x3500	65	70	760	3500	90
MCLW12-80x3000	70	80	780	3000	90
MCLW12-80x3500	70	80	840	3500	55*2
MCLW12-80x4000	70	80	870	4000	55*2
MCLW12-90x3000	80	90	810	3000	75*2
MCLW12-90x3500	80	90	890	3500	75*2
MCLW12-90x4000	80	90	925	4000	75*2
MCLW12-100x3000	85	100	850	3000	45*4
MCLW12-100x3500	85	100	925	3500	45*4
MCLW12-100x4000	85	100	960	4000	45*4
MCLW12-120x3000	100	120	940	3000	55*4
MCLW12-120x3500	100	120	980	3500	55*4
MCLW12-120x4000	100	120	1020	4000	55*4
MCLW12-140x3000	115	140	1000	3000	75*4
MCLW12-160x3500	130	160	1220	3500	90*4
MCLW12-180x3000	150	180	1280	3500	55*8
MCLW12-200x4000	160	200	1500	4000	75*8
