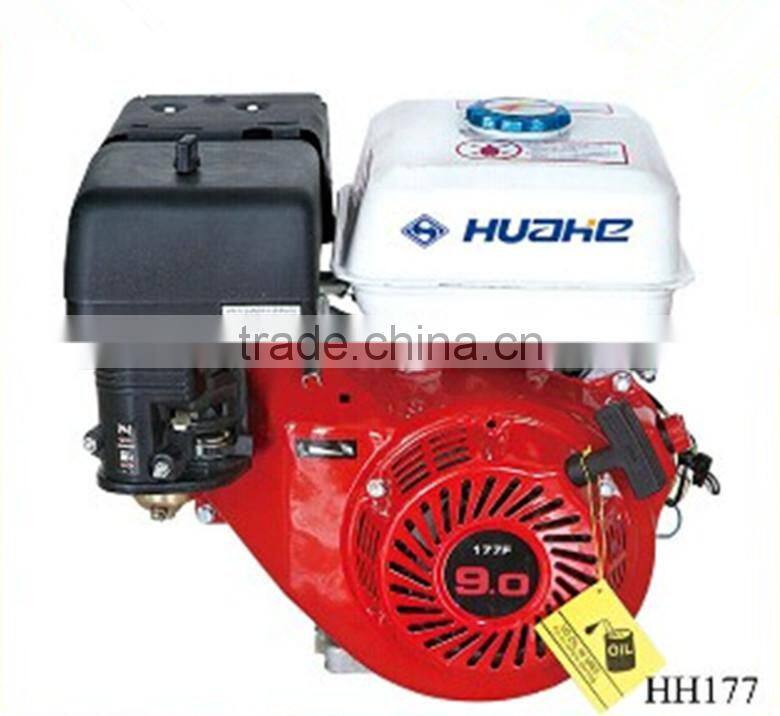

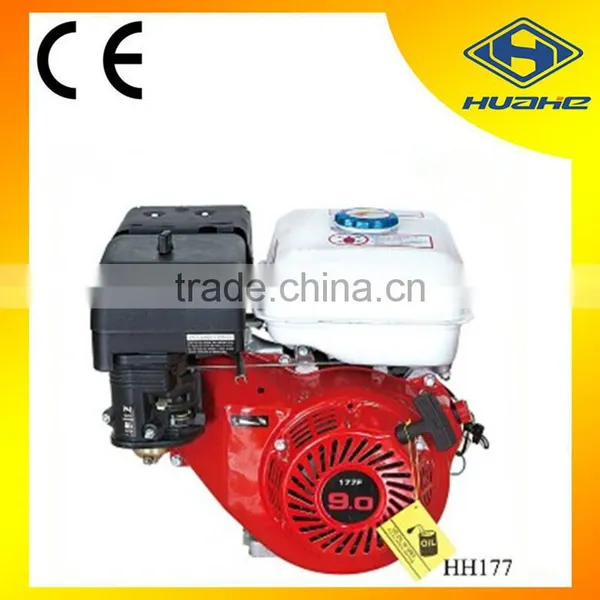

9 hp 177 Gasoline Engine,single Cylinder Air Cooled Gasoline Engine

Name: 9 hp 177 Gasoline Engine,single Cylinder Air Cooled Gasoline Engine
Brand: HUAHE
SKU: 143332652
Availability: InStock

Negotiable MOQ: 240 Units (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Usage:

Other, Generator, Water Pump, High Pressure Washer

Fuel:

Gasoline

Huahe Heavy Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, Generator, Water Pump, High Pressure Washer

Fuel Gasoline

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Air-cooled

Start Other, Recoil start

Place of Origin Zhejiang, China

Brand Name HUAHE

Model Number HH177

Dimension(L*W*H) 510mmx420mmx475mm

Weight 28kg

Certification ISO

9 hp 177 gasoline engine,single cylinder air cooled gasoline engine

Model	HH177
Engine type	Air cooled, 4 stroke, OHV single cylinder
Bore×Stroke	77mm×58mm
Displacement	270cc
Compression ratio	8.2:1
Max power output	9.0HP/3600 rpm
Max torque	16.7N.m/2500rpm
Ignition system	Non-contact transistorized ignition (TCI)
Start mode	Recoil start/Electric start
Air cleaner	Semi dry, oil bath, dual, double silent and cyclone type
Fuel tank capacity	6L
Fuel consumption	290g/HP-hour
Engine oil capacity	1.1L
Dimension(L×W×H)	510×420×475mm
Gross weight	28kg
Quantity 20GP	240pcs
Quantity 40HQ	625pcs
