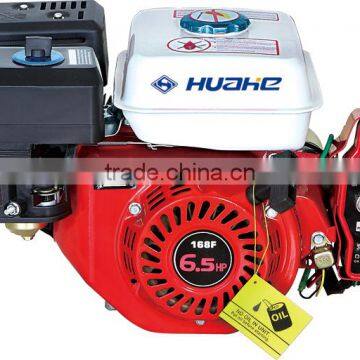

6.5hp Air Cooled Single Cylinder Gasoline Engine,efficiency Gasoline Engine

6.5hp Air Cooled Single Cylinder Gasoline Engine,efficiency Gasoline Engine thumbnail-1
6.5hp Air Cooled Single Cylinder Gasoline Engine,efficiency Gasoline Engine thumbnail-2
6.5hp Air Cooled Single Cylinder Gasoline Engine,efficiency Gasoline Engine photo-1
6.5hp Air Cooled Single Cylinder Gasoline Engine,efficiency Gasoline Engine photo-2
US$ 70 - 75 MOQ: 200 Units
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Generator, Water Pump, High Pressure Washer
Fuel:
Gasoline
Contact Supplier Request Quote Chat Now
Huahe Heavy Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, Generator, Water Pump, High Pressure Washer
Fuel Gasoline
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Other, Recoil start
Place of Origin Zhejiang, China
Brand Name HUAHE

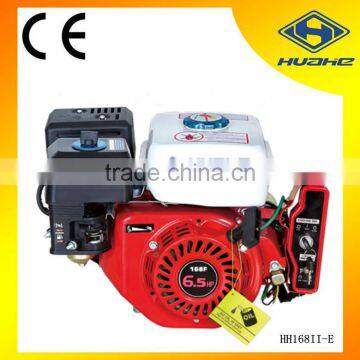

Model Number HH168II-E
Dimension(L*W*H) 380mmx355mmx340mm
Weight 15.5Kg
Certification ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

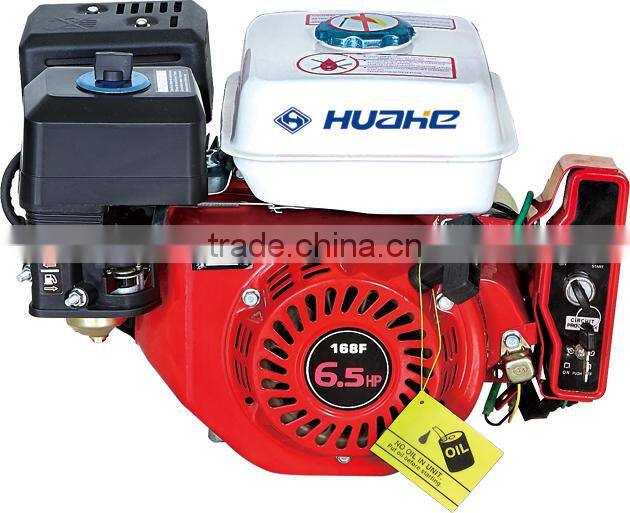

6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine























6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine















- Technical Data:



Model

HH168II-E

Engine type

Air cooled, 4 stroke, OHV single cylinder

Bore×Stroke

68mm×45mm

Displacement

196cc

Compression ratio

8.5:1

Max power output

6.5HP/3600 rpm

Max torque

10.8N.m/2500rpm

Ignition system

Non-contact transistorized ignition (TCI)

Start mode

Electric start

Air cleaner

Semi dry, oil bath, dual, double silent and cyclone type

Fuel tank capacity

3.6L

Fuel consumption

290g/HP-hour

Engine oil capacity

0.6L

Dimension(L×W×H)

380mm×325mm×340mm

Gross weight

14.5kg

Quantity 20GP

576pcs

Quantity 40HQ

1500pcs











Product Option







1.Strong, stable output power





2.Low fuel consumption





3.Reliable operation





4.Convenient start





5.High economic performance















- Factory Show

- Raw Material

6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine












- Assembly
6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine






- Packing
6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine











- Loading
6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine










- Certificate

6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine













- Sample Room


6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine












- Successive exhibition photos

6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine











- Welcome To Our Company
6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine

6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine6.5hp air cooled single cylinder gasoline engine,efficiency gasoline engine













0.65 kva - 720kva gasoline generator





Professional generator manufactrurer with R&D capacity





Reliable quality, reasonable price, desirable service





Tell us your demand, provide what you want





Contact us now, let's make a deal.........
