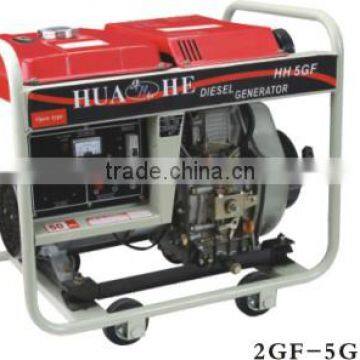

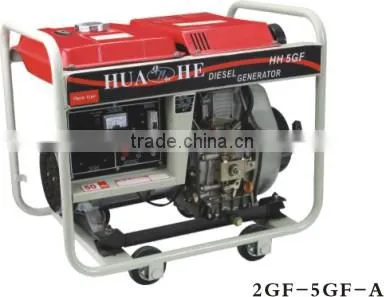

diesel generator welding machine,welding machine (diesel engine) with generator
Brief Introduction:
1. With 24 years' manufacture & sales experience, we prefer LONG-TERM COORPORATION WITH YOU!
2. Main Product Lines:
a.Gasoline Generator Series: 0.65--5KW ,gasoline engine, recoil or electric start.OEM Offered . CE certificates.
b.Diesel Generator Series: 2--720KW. CE certificates.
c.Engine Series : 168,168F,170F,177F,182,188F.CE certifications.
d.Water Pump Series: 1.5‘,2',3', 4' Water pumps. CE certificates.
e.Pressure Washer Series: 2--10HP. diesel/ gasoline pressure washer.CE certificates.
f. Tiller Series: Garden,small farm,large field,ect.
g.IC Forklift Series
h.Electric Pallet Truck Series
i.Electric Stacker Series
j.Accessories:OEM Offered .
Discription Of Product
| Model | Economical type | Luxury type | Silent type | ||||||||||||||
| 2GF-L | 3GF-L | 5GF-L | 2GF-LH(E) | 3GF-LH(E) | 5GF-LH(E) | 3GF-LDE | 5GF-LDE | ||||||||||
| GENERATOR | Type | Revolving field type 2 pole generator | |||||||||||||||
| Frequency(HZ) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
| Cont.Output(KW) | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 2.8 | 3.3 | 4.2 | 5 | |
| Voltage(A.C)(V) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 260 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | |
| Current(A.C)(A) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | |
| Engine Speed(r/min) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Phase | Single phease | ||||||||||||||||
| Power factor(COS) | 1 | ||||||||||||||||
| Excitation system | Controlled Constant Self-excitation | ||||||||||||||||
| D.C output V/A | 12V/8.3A | ||||||||||||||||
| Operation Capacity | 12 hour Constant Operation | ||||||||||||||||
| Coupling Pattern | Straight shaft coupling | ||||||||||||||||
| Model | 170FG | 178FG | 186FG | 170FG(E) | 178FG(E) | 186FG(E) | 178FG(E) | 186FG(E) | |||||||||
| ENGINE | Type | Direct injection Vertical,4-cycle,air-cooled diesel engine | |||||||||||||||
| Displacement(cu.in) | 211(12.88) | 296(18.06) | 406(24.78) | 211(12.88) | 296(18.06) | 406(24.78) | 296(18.06) | 406(24.78) | |||||||||
| Max.output(KW/rpm) | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 4.4 | 4.6 | 6.6 | 7.35 | |
| Cont.output(KW/rpm) | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 4 | 4.4 | 5.9 | 6.6 | |
| Starting system | Recoil | LE:Electric LH:Recoil | Electric | ||||||||||||||
| Governor system | Centrfugal weight system | ||||||||||||||||
| Fuel | Diesel Light fuel(BS-AL or equivalent) | ||||||||||||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | 7.5 | 13.55 | 15 | 13.5 | 16 | |||||||||
| Lube oil capacity(L) | 0.8 | 1.1 | 1.65 | 0.8 | 1.1 | 1.65 | 1.1 | 1.65 | |||||||||
| Bore x Stroke(mm) | 70×55 | 78×62 | 86×70 | 70×55 | 78×62 | 86×70 | 78×62 | 86×70 | |||||||||
| Protection System | Low oil,Warning System/Stop Device(not for L-series) | ||||||||||||||||
| UNIT | Noise level at 7m dB(A) | 79 | 82 | 85 | 79 | 82 | 85 | 70 | |||||||||
| Dimensions(L×W×H)mm | 575×400×500 | 640×480×530 | 720×480×580 | 575×400×500 | 640×480×530 | 720×480×580 | 840×520×640 | 905×520×680 | |||||||||
| Dry weight(kg) | 46 | 61 | 95 | LE:70LH:65 | LE:85LH:80 | LE:100LH:95 | 126 | 165 | |||||||||
Product Option
1.High thermal efficiency
2.Reliable and durable
3.Less harmful emissions
Factory Show
Packing
Loading
Certificate
Remarks: We can offer the OEM/ODM/Drop shipping service,can put your own brand or provide your design and tech pack to us,we make sample as your request.
As the price is quite different for your order quatities,before you place an order,pls be kindly to negotiate with us for the latest pirce!Thank you.
