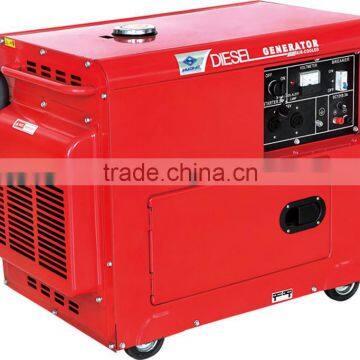

5kva silent diesel generator price,air-cooled 186f diesel generator
Technical data
Model |
Silent type |
||
5GF | |||
|
Generator
|
Type |
Revolving field type 2 pole generator |
|
Frequency (Hz) |
50 |
60 |
|
Cont. Output (KW) |
4.2 |
5 |
|
Voltage (A.C)(V) |
230 |
240 (120) |
|
Current (A.C)(A) |
18.3 |
20.8 (41.7) |
|
Engine speed (r/min) |
3000 |
3600 |
|
Phase |
Single phase |
||
Power factor (COSΦ) |
1 |
||
Excitation system |
Controlled constant self-excitation |
||
D.C output V/A |
12V/8.3A |
||
Operation capacity |
12 hour constant operation |
||
Coupling pattern |
Straight shaft coupling |
||
Model |
186FG(E) |
||
|
Engine
|
Type |
Direct injection vertical, 4-cycle, air-cooled diesel engine |
|
Displacement cc (cu.in) |
406 (24.78) |
||
Max. output (KW/rpm) |
6.6 |
7.35 |
|
Cont. output (KW/rpm) |
5.9 |
6.6 |
|
Starting system |
Electric start |
||
Governor system |
Centrifugal weight system |
||
Fuel |
Diesel light fuel (BS-AL or equivalent) |
||
Fuel tank capacity (L) |
16 |
||
Lube oil capacity (L) |
1.65 |
||
Bore×Stroke |
86×75 |
||
Protection system |
Low oil, warning system/Stop device (not for L-series) |
||
|
Unit
|
Noise level at 7m dB (A) |
770 |
|
Dimension (L×W×H) (mm) |
950×580×740 |
||
Dry weight (kg) |
157 |
||
About us
Established in 2001, Zhejiang New Huahe General Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of forklift, generators, high pressure washer,water pumps, carriers, bumpers, motorcycle carriers and WHD series electric slide vehicles. All of our products comply with ISO9001 and are currently being shipped to Japan, America, Europe and Southeast Asia.
We have over 300 employees and an annual sales figure that exceeds USD10,000,000. In addition, our experienced R&D team actively expands our product range to meet changing market trends and we welcome OEM orders.The company has all kins of generators, water pumps, high pressure washer, cutter, large punch machine, CNC machining center, large painting machine and other testing equipments, which ensures perfect quality of each forklift from HUAHE.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Company Information
Assembly Line
Certificates
Packaging & Delivery
Packaging Detail: packed in strong carton, If you have special requirements, we will follow your request
Delivery Detail: in 15 days
Main Markets
Most of our machine exported to European Union ,Middle Easet ,Africa,South & East asian countries and regions
HUAHE, is trustworthy!
- We inspect every machine before packing.
- All orders are shipped directly from our warehouse.
- Welcome to contact us if you have any question before you make an order.
- We will inform you and tracking for you in time after shipped the order.
- Feel free to contact us if you have any problem to use the machine when you received it.
