Specifications

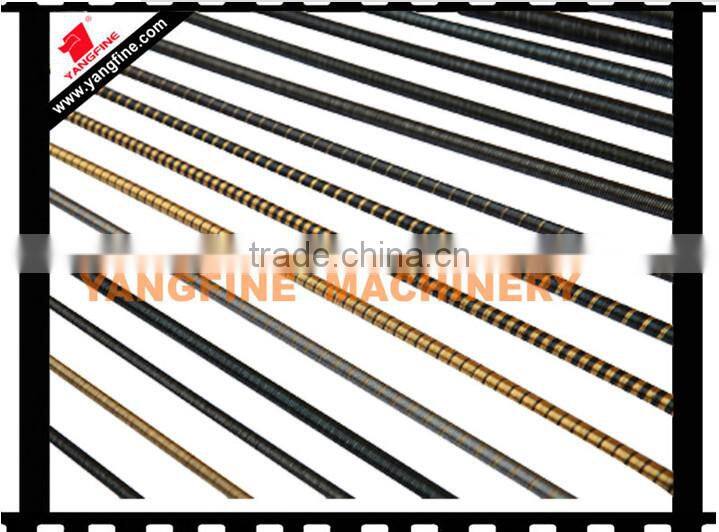

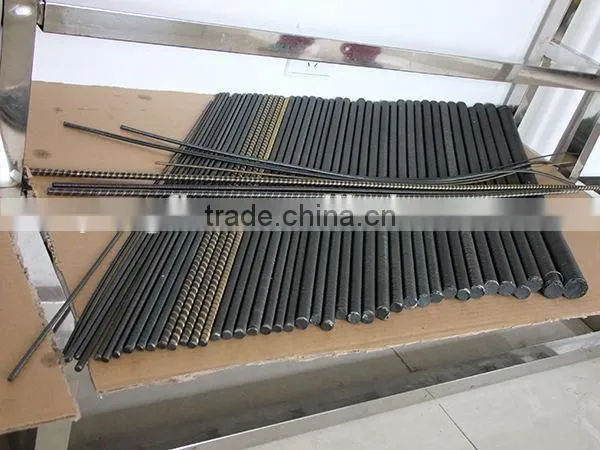

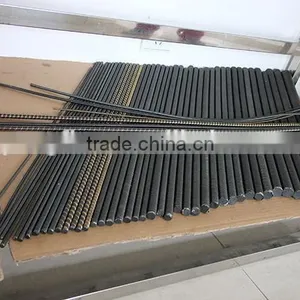

concrete vibrator shaft1.stable operation,
2.low noise,
3.good anti-wear performance,
4.low working costs
technical specification
| Model | Vibrator Head Diameter*Length | Vibrating Frequency | Rotational Speed | Vibrating Amplitude | Dia. Flexible hose | Dia. Flexible shft | Length | Weight |
| YFMS-28 | 28mm*450mm | 12,000-14,000 VPM | 3000-3600 | 1mm | 25mm | 8mm | 6m(5m-8m) | 12kg |
| YFMS-32 | 32mm*450mm | 1.1mm | 30mm | 10mm | 13.5kg | |||
| YFMS-38 | 38mm*450mm | 1.6mm | 30mm | 10mm | 15.5kg | |||
| YFMS-45 | 45mm*500mm | 2mm | 30mm | 10mm | 16.5kg | |||
| YFMS-60 | 60mm*500mm | 2.4mm | 32mm | 13mm | 23.5kg |
Certifications:
European CE,ISO 9001:2000,PRC IMPORT&EXPORT enterprise competency certificate,certificate issued BY CCPIT
About our company:
Liaocheng Yangfine Jeonil machinery Co.,Ltd, is an enterprise that specializes in the R&D of light construction machinery. We invest a lot time and effort in developing the concrete vibrator,driving motors ,water pump,flexible shaft,etc. we have more than ten years producting experience in the light construction machinery.
Our advantage:
1. can be coupled to electric motors,,gasoline engines,diesel engines,flexible shaft pumps
2. no mini order demads
3. can supply OEM service with your own logo
4. can send sampales for testing in advance, welcome to visit factory warmly
5. can supply the most competitive price with the high quality for you: all flexible shafts c/w rubber
hoses and all connectors for concrete vibrators,are manufactured by ourselves
6. can supply or assemble the semi-products concrete vibrator for you.
After sale service:
1. within 3 months,if there is some accesorry going wrong,we will send you the accessory at once,free of charge or deliver the spare in the next order
2. in the period guarantee,we change the defective parts(but the wearing parts)for free in the condtion that the users comply the rules of transportation,storage and using,if the vibrator is broken or can not be working well.
3. no responsibility for man-made destroy.
4. If the buyer has any questions from our technical department, we can supply on-line service.
