Hot Sell Flexible Shaft,Made in Liaocheng
- Qingdao
- T/T D/P D/A Credit Card
You May Like
Product Details
| Structure | Flexible | Material | Other, stainless steel, carbon steel | |
| Coatings | Other, rubber | Torque Capacity | 160N.M | |
| Length | Customers' Request | Model Number | YF | |
| Place of Origin | Shandong, China | Brand Name | Yangfine |
Product Description
We can accept all the special customized products
Technical Specifications

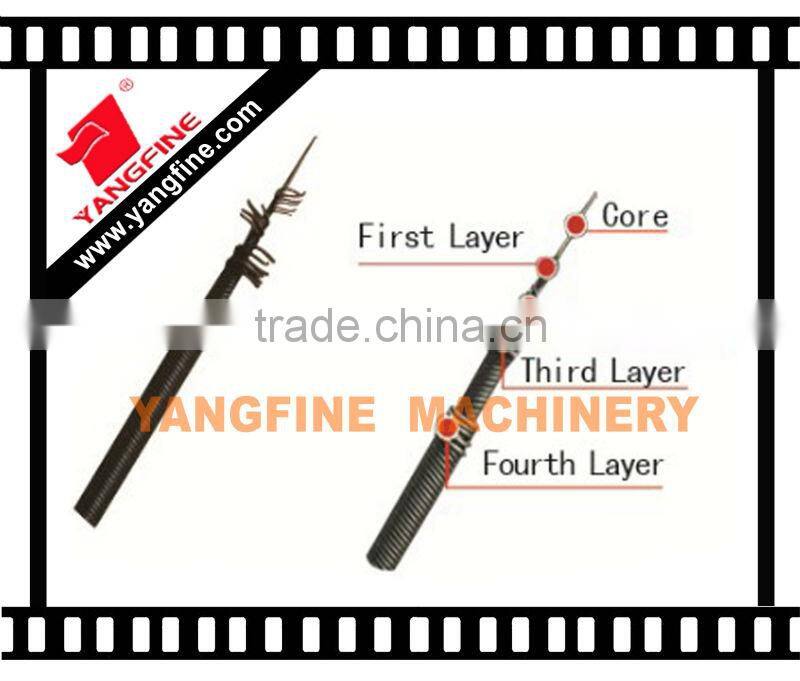

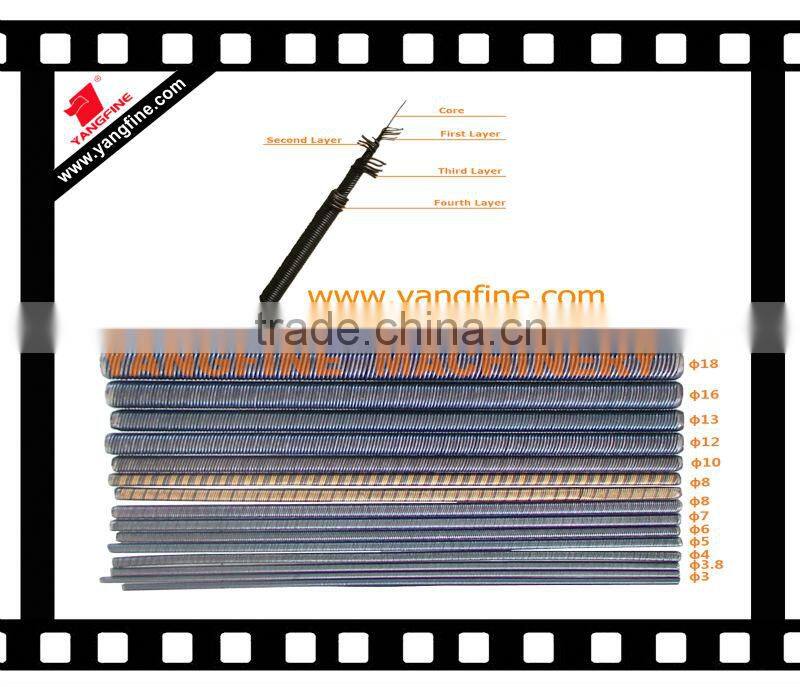

Diameter (mm) | Tolerance (mm) | Number of Layers | Loading Moment | Weight | |
2.0 | +0.02 | 3/5 | 0.8 | 1.8 | |
2.5 | 3/5 | 1.0 | 2.8 | ||
3.2 | 3/5 | 1.3 | 4.6 | ||
3.8 | 3/5 | 1.5 | 6.5 | ||
5.0 | +0.00 | 3/4/5 | 1.8 | 11.3 | |
6.0 | 3/4/5 | 2.4 | 16.2 | ||
6.5 | 4/5/7 | 2.9 | 18.7 | ||
8.0 |
| 4/5/6/7 | 7.5 | 28.8 | |
10 | 4/5/6/7 | 22.5 | 45.5 | ||
12 | 4/5/6/7 | 39.0 | 66.5 | ||
13 | 4/5/6/7 | 50.5 | 77.5 | ||
16 | 4/5/6/7 | 115.0 | 114 | ||
18 | 4/5/6/7 | 160 | 145 | ||
The flexible shafts not listed in the chart can be customized | |||||
Our services
1.Welcome to visit factory warmly. can send samples for testing in advance.
2.can supply OEM service with your own logo.
3.Supply high quality & the most competitive price for you,all flexible shafts c/w rubber hoses and all connectors for concrete vibrators, are manufactured by ourselves .
4.can supply or assemble the semi-products concrete vibrator for you.
5.We Have Professional Skills,To provide users with high-quality technical services
6.Can Supply all kinds of coupling,can be coupled to electric motors,,gasoline engines,diesel engines.
7.Safer operation , wider application .
8.Our products have passed ISO900,CE, CCC certifications, etc, and the quality is internationally recognized.
Special recommendation

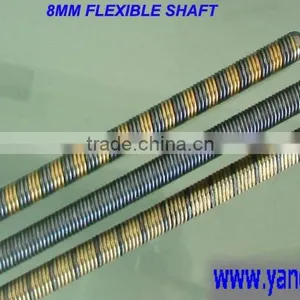

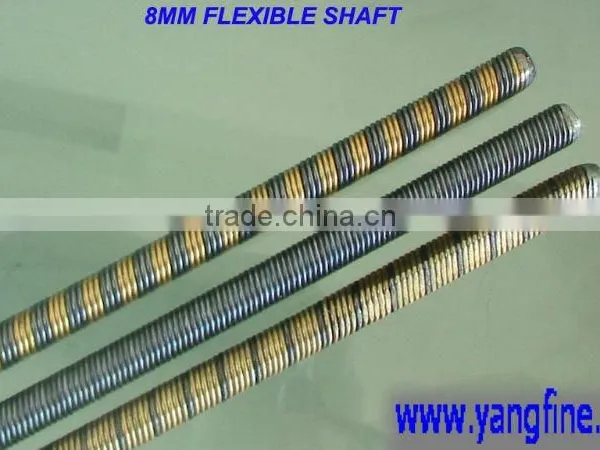

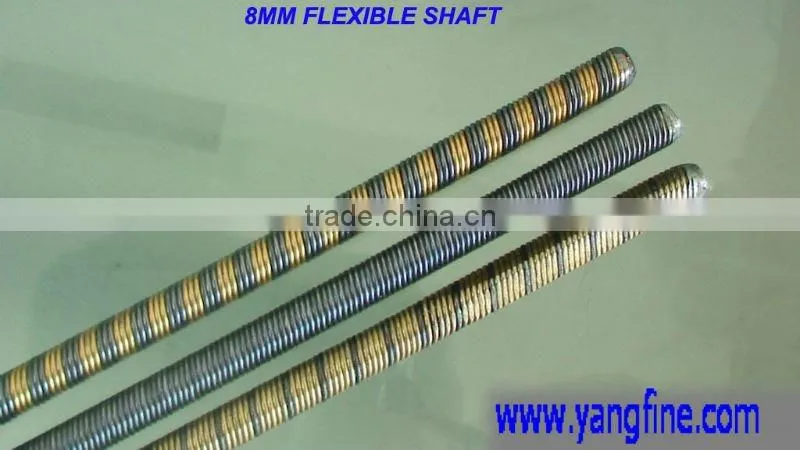

6MM,8MM,10MM,13MM FLEXIBLE SHAFT
IF YOU INTERESTED IN OUR PRODUCT,PLEAES DO NOT HESITATE TO LETME KNOW,I WILL ENCLOSE THE ILLUSTATE CATALOG AND THEATEST PRIC ELIST.
TEL: 0086-0635-2921122 Skype:yangfine02
QQ: 3516613042

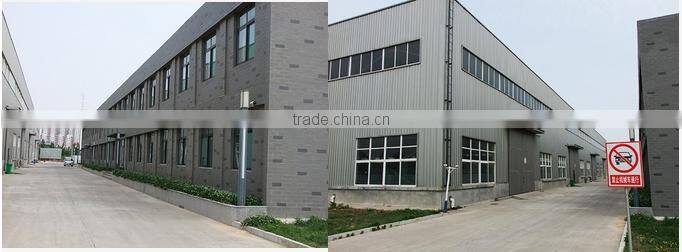

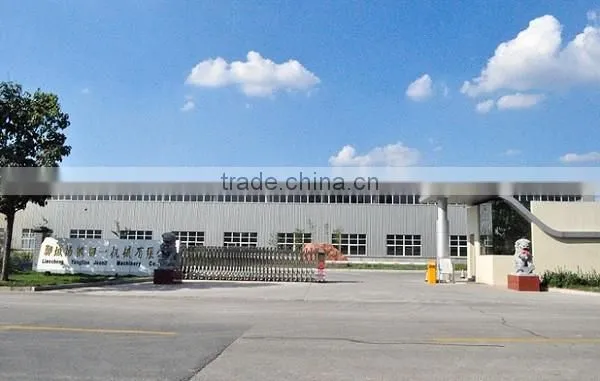

Factory
