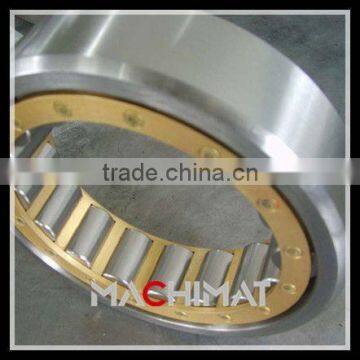

NU1022M Hot Sale Bearing Cylindrical Roller Bearing

NU1022M Hot Sale Bearing Cylindrical Roller Bearing thumbnail-1
NU1022M Hot Sale Bearing Cylindrical Roller Bearing photo-1
US$ 2 - 10,000 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Neutral
Bore Size:
110,
Outside Diameter:
170,
Contact Supplier Request Quote Chat Now
Shenyang Hoperising Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Neutral
Bore Size 110,
Outside Diameter 170,
Model Number NU1022M
Number of Row Single Row

Professional bearing manufacturer in China supply you with high quality and economical price bearings:

1.      Spherical Roller Bearings

2.      Cylindrical Roller Bearings

Double-row Cylindrical Roller Bearings

Single-row Cylindrical Roller Bearings

Single-row Full-complement Cylindrical Roller Bearings

Double-row Full-complement Cylindrical Roller Bearings

Four Row Cylindrical Roller Bearings

Split Single Row Cylindrical Roller Bearings

3.      Tapered Roller Bearings

Inch Single-row Tapered Roller Bearings

Inch Double-row Tapered Roller Bearings

Double-row Tapered Roller Bearings

Inch Four-row Tapered Roller Bearings

Four-row Tapered Roller Bearings

4.      Deep Groove Ball Bearings

5.      Angular Contact Ball Bearings

6.      Thrust Spherical Roller Bearings

7.      Lazy Susan Bearings



FEATURES:

Lower speed than the ball bearing with the same dimension

High precision

Low noise and small vibration

Mainly withstand radial load

Can withstand a little axial load if outer ring and inner ring have ribs



Cylindrical Roller Bearings:

In bearings of this type, the cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds.

There are different types designated as NU, NJ, NUP, N, NF (for single-row bearings), NNU, and NN (for double-row bearings depending on the design or absence of side ribs).

The outer and inner rings of all types are separable.





Bearing Item Dimension(mm)
NEW OLD d D B rmin rlmin Ew Fw
N1016/C4YA4 C4G2116K 80 125 22 1.1 1 115.5 　
N1017M 2117H 85 130 22 1.1 1 118.5 　
N1018M 2118H 90 140 24 1.5 1.1 127 　
NU1018M 32118H 90 140 24 1.5 1.1 　 103
N1019M 2119H 95 145 24 1.5 1.1 132 　
NU1019M 32119H 95 145 24 1.5 1.1 　 108
NJ1019M 42119H 95 145 24 1.5 1.1 　 108
NU1020M 32120H 100 150 24 1.5 1.1 　 113
N1022M 2122H 110 170 28 2 1.1 155 　
NU1022M 32122H 110 170 28 2 1.1 　 125
N1024M 2124H 120 180 28 2 1.1 165 　
NU1024M 32124H 120 180 28 2 1.1 　 135
NJ1024M 42124H 120 180 28 2 1.1 　 135
NF1026M 12126H 130 200 33 2 1.1 182 　
N1026M 2126H 130 200 33 2 1.1 182 　
NU1026M 32126H 130 200 33 2 1.1 　 148
NJ1026M 42126H 130 200 33 2 1.1 　 148
NF1028M 12128H 140 210 33 2 1.1 　 158
N1028M 2128H 140 210 33 2 1.1 192 　
NU1028M 32128H 140 210 35 2 1.1 　 158
NJ1028M 42128H 140 210 33 2 1.1 　 158
NU1030M/YA4 32130H 150 225 35 2.1 1.5 　 168
NJ1030M/YA4 42130H 150 225 35 2.1 1.5 　 168
NU1032M 32132H 160 240 38 2.1 1.5 　 180
NJ1032M 42132H 160 240 38 2.1 1.5 　 180
NU3034M 3032134H 170 260 67 3.5 3.5 　 192
NU1034M/YA4 32134H 170 260 42 2.1 2.1 　 192
NJ1032M/YA4 42134H 170 260 42 2.1 2.1 　 192
NU1036M 32136H 180 280 46 2.1 2.1 　 205
N036M 7002136H 180 280 31 2 2 250 　
N036L 7002136LE 180 280 31 2 2 250 　
NU1038M/YA4 32138H 190 290 46 2.1 2.1 - 212
NF1040M/YA4 12140H 200 310 51 2.1 2.1 283 　
N1040M/YA4 2140H 200 310 51 2.1 2.1 283 　
NU1040M/YA4 32140H 200 310 51 2.1 2.1 　 227
NJ1040M/YA4+HJ1040 52140H 200 310 51 2.1 2.1 　 227
NJ1040M/YA4 42140H 200 310 51 2.1 2.1 　 227
NU1044M 32144H 220 340 56 3 3 　 250
NU1044Q4/S0 32144QT 220 340 56 3 3 　 250
NJ1044M 42144H 220 340 56 3 3 　 250
NU1048M 32148H 240 360 56 3 3 　 270
N1052M 2152H 260 400 65 4 4 364 　
NU1052M 32152H 260 400 65 4 4 　 296
NUP1052M 92152H 260 400 65 4 4 　 296
NU1056M 32156H 280 420 65 4 4 　 316
NU1060 32160 300 460 74 4 4 　 340
NJ1060 42160 300 460 74 4 4 　 340





NU1022M hot sale bearing cylindrical roller bearingNU1022M hot sale bearing cylindrical roller bearingNU1022M hot sale bearing cylindrical roller bearing
