Shenyang Hoperising Trading Co., Ltd.: Shenyang, Liaoning, China; Main products: Bearing, Slewing Ring, Lazy susan turntable, Pellet Mill, Electric Tools

Home > Products > Bearing > Cylindrical Roller Bearing NU312 NU312

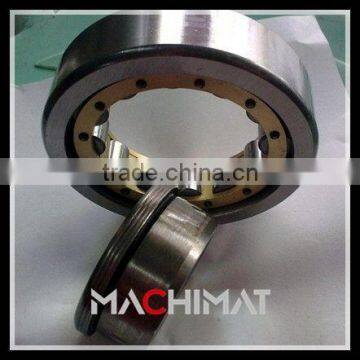

Cylindrical Roller Bearing NU312 NU312

FOB Price

US$ 2 - 10,000 / Piece

10 Pieces(Min. Order)

Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Neutral	Bore Size	60,
Outside Diameter	130,	Model Number	NU312
Number of Row	Single Row

Product Description

Professional bearing manufacturer in China supply you with high quality and economical price bearings:

1. Spherical Roller Bearings

2. Cylindrical Roller Bearings

Double-row Cylindrical Roller Bearings

Single-row Cylindrical Roller Bearings

Single-row Full-complement Cylindrical Roller Bearings

Double-row Full-complement Cylindrical Roller Bearings

Four Row Cylindrical Roller Bearings

Split Single Row Cylindrical Roller Bearings

3. Tapered Roller Bearings

Inch Single-row Tapered Roller Bearings

Inch Double-row Tapered Roller Bearings

Double-row Tapered Roller Bearings

Inch Four-row Tapered Roller Bearings

Four-row Tapered Roller Bearings

4. Deep Groove Ball Bearings

5. Angular Contact Ball Bearings

6. Thrust Spherical Roller Bearings

7. Lazy Susan Bearings

FEATURES:

Lower speed than the ball bearing with the same dimension

High precision

Low noise and small vibration

Mainly withstand radial load

Can withstand a little axial load if outer ring and inner ring have ribs

Cylindrical Roller Bearings:

In bearings of this type, the cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds.

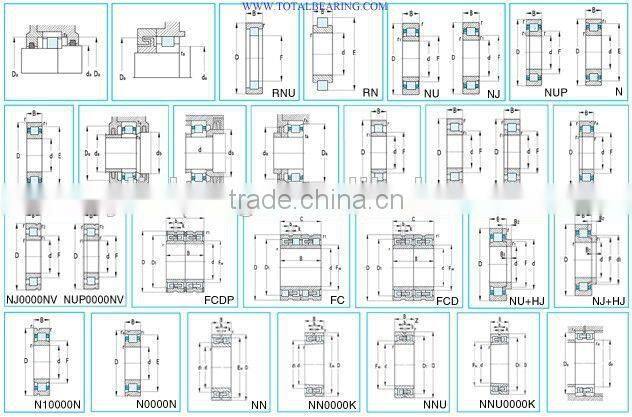

There are different types designated as NU, NJ, NUP, N, NF (for single-row bearings), NNU, and NN (for double-row bearings depending on the design or absence of side ribs).

The outer and inner rings of all types are separable.

Bearing Item		Dimension(mm)
NEW	OLD	d	D	B	rmin	rlmin	Ew	Fw
N1016/C4YA4	C4G2116K	80	125	22	1.1	1	115.5
N1017M	2117H	85	130	22	1.1	1	118.5
N1018M	2118H	90	140	24	1.5	1.1	127
NU1018M	32118H	90	140	24	1.5	1.1		103
N1019M	2119H	95	145	24	1.5	1.1	132
NU1019M	32119H	95	145	24	1.5	1.1		108
NJ1019M	42119H	95	145	24	1.5	1.1		108
NU1020M	32120H	100	150	24	1.5	1.1		113
N1022M	2122H	110	170	28	2	1.1	155
NU1022M	32122H	110	170	28	2	1.1		125
N1024M	2124H	120	180	28	2	1.1	165
NU1024M	32124H	120	180	28	2	1.1		135
NJ1024M	42124H	120	180	28	2	1.1		135
NF1026M	12126H	130	200	33	2	1.1	182
N1026M	2126H	130	200	33	2	1.1	182
NU1026M	32126H	130	200	33	2	1.1		148
NJ1026M	42126H	130	200	33	2	1.1		148
NF1028M	12128H	140	210	33	2	1.1		158
N1028M	2128H	140	210	33	2	1.1	192
NU1028M	32128H	140	210	35	2	1.1		158
NJ1028M	42128H	140	210	33	2	1.1		158
NU1030M/YA4	32130H	150	225	35	2.1	1.5		168
NJ1030M/YA4	42130H	150	225	35	2.1	1.5		168
NU1032M	32132H	160	240	38	2.1	1.5		180
NJ1032M	42132H	160	240	38	2.1	1.5		180
NU3034M	3032134H	170	260	67	3.5	3.5		192
NU1034M/YA4	32134H	170	260	42	2.1	2.1		192
NJ1032M/YA4	42134H	170	260	42	2.1	2.1		192
NU1036M	32136H	180	280	46	2.1	2.1		205
N036M	7002136H	180	280	31	2	2	250
N036L	7002136LE	180	280	31	2	2	250
NU1038M/YA4	32138H	190	290	46	2.1	2.1	-	212
NF1040M/YA4	12140H	200	310	51	2.1	2.1	283
N1040M/YA4	2140H	200	310	51	2.1	2.1	283
NU1040M/YA4	32140H	200	310	51	2.1	2.1		227
NJ1040M/YA4+HJ1040	52140H	200	310	51	2.1	2.1		227
NJ1040M/YA4	42140H	200	310	51	2.1	2.1		227
NU1044M	32144H	220	340	56	3	3		250
NU1044Q4/S0	32144QT	220	340	56	3	3		250
NJ1044M	42144H	220	340	56	3	3		250
NU1048M	32148H	240	360	56	3	3		270
N1052M	2152H	260	400	65	4	4	364
NU1052M	32152H	260	400	65	4	4		296
NUP1052M	92152H	260	400	65	4	4		296
NU1056M	32156H	280	420	65	4	4		316
NU1060	32160	300	460	74	4	4		340
NJ1060	42160	300	460	74	4	4		340
