Solar Powered Single Swing Gate Motor

Specifications

Solar Powered Single Swing Gate Motor

1. Features:

• Supports gate leafs up to 300kg 660lb or 10 feet (3.0m)
• Dual Gate Opener opens 2 leafs 24 feet or 1320lbs
• Battery Backup for power outages
• Keypad Interface
• Double Button Interface
• Optional Infrared Safety Beam Interface
• Supports up to 6 Remotes, 2 included.
• Rolling Code plus factory code, prevents thieves.
• Auto-Close Feature
• Optional electric lock
• Push to Open or Pull to Open (need PSO part)
• Self Learning Opening / Closing Limit Capability
• Manual Key Release for Emergencies
• Self-locking and reversible gear motor
• Water-proof design
• Adjustable output thrust
• Built-in micro-switches for gate opening arrest
• Relay Coil Voltage: DC 24V
• Easy installation, full fitting accessories are provided with motor kits
• Operator can be post mounted inside gate and gate leaf direction can be both inward or outward.
• Adjustable auto-close child safety obstruction sensitivity and dual gate operable sequence.
• Power Supply: AC 240V
• Motor power 80W/arm
• Electronic Lock: DC 24V A
• Operating Time: 12 seconds ~ 100 seconds
• Control panel with interface for photocells, loop detector, IC card reader & alarm lamp,  and Keypad
• Weight of Control Box: 4.4. lbs. (2.5Kg)
• Time-Delay protection
• Extremely quiet Overheat and over-current protection

2. Technical Data

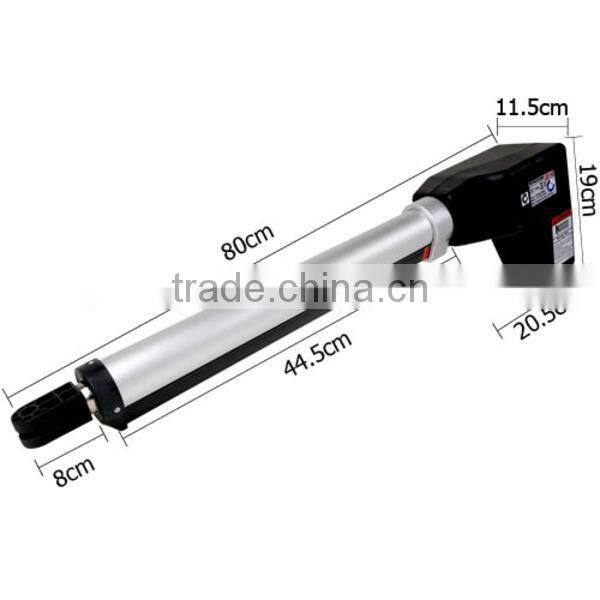

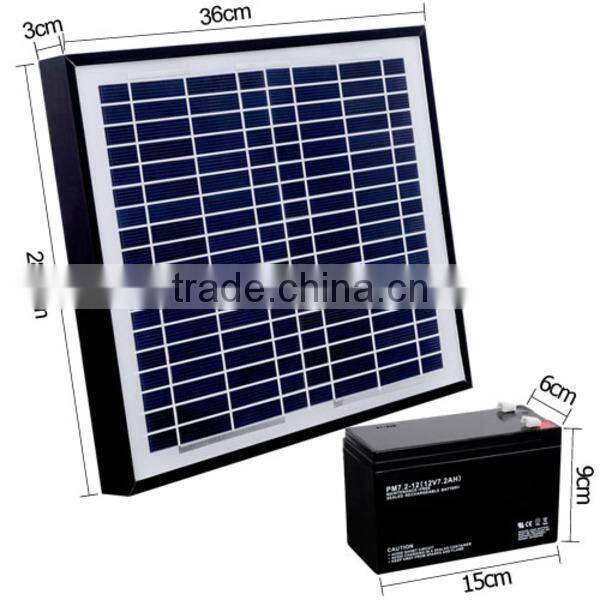

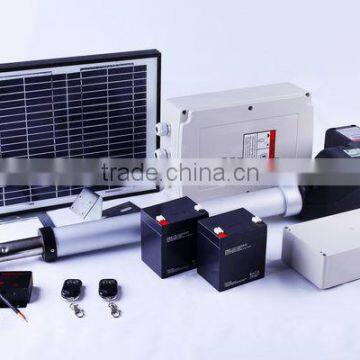

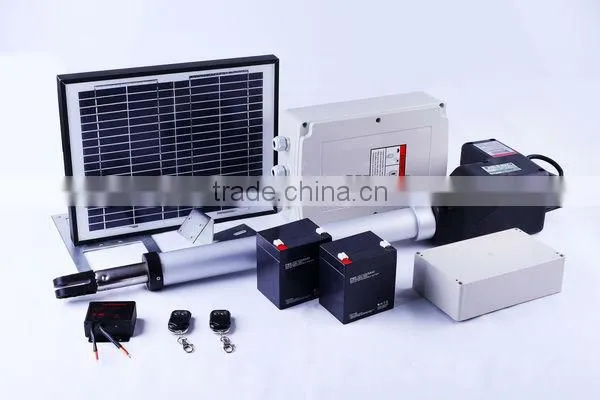

3. Picture for referece:
