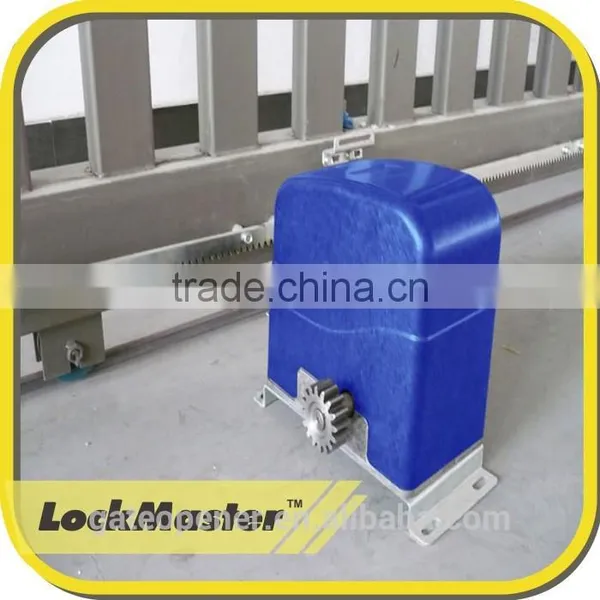

Sliding Gate Opener(DC System) 600KG/1000KG CE Approved

Automatic Horizontal Sliding Gate Operator

CE solar compatible rack driving sliding gate operator

Specifications

Input: 230V/50Hz or 120V/60Hz

Motor voltage: 24VDC

Power: 180W

Gate Moving Speed: 20cm/sec

Output Torque:  12N.m

Max. Gate weight:  600kg

with 20' chain, mounting hardware including chain mounting parts, 270mm height steel base, control box and 2 pcs remote controls.

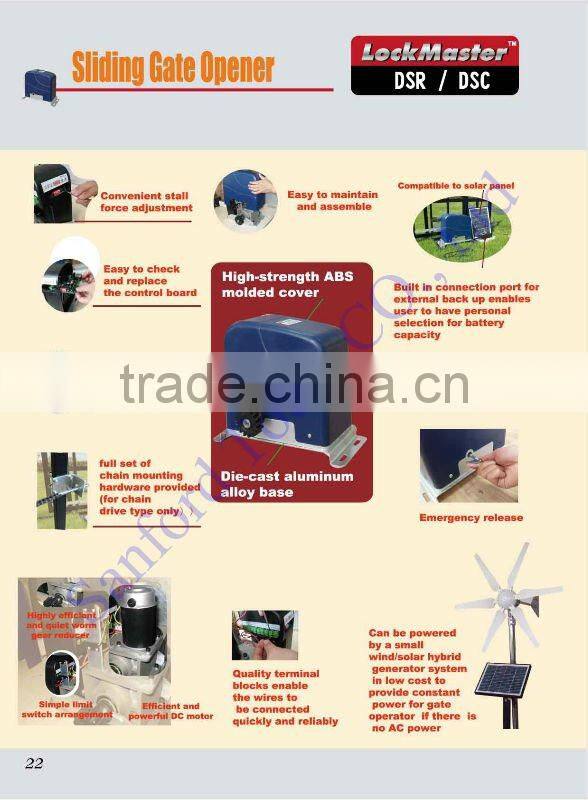

Features:

·Soft start and soft stop

·Reliable rolling code technology

·Emergency release key in case of power failure

·Stop/Reverse in case of obstruction during gate opening/closing.

·Built in adjustable auto-close (30, 60, 90 seconds)

·Built in max. 60 seconds Motor running time (MRT) for multiple safety protection.

·Reliable electromagnetism limit for easy adjustment

·Pedestrian mode

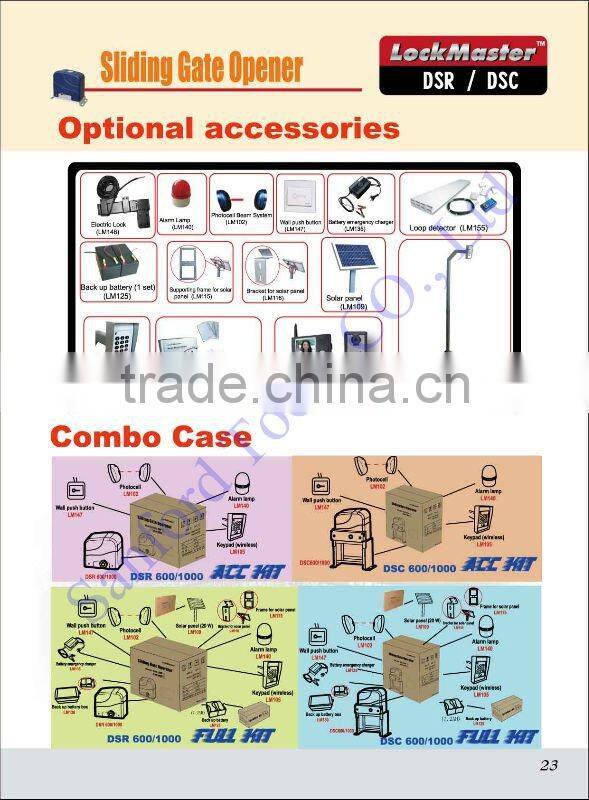

·Optional accessory which has following function:

Push button

Photocell beam

Back up battery

Solar panel

Alarm lamp

External receiver

Loop detector

Wireless Keypad

Wired keypad with card entry mode

Wireless door phone 3.5" or 2.5"

7"LCD  video intercom with card entry mode
