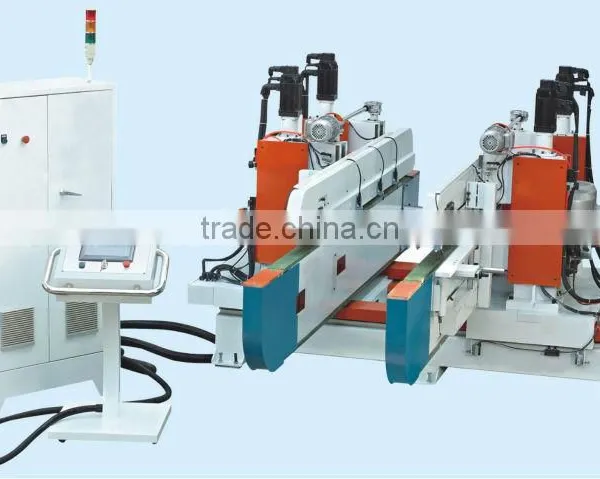

Doouble-end Milling Machine Series SH706 With Working Width 250/2500mm and Working Thickness 6/800mm
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SHOOT
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plywood and Door Edge Cutting Machine for 4 Sides SH4SJ105X210 With Max Working Width 700---1110mm and Max. Working Length 2400mNegotiableMOQ: 1 Piece -
Laminating Product Line For PUR Glue SH1350PURM With Max.panel Width 1220mm and Max.feeding Speed 15m/minNegotiableMOQ: 1 Piece
-
Auto Stacking Machine SH2512-II With Worktable Size 2500x1200mmm and Min. Panel Thickness 3mmNegotiableMOQ: 1 Piece
-
Auto Feeding Machine SH2512-I With Worktable Size 2500x1200mm and Min. Panel Thickness 3mmNegotiableMOQ: 1 Piece
-
CNC Boring Center Machine With Five Sides SHCNC-FSB2500 With Max. Speed 80m/min and Main Spindle Power 3.5KWNegotiableMOQ: 1 Piece
Condition
New
Place of Origin
Shandong, China
Brand Name
SHOOT
Model Number
SH706
| Doouble-end Milling Machine Series | |
| Feature | |
| Keeps the size of floor slab surface consistent. | |
| Each spindle can rotate, convenient to achieve angle-truncate, tenon, groove and etc. | |
| Adopted widen by high precision linear orbit, machine can run in precision and wearable. It assure the precision when widen the working size, also can guarantee to fit your highly requirement for setting the working width. | |
| Orbit lubrication can reduce the frictions of slide when moving, increase the nature life of orbit as well. | |
| Much better to infeed the big size panels with the lengthen chain belt design | |
| Supported with the roller bearing in the feeding belt, make the movement more stable and reduce the noise | |
| In order to assure every chain board with high precision, we use the high hardness cast iron and treated with high temperature and maching by CNC | |
| Each spindle is equired with high precision bearing, spindle speed of milling units reach to 4000r/min | |
| Each spindle is configureed with read out, can display the position of spindle veracious. | |
| Adopted inverter for feeding, make the feed speed reaches to 5-18m/min, increase the productivity. | |
| Adopted touch screen makes the operation convenient, rapid and visualized, reduce the labor intensity and time, improve efficacy. | |
| Adopted the high class electric component to build up the perfect electic system can increase the stabilization | |
| Adopted excellent material to make of the pressure belt, keep good wearable. | |
| Only input value of working width and thickness to the PLC, you can control the width and thickness. Precision of setting width is +/-0.1mm. Easy to locate the workpieces and convenient to operate. | |
| Model | SH706 |
| Working Width | 250/2500mm |
| Working Thickness | 6/800mm |
| Cutting circle(min-max) | |
| First left and right unit | 140-200mm |
| Second left and right unit | 140-200mm |
| Spindle diameter | |
| First left and right unit | 40mm |
| Second left and right unit | 40mm |
| Cutterhead length | 60mm |
| Basic motor powers | |
| First left and right unit | 2X5.5KW/7.5HP |
| Feed (Inverter) | 3KW/4HP |
| Pressure belt lift | 2X0.25KW/0.33HP |
| Right and left milling knife vertica (Servo) | 4x1KW |
| Pressure belt lift | 2X0.18KW/0.24HP |
| Widen (Inverter) | 0.37KW/0.49HP |
| Total motor power | 31KW |
| Feed speed | 5-25m/min |
| Spindle speed | 7500r/min |
| Dust pipe diameter | 120mm |
| Overall machine dimensions | 4300x4000x1200mm |
| Weight | 6200kg |
