PROFILE SANDING SH1300-RPCC With Workpiece Width 100-1200mm and The Min Length of Workpiece 500mm

Name: PROFILE SANDING SH1300-RPCC With Workpiece Width 100-1200mm and The Min Length of Workpiece 500mm
Brand: SHOOT
SKU: 143322308
Availability: InStock

Yantai Shoot Import & Export Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

SHOOT

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name SHOOT

Model Number SH1300-RPCC

PROFILE SANDING
Feature
The irregular surface grinding equipment, through the different components of the combination can realize the irregular surface of white primer sanding.
Model	SH1300-RPCC
Workpiece width	100-1200mm
The min length of workpiece	500mm
Thickness range of workpiece	5-80mm
Feeding speed	1-18m/min
Conveyor belt motor	4kw 1400r/min
The spin rotation sand	1set 8x180x160mm
Rotary sand roller revolution	1.1kw 5-150r/min
Rotary sand roller rotation	1.1kw 10-400r/min
Common rotation disc sand
Common rotation disc revolution
Common rotation disc rotation
Abrasive brush roller	2sets 350x1250mm
Sand roller main motor speed	1.5kw 0-10m/s
Rotation disc sand	1set 15x130mm
Belt speed	0-12m/s
Sand roller lifting motor	0.37kw 1400r/miin
Sand roller oscillating motor	0.37kw 1400r/miin
Vacuum suction fan power	11kw 2800r/min
Suction port	125x6pcs 160x1pc
Vacuum negative pressure	1400Pa
Working pressure	0.6-0.8MPa
Gas consumption	about 0.35Nm3/min
Power supply	380V 50HZ
Total power	22.44KW
Outline dimensions	4000x2300x2100mm
Weight	4370kg

OUTSTANDING CHARACTERISTICS

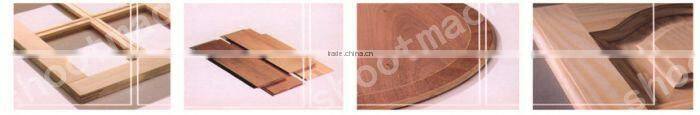

1. With complete functions and wide range of machining materiais, such as PVC, lacquered panel, priming paint panel, bare wood and so on.

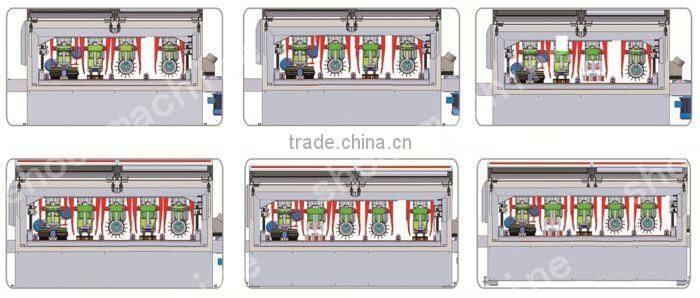

2. Modularization and multiple options, there are five sets of sanding units for preference.
3. There is vacuum suction in the working table, which make it capable of sanding narrow panels.
4. The four sets of sanding rollers are vertical with each other, and moves both as revolution and rotation, which are good for processing the right andle of doors.
5. Only when the sanding roller units are separated with the motor drive can the sanding belt be exchanged, which ensure the safety.
6. PLC system control, touch screen interface.

Wide belt straight sanding roller

The sanding roll composed of brush and abrasive belt. Brush parallel with the axis; speed inverter control from 10-1500r/min; independent lift control, vibration fuction. Abrasive easy to replace; plate uneven shaped face and corner sanding.

Wide belt Disc sanding

The disc sanding unit, speed inverter control from 10-400r/min, independent lift control, vibration function. Abrasive easy to replace; plate uneven shaped face and corner sanding.

Wide belt rotation sanding

Sanding roller rotation, relative roll revolution, speed frequency control; overall swing; independent lift control; abrasives replacement convenience; from a different perspectiveon the uneven shaped face and corner sanding.

Wide belt horizontal sanding

The brush and abrasive belt fixed on timing belt, horizontal and wiggle sanding the workpiece; speed frequency control; independent lift control; abrasive easy to replace; main for workpieces corner sanding.
