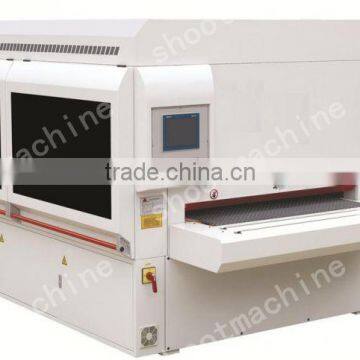

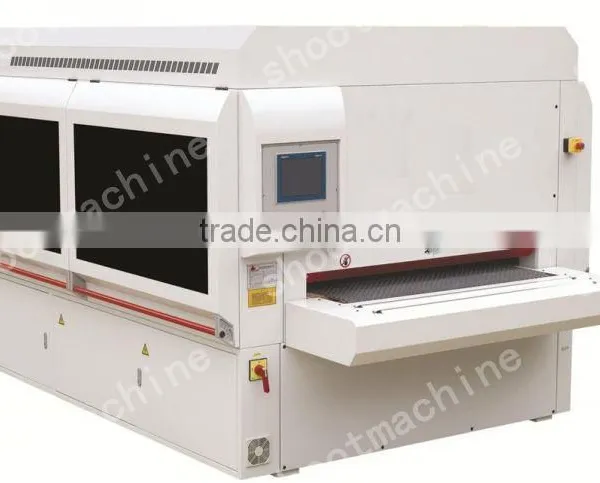

PROFILE SANDING SH1300-RHCCP-X with Workpiece width 100-1200mm and The min length of workpiece 500mm
Negotiable
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Qingdao Port
- T/T
You May Like
-
EDGE SANDING & LACQUERING MACHINE SH-T5254 with Working width 100~1500mm and Feeding thickness 15~65mm
-
EDGE SANDING & LACQUERING MACHINE SH-T3G4 with Working width 100~1500mm and Feeding thickness 15~65mm
-
SANDER (SINGLE SANDING UNIT) SH-R9 with Min working width 30mm and Min working length 400mm
-
SANDER (SINGLE SANDING UNIT) SH-R8 with Min working width 30mm and Min working length 400mm
-
Solid Woodden compound Floor Machine SHMX2028 with Processing length 450-2800mm and Processing width 450mm
-
Solid Woodden compound Floor Machine SHMX2026 with Processing length 450-2600mm and Processing width 450mm
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | SHOOT | Model Number | SH1300-RHCCP-X |
Product Description
| PROFILE SANDING | |
| Feature | |
| The irregular surface grinding equipment, through the different components of the combination can realize the irregular surface of white primer sanding. | |
| Model | SH1300-RHCCP-X |
| Workpiece width | 100-1200mm |
| The min length of workpiece | 500mm |
| Thickness range of workpiece | 5-80mm |
| Feeding speed | 1-18m/min |
| Conveyor belt motor | 4kw 1400r/min |
| The spin rotation sand | 1set 8x180x160mm |
| Rotary sand roller revolution | 1.1kw 5-150r/min |
| Rotary sand roller rotation | 1.1kw 10-400r/min |
| Common rotation disc sand | 1set 16x130mm |
| Common rotation disc revolution | 1.5kw 5-150r/min |
| Common rotation disc rotation | 3.0kw 10-400r/min |
| Abrasive brush roller | 2sets 350x1250mm |
| Sand roller main motor speed | 1.5kw 0-10m/s |
| Rotation disc sand | 1set 15x130mm |
| Belt speed | 0-12m/s |
| Sand roller lifting motor | 0.37kw 1400r/miin |
| Sand roller oscillating motor | 0.37kw 1400r/miin |
| Vacuum suction fan power | 11kw 2800r/min |
| Suction port | 125x7pcs 160x1pc |
| Vacuum negative pressure | 1400Pa |
| Working pressure | 0.6-0.8MPa |
| Gas consumption | about 0.4Nm3/min |
| Power supply | 380V 50HZ |
| Total power | 26.94KW |
| Outline dimensions | 4660x2300x2100mm |
| Weight | 6000kg |
| OUTSTANDING CHARACTERISTICS | |
| 1. With complete functions and wide range of machining materiais, such as PVC, lacquered panel, priming paint panel, bare wood and so on. | |

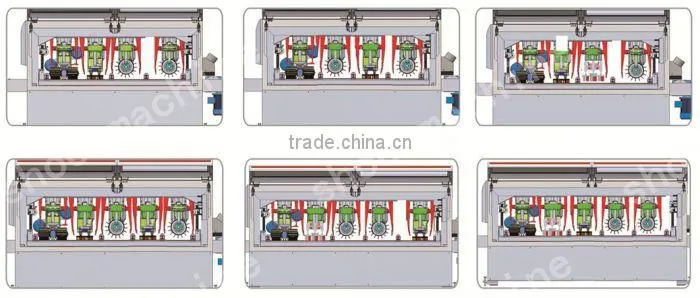

| 2. Modularization and multiple options, there are five sets of sanding units for preference. | |
| 3. There is vacuum suction in the working table, which make it capable of sanding narrow panels. | |
| 4. The four sets of sanding rollers are vertical with each other, and moves both as revolution and rotation, which are good for processing the right andle of doors. | |
| 5. Only when the sanding roller units are separated with the motor drive can the sanding belt be exchanged, which ensure the safety. | |

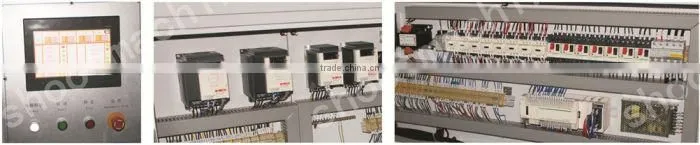

| 6. PLC system control, touch screen interface. |

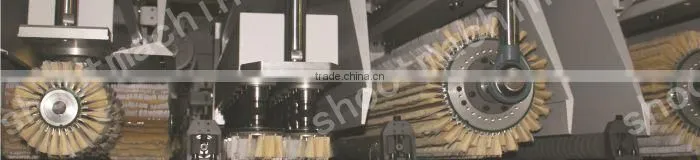

| Wide belt straight sanding roller |
| The sanding roll composed of brush and abrasive belt. Brush parallel with the axis; speed inverter control from 10-1500r/min; independent lift control, vibration fuction. Abrasive easy to replace; plate uneven shaped face and corner sanding. |
| Wide belt Disc sanding |
| The disc sanding unit, speed inverter control from 10-400r/min, independent lift control, vibration function. Abrasive easy to replace; plate uneven shaped face and corner sanding. |
| Wide belt rotation sanding |
| Sanding roller rotation, relative roll revolution, speed frequency control; overall swing; independent lift control; abrasives replacement convenience; from a different perspectiveon the uneven shaped face and corner sanding. |
| Wide belt horizontal sanding |
| The brush and abrasive belt fixed on timing belt, horizontal and wiggle sanding the workpiece; speed frequency control; independent lift control; abrasive easy to replace; main for workpieces corner sanding. |
