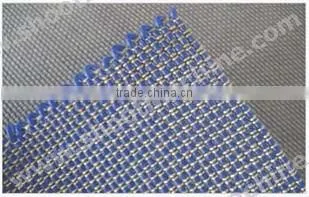

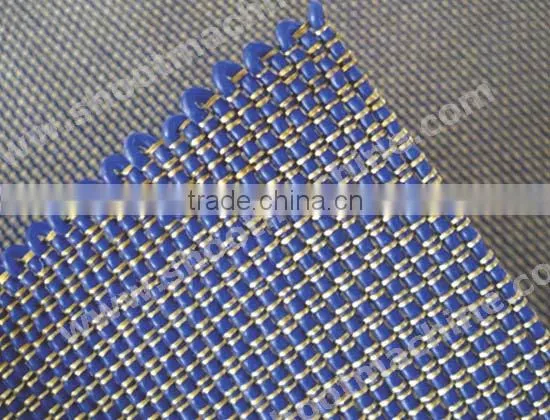

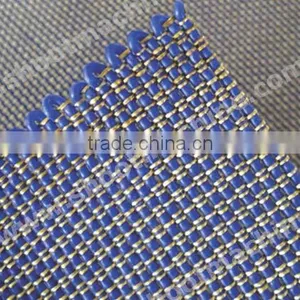

Cushion Pad PAD-D With Material Copper Wire and Chemical Fiber and Thickness 4mm
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
PAD-D
Brand Name:
SHOOT
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cushion Pad PAD-C With Material Copper Wire and Silicon Rubber and Thickness 2.5~2.8mmNegotiableMOQ: 1 Piece -
Cushion Pad PAD-B With Material Copper Wire and Silicon Rubber and Thickness 2.3~2.5mmNegotiableMOQ: 1 Piece
-
Cushion Pad PAD-A With Material Copper Wire and Thickness 1.3~1.5mmNegotiableMOQ: 1 Piece
-
Stainless Steel Press Plate SH6X12 With Applicable Press Plate Size 2000x4000mm and Applicable Press Plate Thickness 5mmNegotiableMOQ: 1 Piece
-
Stainless Steel Press Plate SH6X9 With Applicable Press Plate Size 2000x2960mm and Applicable Press Plate Thickness 5mmNegotiableMOQ: 1 Piece
Model Number
PAD-D
Brand Name
SHOOT
| Cushion Pad | ||||
| Feature | ||||
| The cushion pad is an indispensable device for heated platen press. It is installed between hot platen and press plate to transfer heat and buffer pressure, thereby effectively prolonging the life span of press plate. | ||||
| Model | PAD-D | |||
| Material | Copper wire and chemical fiber | |||
| Thickness | 4mm | |||
| Unit weight | 4600gsm | |||
| Performance | ||||
| Heat transfer | PAD-A>PAD-B>PAD-C>PAD-D | |||
| Cushioning effect | PAD-A | |||
| Service life | PAD-A | |||
| Price | PAD-A=PAD-B | |||
| Remark | PAD-B and PAD-C are commonly used in heated platen press, while the other two aren’t. | |||
| Raw Material | ||||
| Material | Place of origin | Content | Specification | Remark |
| Silicone rubber | German CVC | 98% silicone rubber | 104 (grade) | Weft material |
| Oxygen-free copper wire | China | 98% copper | Φ0.2±0.01 | Weft material |
| Brass wire | China | 68% copper | Φ0.2±0.01 | Radial material |
| Semi-Finished Product | ||||
| Material | Specification | Core session | Tensile strength | Elongation |
| Hot wire | Φ0.2±0.05 | 12±0.5/10CM | ≥2300CN | ≥40CM |
| Brass | Φ0.2±0.01/8 | 8±0.5/10CM | / | / |
| Finished Product Standard | ||||
| Model | Radial material | Track density (10 cm) | Weft (10cm) | Weft material |
| HCD-X (twill) | 0.20 brass | ≥84 root | ≥44 root | High temperature silicone wire Φ2 |
| Oxygen-free copper wire | Domestic copper wire | ≥84 root | ≥33 root | 100% copper |
