Cushion Pad PAD-A With Material Copper Wire and Thickness 1.3~1.5mm

Yantai Shoot Import & Export Co., Ltd.
Cushion Pad PAD-A With Material Copper Wire and Thickness 1.3~1.5mm thumbnail-1
Cushion Pad PAD-A With Material Copper Wire and Thickness 1.3~1.5mm photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
PAD-A
Brand Name:
SHOOT
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number PAD-A
Brand Name SHOOT
Cushion Pad
Feature

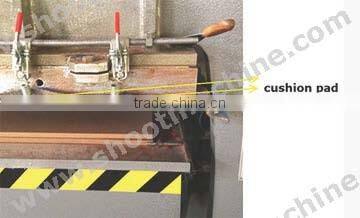

The cushion pad is an indispensable device for heated platen press. It is installed between hot platen and press plate to transfer heat and buffer pressure, thereby effectively prolonging the life span of press plate.
ModelPAD-A
MaterialCopper wire
Thickness1.3~1.5mm
Unit weight3000gsm
Performance
Heat transferPAD-A>PAD-B>PAD-C>PAD-D
Cushioning effectPAD-A
Service lifePAD-A
PricePAD-A=PAD-B
RemarkPAD-B and PAD-C are commonly used in heated platen press, while the other two aren’t.

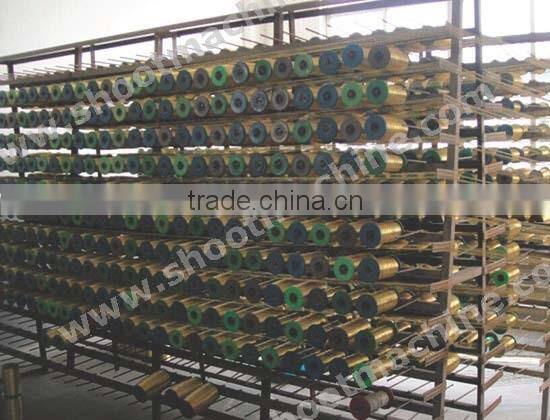

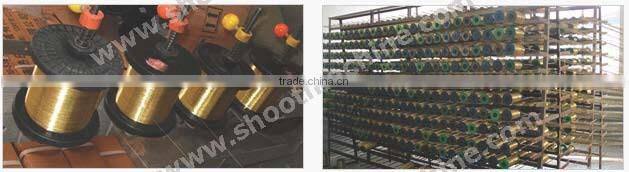

Raw Material
MaterialPlace of originContentSpecificationRemark
Silicone rubberGerman CVC98% silicone rubber104 (grade)Weft material
Oxygen-free copper wireChina98% copperΦ0.2±0.01Weft material
Brass wireChina68% copperΦ0.2±0.01Radial material
Semi-Finished Product
MaterialSpecificationCore sessionTensile strengthElongation
Hot wireΦ0.2±0.0512±0.5/10CM≥2300CN≥40CM
BrassΦ0.2±0.01/88±0.5/10CM//
Finished Product Standard
ModelRadial materialTrack density (10 cm)Weft (10cm)Weft material
HCD-X (twill)0.20 brass≥84 root≥44 rootHigh temperature silicone wire Φ2
Oxygen-free copper wireDomestic copper wire≥84 root≥33 root100% copper





Cushion Pad PAD-A with Material Copper wire and Thickness 1.3~1.5mmCushion Pad PAD-A with Material Copper wire and Thickness 1.3~1.5mmCushion Pad PAD-A with Material Copper wire and Thickness 1.3~1.5mmCushion Pad PAD-A with Material Copper wire and Thickness 1.3~1.5mmCushion Pad PAD-A with Material Copper wire and Thickness 1.3~1.5mmCushion Pad PAD-A with Material Copper wire and Thickness 1.3~1.5mm
