Home > Products > wood cutting panel saw > wood cutting panel saw SH6120TZ with Length of sliding table 2000x360mm and 45degree tilting and 4kw motor

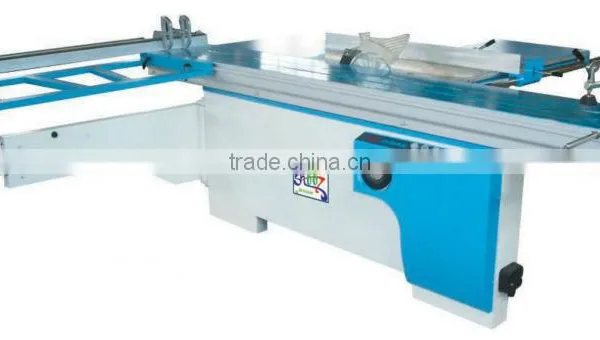

wood cutting panel saw SH6120TZ with Length of sliding table 2000x360mm and 45degree tilting and 4kw motor
Negotiable
/ Piece
1 Piece(Min.Order)
- 150 Piece / Pieces per Month
- Qingdao Port
- T/T
You May Like
-
wood cutting panel saw SH6115ZA with Dimensions sliding table 1500*310mm and Gross cut capacity 1500mm
-
wood Sliding panel saw With Digital Display SH6138STGO with Length of sliding table:3800x400mm and 4kw motor
-
wood cutting panel saw SH3800B with Max. incising length 3800mm and Max. incising thickness 120mm
-
COMPUTER PANEL SAW SH330B with Max. cutting length 3280mm and Max. cutting thickness 90mm
-
COMPUTER PANEL SAW SH1333B with Max. cutting length 3280mm and Max. cutting thickness 90mm
-
COMPUTER PANEL SAW SH1333 with Max. cutting length 3280mm and Max. cutting thickness 76mm
Product Details
| Place of Origin | Shandong, China | |||
| Brand Name | SHOOT | Model Number | SH6120TZ | |
| Power(W) | 750/4000W | Dimension(L*W*H) | 1980 x 1080 x 1090mm;2100x400x280mm | |
| Weight | 450kg/500kg | Certification | CE |
Product Description
| 1,Suitable for processing all density boards,shavingboards artificial boards,ABS boards,PVC boards,olexiglass plates and genuine woodboards and other boards with similar structure and hardness. | |
| 2,The movable working Bench guide is a ball differential structure with a high positioning accuracy. | |
| 3,Made of highly strengthened aluminium alloy,the movable working Bench enjoys a high strength and warpingproof. | |
| 4,The surface of the movable working bench are oxidized and are wearable . | |
| 5,The inclination between the major saw blade and saw blade are visually displayed by electronic precision instrument. | |
| Precision Panel Saw | |
| Model | SH6120TZ |
| Length of sliding table:2000X360mm | |
| Power of main saw spindle:4KW | |
| Rotary speed of main saw spindle:4000-6000r/min | |
| Diameter of main saw blade:φ300×φ30mm | |
| Power of grooving saw:0.75KW | |
| Rrotary speed of grooving saw:8000r/min | |
| Diameter of grooving saw blade:φ120×φ20mm | |
| Max sawing thickness:75mm | |
| Main Work Table Size: 540 x 880mm | |
| Slope degree of main saw and grooving saw: 45 degree | |
| Aluminium Sliding Table style | beeline guide rail |
| N.W./G.W. | 450kg/500kg |
| Packing Size | 1980 x 1080 x 1090mm 2100x400x280mm |
