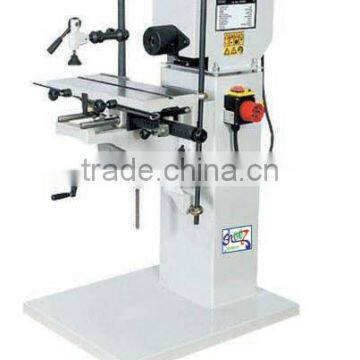

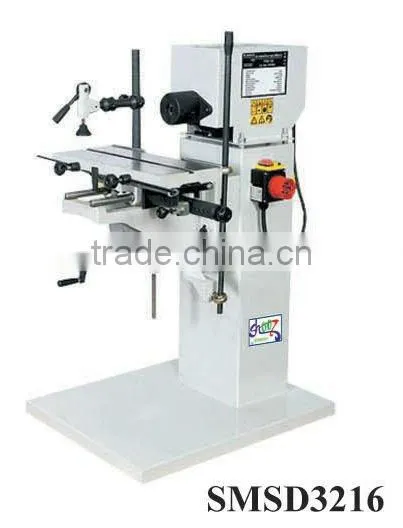

Horizontal One Spindle Mortising Machine SMSD3216 With Motor Speed 2, 860/min and Maximum Tool Diameter 3mm to 20mm
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Motor Speed:
2860r/min
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HEAVY-DUTY MORTISER MS3840M With Max.height of Timber 200mm and Max.width of Timber 1000mmNegotiableMOQ: 1 Piece -
Woodworking Mortiser Machine SHMS3615A With Max.Slotting Length 200mm and Max.Slotting Width 25.4mmNegotiableMOQ: 1 Piece
-
Mortiser Machine SHMK4018 With Max.Slotting Width 16mm and Size of Working Table 210*160mmNegotiableMOQ: 20 Pieces
-
Mortiser Machine SHMK361A With Max. Length of Slot 16mm and Spindle Speed 2840r/minNegotiableMOQ: 5 Pieces
-
Mortiser Machine SHMS3615 With Max.Slotting Length 200mm and Max.Slotting Width 25.4mm and Max.Slotting Depth 100mmNegotiableMOQ: 1 Piece
Condition
New
Automatic Grade
Automatic
Motor Speed
2860r/min
Place of Origin
Shandong, China
Brand Name
SHOOT
Model Number
SMSD3216
Voltage
3 x 400V (3 x 230V/1 x 230V)/50 (60)Hz
Power(W)
2200W
Dimension(L*W*H)
840 x 750 x 1160mm
Certification
CE
| Horizontal one spindle mortising machine | |
| Model | SMSD3216 |
| Mortiser | 2200W |
| 01) Motor power | 2, 200W |
| 02) Motor speed | 2, 860/min |
| 03) Voltage/frequency | 3 x 400V (3 x 230V/1 x 230V)/50 (60)Hz |
| 04) Line safeguarding | 16A |
| 05) Noise level with/without Laeq | 85, 0dB (A)/87, 0dB (A) |
| 06) Maximum tool diameter | 3mm to20mm |
| 07) Maximum height of mortising above the table | 125mm |
| 08) Maximum longitudinal travel of the table | 220mm |
| 09) Maximum cross travel of the table | 135mm |
| 10) Table size | 460 x 190mm |
| 11) Machine dimensions | 740 x 560 x 1, 320mm |
| 12) Net/gross weight | 90/125kg |
| 13) Packing size | 840 x 750 x 1160mm |
| 14) Units per 20-foot container | 36 |
| 15) Minimum order quantity | 20 |
