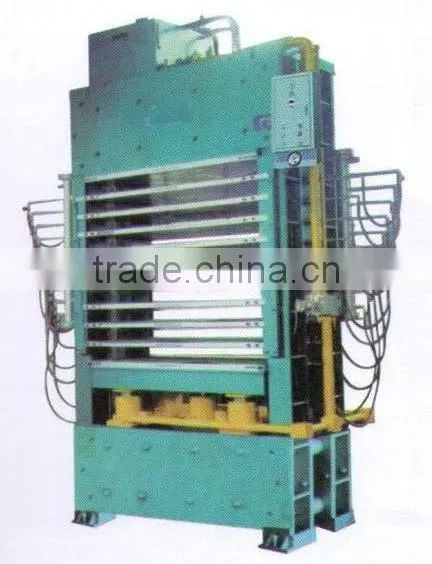

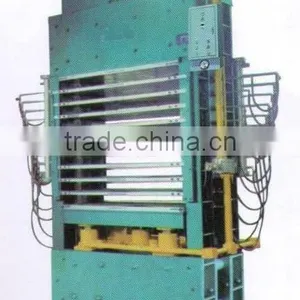

LAMINATING HOT PRESS
Spare parts are small and easy to carry and assemble.
The machine racks are composed of spare parts, therefore, they canbe dismantled into parts fit
for transportation and convenient to install. If the users have the workshops with doors
1.4mx2m, the presses can be moved in and assembled into a machine or reset the working area.
The air entry and exit tubes are made with the heat-bome resin tied with steel wires. The tubes
can last longer time in about 10 years(3000000 times).
The main part of the press hydraulic tank is at the top of the racdk with small area and the oil
tube is set upon production without extra setting.
The base needed is shallow with the depth 1.5m, easy to clean, maintain with good safety and
lower price.
The power for installation is lower and speed for turning off is fast, structure simple and lower
price.
Its synchronism is perfect, litfing smooth, structure simple, the error rate low main-tenance
convenient.
Model	BY214x8/40(8)Z
Total pressure	4000KN
Working layer	8
Max.pre.int.of valid working width	13kgf/cm2
Platen No&size	9-2700x1370x42mm
Opening	90mm
Cylinder No&diameter	5-190mm
Heating way	Prepared by user
Hot platen opening way	Manually
Installation power	15kw
Closing speed	65mm/s
