Home > Products > CNC Control Woodworking Lathe > Biaxial CNC Woodworking Lathe Double Knife SHJX-CS100S with OUTLINE DIMENSION 2500x1400x1300mm and MAIN MOTOR 5.5kw

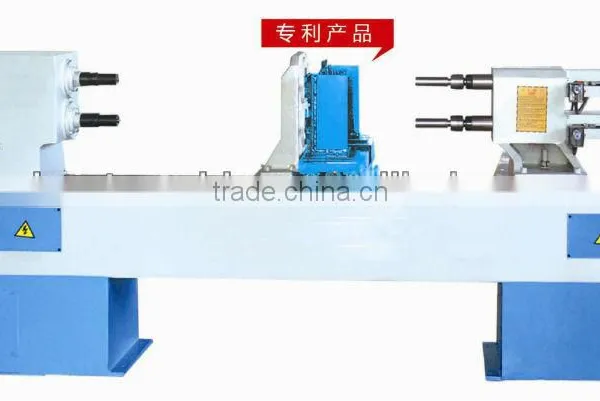

Biaxial CNC Woodworking Lathe Double Knife SHJX-CS100S with OUTLINE DIMENSION 2500x1400x1300mm and MAIN MOTOR 5.5kw
Negotiable
/ Piece
1 Piece(Min.Order)
- 200 Piece / Pieces per Month
- Qingdao Port
- T/T
You May Like
-
Biaxial CNC Woodworking Lathe Double Knife SHJX-CS150S with OUTLINE DIMENSION 3000x1400x1300mm and MAIN MOTOR 5.5kw
-
Biaxial CNC Woodworking Lathe Double Knife SHJX-CS200S with OUTLINE DIMENSION 3500x1400x1300mm and MAIN MOTOR 5.5kw
-
Biaxial CNC Woodworking Lathe SHJX-C150S with OUTLINE DIMENSION 3000x1000x1300mm and MAIN MOTOR 5.5kw
-
GRINDING MACHINE SHJX-CM100S with OUTLINE DIMENSION 2500x1400x1300mm and MAIN MOTOR 5.5kw
-
GRINDING MACHINE SHJX-CM150S with OUTLINE DIMENSION 3000x1400x1300mm and MAIN MOTOR 5.5kw
-
GRINDING MACHINE SHJX-CM200S with OUTLINE DIMENSION 3500x1400x1300mm and MAIN MOTOR 5.5kw
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Automatic | |
| Place of Origin | Shandong, China | Brand Name | SHOOT | |
| Model Number | SHJX-CS100S | Power(W) | 8500W | |
| Dimension(L*W*H) | 2500x1400x1300mm | Weight | 1550kg | |
| Certification | CE |
Product Description
| SHJX-CS Series Of Biaxial CNC Woodworking Lathe Double Knife | |
| Feature | |
| Double knife can perform different actions of turning workpiece | |
| Model | SHJX-CS100S |
| OUTLINE DIMENSION | 2500x1400x1300mm |
| MAIN MOTOR | 5.5kw |
| HOST WEIGHT | 1550kg |
| SINGLE SHAFT DIAMETER | 320mm |
| BIAXIAL ROTARY DIAMETER | 180mm |
| PROCESSING LENGTH | 20-1000mm |
| TOTAL POWER | 8.5kw |
| Feature | |
| High performance industrial 32-bit ARM + FPGA | |
| Low 64 MB SDRAM | |
| Second-ranking 32m storage space | |
| Low 800 x 480 LCD liquid crystal display | |
| Low light touch diaphragm, vice operation panel | |
| Second-ranking RS232 communication interface | |
| Second-ranking USB removable USB copy | |
| Low high anti-interference switch power supply |
| Feature | |
| The main control part: using the high reliability of NC module, program developed by Yumoto company independently, the installation and allocation are reliable guarantee of its working stability and after sale service! | |
| Operating system: simple interface, full Chinese characters by using the simple tips and size directly input setting method. |
| Feature | |
| Weihong control system to support the Chinese, CNC dual system can support UG, MASTERCAM, CASMATE, ArtCAM, AUTOCAD, CorelDraw and other CAD/CAM software to generate G code, PLT code format support Chinese programming mode type, U disk can be imported directly, automatic processing. The G command increment feed function complete support for the ISO standard. Convenient for the user to accurately set into to the amount, and the step size can be adjusted flexibly. Breakpoint memoroy, jump section performs advanced automatic function. Save/restore work station function. |
| Feature | |
| using ARM9 microprocessor and high-speed vlsi FPGA programmable devices, using the real-time multitask control technology and hardware interpolation technology, rapid movement is smooth, programs run faster refresh rate and interface. | |
| 7 inch true color display screen, interface friendly, humane, simple and easy to use. | |
| the whole process structure is reasonable, with full optical coupling isolation control, strong anti-interrference ability. | |
| 256 m large processing file storage space, meet all kinds of complicated operation and processing program, easy to handle big run of the program. | |
| supports a single pole and double pole processing molding, to support single pole and double pole points of time turning over and over again. | |
| supports G instruction manual programming function. | |
| breakpoint memory fumction, power failure processing position will not be lost. |
