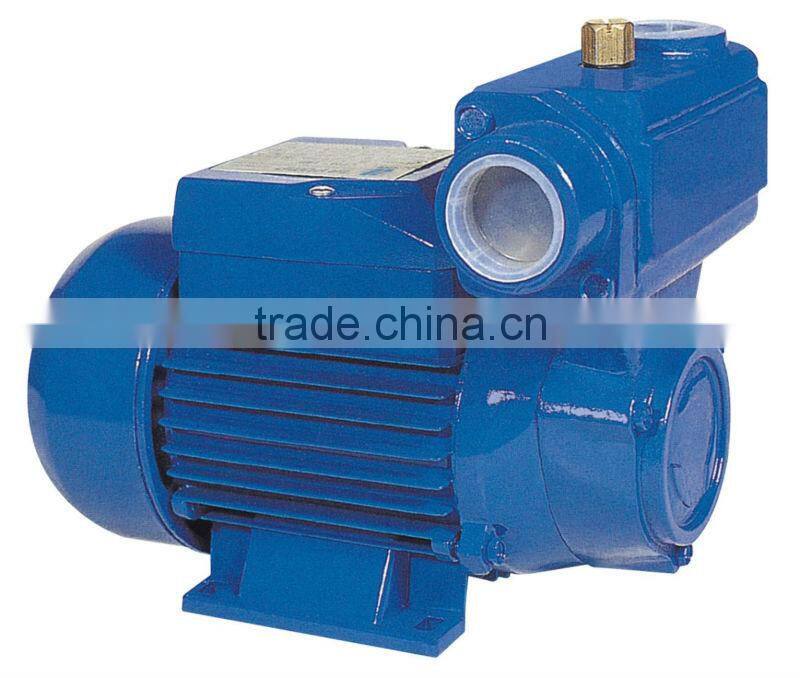

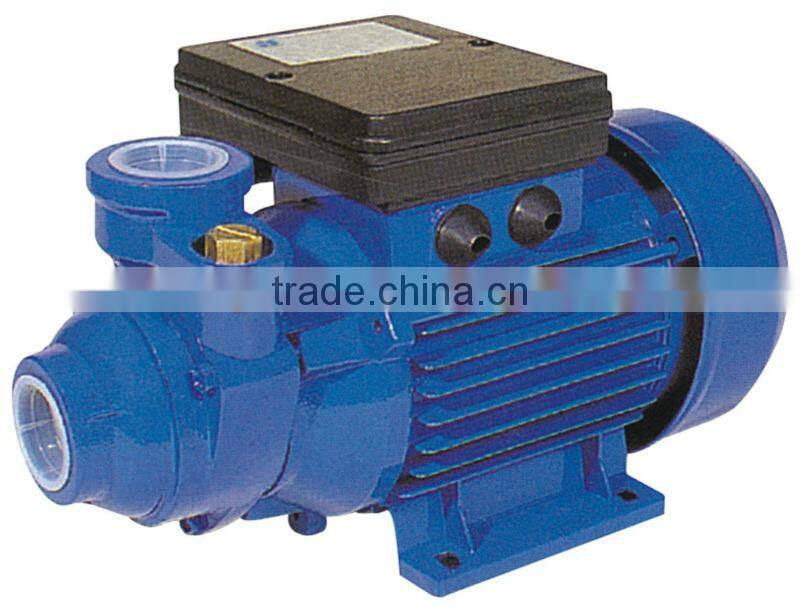

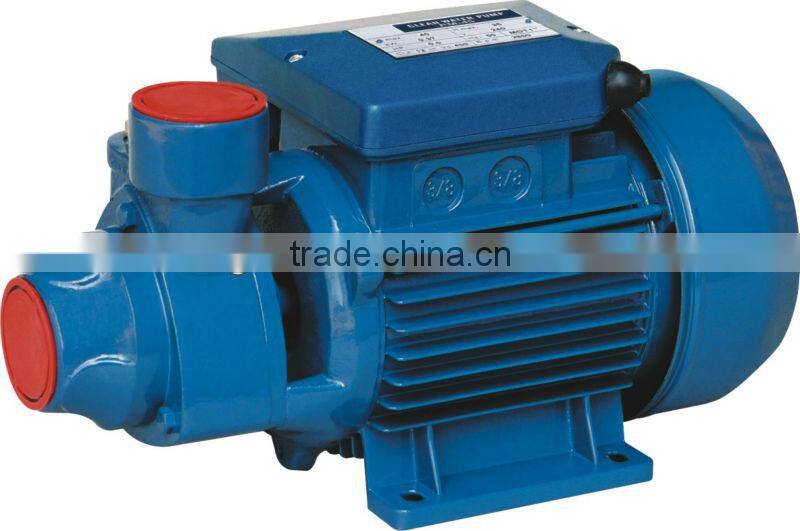

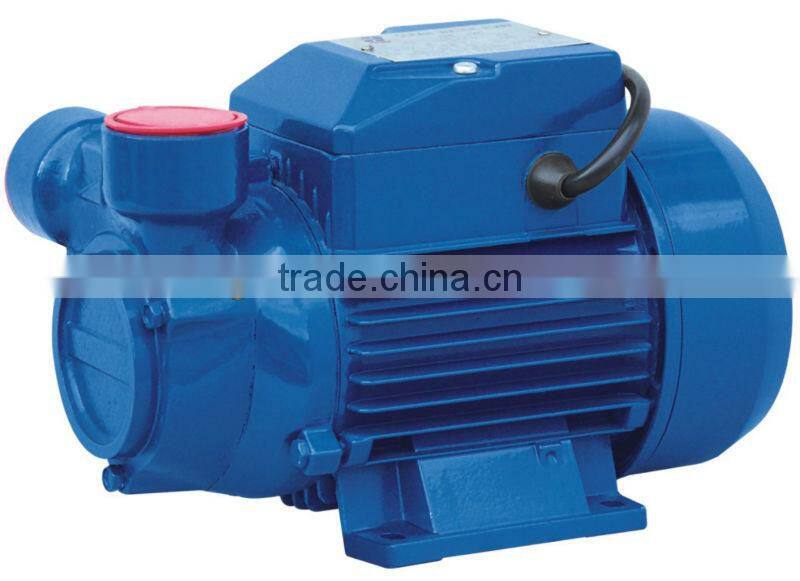

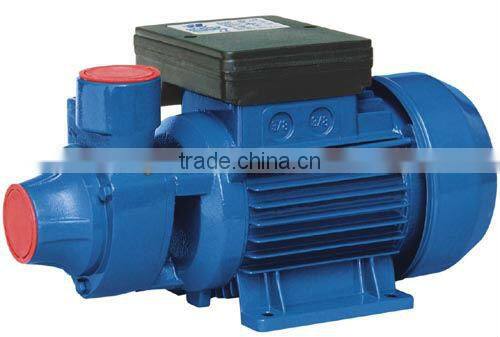

HUIFENG QB Peripheral Pump

Specifications

HUIFENG QB Peripheral Pump
QB60/70/80/90
Pump casing:Cast Iron
Impeller:ABS/Brass/Noryl
Diffuser:Noryl/PPO/ABS/Cast iron

HUIFENG QB Peripheral Pump





QB60/70/80/90





1. Working conditions:

Max temperature of fluid up to:     50

Max ambient temperature up to:        40

Max Pressure:                        8bar

2. Structural characteristics:

Pump casing:       Cast Iron

Impeller:           ABS/Brass/Noryl

Diffuser:           Noryl/PPO/ABS/Cast iron

Motor Housing:     Aluminum

Pump-motor adaptor:Aluminum/Cast iron

Mechanical seal:    Stainless steel(graphite to ceramic)

Shaft:             45# steel or stainless steel

Bearing:           SKF/NTN/NSK/China

Insulation class:     B/F

Protection class:    IP44 and IP54

3.Technical data(220V,50HZ)110V,115V,127V,230V,240V,110/220V,50HZ/60HZ,380V 50HZ three-phase etc.





TYPE	KW	HP	USD/PC	G.W.	L	W	H	20ft	Stator
QB60	0.37	0.5	18.0	6.1	285	140	175	3400	63-40
QB70	0.55	0.75	26.2	9.3	310	180	205	2200	71-50
QB70H	0.75	1	28.5	9.3	310	180	205	2200	71-62
QB80	1.1	1.5	31.2	9.7	310	180	205	2200	71-75
QB90	1.5	2	47.8	18.7	415	195	225	1320	80-78









Pump Model		Power		Inlet and outlet(inch)	Impeller material	Max.Head (m)	Max.Flow (L/MIN)
Three Phase	Single Phase	Kw	HP
	QB60	0.37	0.5	1x1	Brass	35	36
	QB70	0.55	0.75	1x1	Brass	45	45
	QB80	0.75	1	1x1	Brass	60	50
