Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HUIHENG
Model Number:
ME
Type:
Induction Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY PORT IN CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OEM Rolled Steel Housing Three Phase NEMA MotorNegotiableMOQ: 100 Pieces -
Circular Duct FanNegotiableMOQ: 500 Pieces
-
Multi-Connection VentilatorNegotiableMOQ: 500 Pieces
-
220V Vertical Type VentilatorNegotiableMOQ: 500 Pieces
-
IE3 7.5kW IMB3 Three Phase Electric MotorNegotiableMOQ: 100 Pieces
Brand Name
HUIHENG
Model Number
ME
Type
Induction Motor
Frequency
50Hz
Output Power
0.75-18.5KW
Protect Feature
Other, Totally Enclosed, Enclosed
Certification
CCC, CE, ROHS
AC Voltage
Other, 400V
Place of Origin
Fujian, China
Efficiency
IE 2

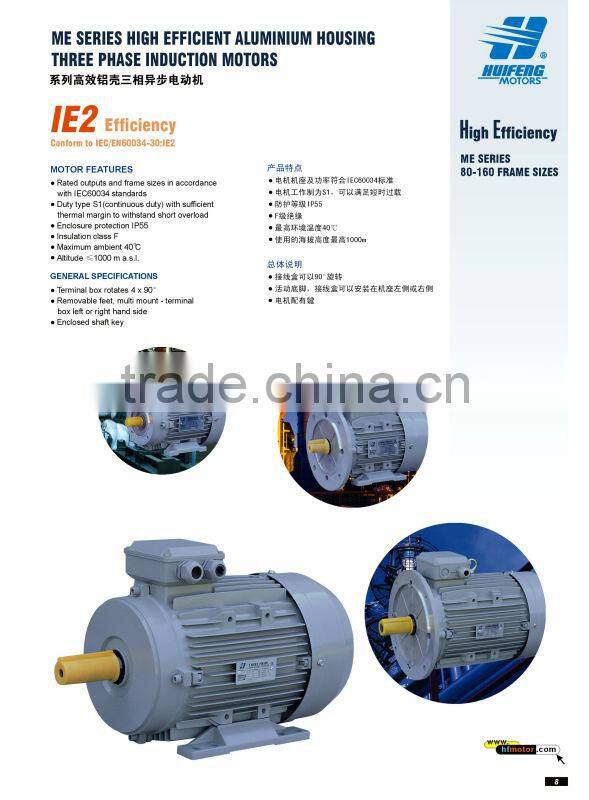

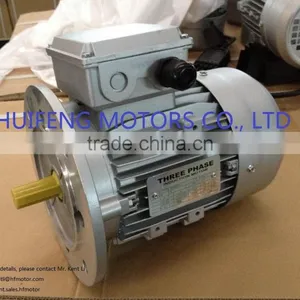

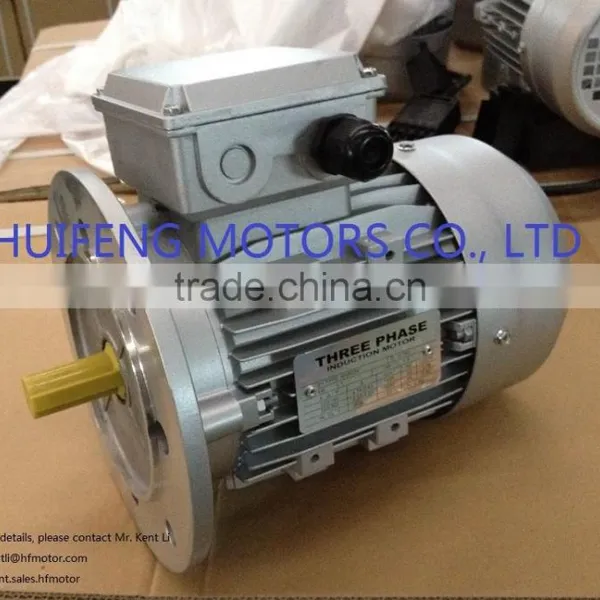

Three Phase IE2 400V AC B5 VFD Motor
TECHNICAL CHARACTERISTICS
- Rated outputs and frame sizes in accordance with IEC60034 standards
- Duty type S1(continuous duty)with sufficient thermal margin to withstand short overload
- Enclosure protection IP55
- Insulation class F, temperature rise class B
- Maximum ambient 40°C
- Altitude≤1000m a.s.l.
GENERAL SPECIFICATIONS
- Terminal box rotates 4x90°
- Removable feet, multi mount-terminal box left or right hand side
- Enclosed shaft key
CONSTRUCTION MATERIALS
- Frame – Aluminium
- End shields- Aluminium/Cast iron
- Fan cowl- steel
- Fan-Plastic
- Shaft- Medium carbon steel(stainless available on request)
- Terminal box – Aluminium
WHY CHOOSE US
WHAT WE DO AT HUIFENG
- Stamping of lamination
- Rotor die-casting
- Winding and inserting – both manual and semi-automatically
- Vacuum varnishing
- Machining shaft, housing, end shields, etc…
- Rotor balancing
- Painting – both wet paint and powder coating
- Motor assembly
- Packing
- Inspecting spare parts every processing
- 100% test after each process and final test before packing.
Product Description
Our Services
WHAT HUIFENG CAN DO FOR CUSTOMERS
- Huifeng supplies standard products to customers.
- Huifeng supplies standard products under customers’ brands and packaging, etc
- Huifeng R&D department develops any new products together with the customers.
Company Information
OUR FACTORY
- Established:1989
- Total land: 26,800 square meters; 16,000 square meter workshop, laboratory and office.
- Employees: 350
- Engineers: 10 work in R&D and 17 in factory production
- Estimated turnover: 2008: Eur.14,500,000; 2009: Eur.12,100,000; 2010: Eur.13,200,000 about 60% to Europe and 30% to Australia.
- Production certification: Huifeng Motors has been certificated according to ISO9001, CSA, TUV, MEPS, CE, UL, CCC,GS, all of our products are made according to RoHS and IEC standard.
