IMB14 0.18kW Single Phase Gear Box Using Motor

Huifeng Motors Co., Ltd.
IMB14 0.18kW Single Phase Gear Box Using Motor thumbnail-1
IMB14 0.18kW Single Phase Gear Box Using Motor photo-1
US$ 1 - 2,000 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
HUIHENG or OEM
Model Number:
MYH
Type:
Induction Motor
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HUIHENG or OEM
Model Number MYH
Type Induction Motor
Frequency 50/60Hz
Output Power 0.18kW~4kW
Protect Feature Other, Totally Enclosed, Enclosed
Certification CCC, CE, ROHS
AC Voltage Other, 230V
Place of Origin Fujian, China
Efficiency Other

IMB14 0.18kW Single Phase Gear Box using Motor



MOTOR FEATURES



1) utilise IP55 enclosures, IP54 on request

2) Multiple feet locations

3) Aluminum frame. end shields and base

4) High strength cable gland

5) Shaft key and protector supplied

6) Superior paint finish

7) Motors made to heavy duty service factors

8) Utilise Vacuum impregnated Class B insulation

9) Class F insulation on request

10) High performance and efficiency



CUSTOMER BENEFITS



1) Water dust and vermin resistant

2) Quiet operation

3) Electricity saving

4) Easy installation (bolt on feet or brackets as required)

5) Corrosion resistant

6) Dependable

7) Superior life

8) Reliable in contury, city or factory environments



Why Choose Our Products



1. S1 Duty, 100% Output;

2. 20 Year Experience In OEM Project;

3. The color of painting could be according to customer's requirement;



Model

Power

Voltage

(V)

Current

(A)

Speed

(r.p.m)

Eff

(%)

Power

Factor

Locked rotor torque

Max. torque

Starting

Current

(A)

Net Weight

(Kg)

Rated torque

Rated torque

HP

KW

MY561-2

0.12

0.09

230

0.75

2800

56

0.92

0.45

1.7

4.3

4.2

MY562-2

0.16

0.12

230

0.94

2800

60

0.92

0.5

1.7

5.8

4.5

MY631-2

0.25

0.18

230

1.42

2800

60

0.92

0.4

1.7

5

5

MY632-2

0.34

0.25

230

1.87

2800

63

0.92

0.4

1.7

7

5.3

MY711-2

0.5

0.37

230

2.61

2800

67

0.92

0.35

1.7

10

6.2

MY712-2

0.75

0.55

230

3.71

2800

70

0.92

0.35

1.7

15

6.5

MY801-2

1

0.75

230

4.93

2800

72

0.92

0.33

1.7

20

8.3

MY802-2

1.5

1.1

230

6.71

2800

75

0.95

0.33

1.7

30

9

MY90S-2

2

1.5

230

9.03

2800

76

0.95

0.3

1.7

45

13

MY90L-2

3

2.2

230

13.08

2800

77

0.95

0.3

1.7

65

15

MY100L-2

4

3

230

17.8

2800

79

0.95

0.3

1.7

88

27

MY561-4

0.08

0.06

230

0.58

1400

50

0.90

0.45

1.7

2.9

4.3

MY562-4

0.12

0.09

230

0.83

1400

52

0.90

0.45

1.7

4.3

4.6

MY631-4

0.16

0.12

230

1.05

1400

55

0.90

0.4

1.7

3.5

5.1

MY632-4

0.25

0.18

230

1.55

1400

56

0.90

0.4

1.7

5

5.5

MY711-4

0.34

0.25

230

1.93

1400

61

0.92

0.35

1.7

7

6.3

MY712-4

0.5

0.37

230

2.82

1400

62

0.92

0.35

1.7

10

7.1

MY801-4

0.75

0.55

230

4.07

1400

64

0.92

0.35

1.7

15

9.5

MY802-4

1

0.75

230

5.21

1400

68

0.92

0.32

1.7

20

10

MY90S-4

1.5

1.1

230

7.13

1400

71

0.95

0.32

1.7

30

13

MY90L-4

2

1.5

230

9.4

1400

73

0.95

0.3

1.7

45

16

MY100L1-4

3

2.2

230

13.6

1400

76

0.95

0.3

1.7

65

23

MY100L2-4

4

3

230

18

1400

77

0.95

0.3

1.7

88

27

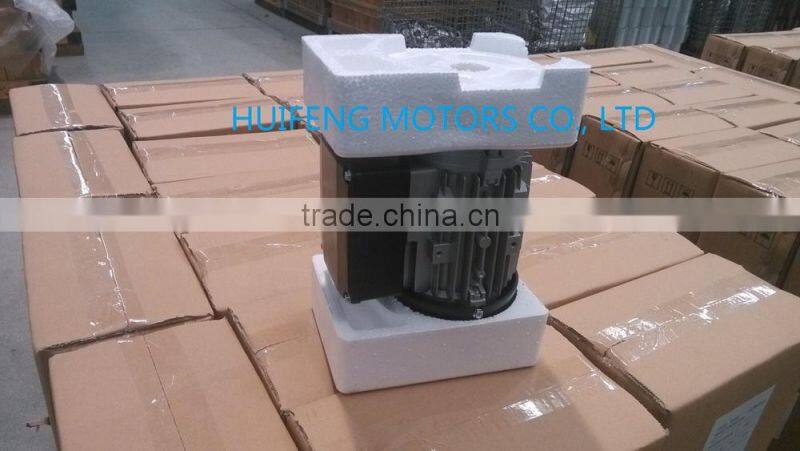

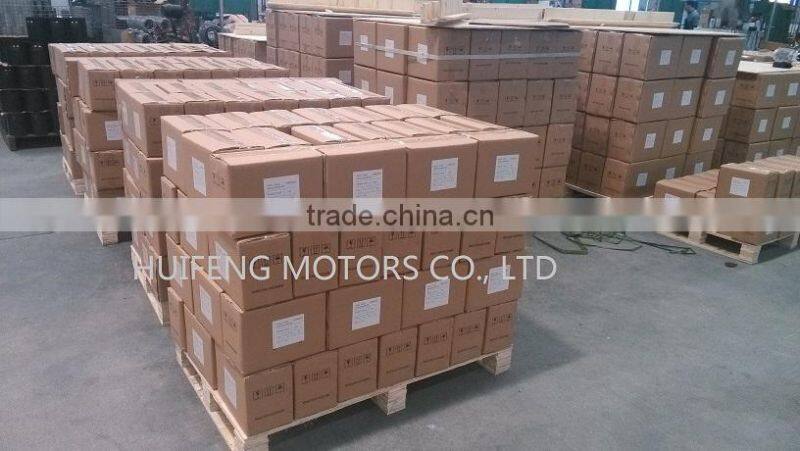

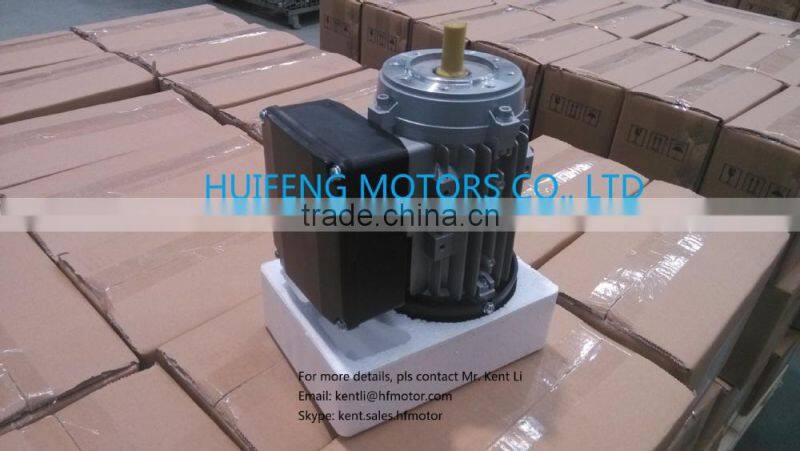

Packaging & Shipping

 IMB14 0.18kW Single Phase Gear Box using MotorIMB14 0.18kW Single Phase Gear Box using MotorIMB14 0.18kW Single Phase Gear Box using Motor
