Home > Products > Electric Motors > CSA/CE Three Phase NEMA 56 frame Motor
CSA/CE Three Phase NEMA 56 frame Motor
USD $47.63 - $100
/ Piece
140 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Fuzhou China
- T/T
You May Like
Product Details
| Brand Name | HUIHENG | Model Number | NS Series | |
| Type | Induction Motor | Frequency | 50/60Hz | |
| Output Power | 0.33HP~2HP | Protect Feature | Totally Enclosed | |
| Phase | Three-phase | Certification | CE, ROHS, Other, CE, ROHS, CSA | |
| AC Voltage | Other, 230/460V | Place of Origin | Fujian, China | |
| Efficiency | Other |
Product Description

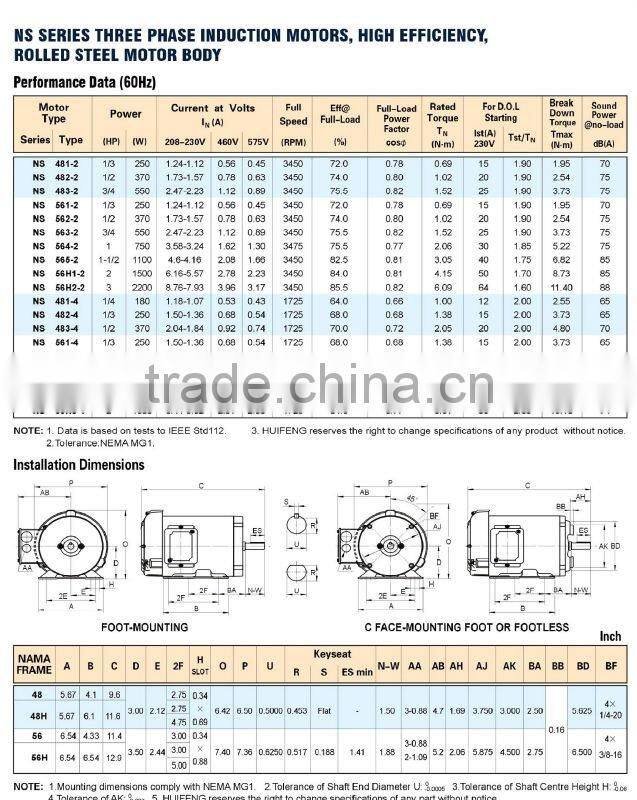

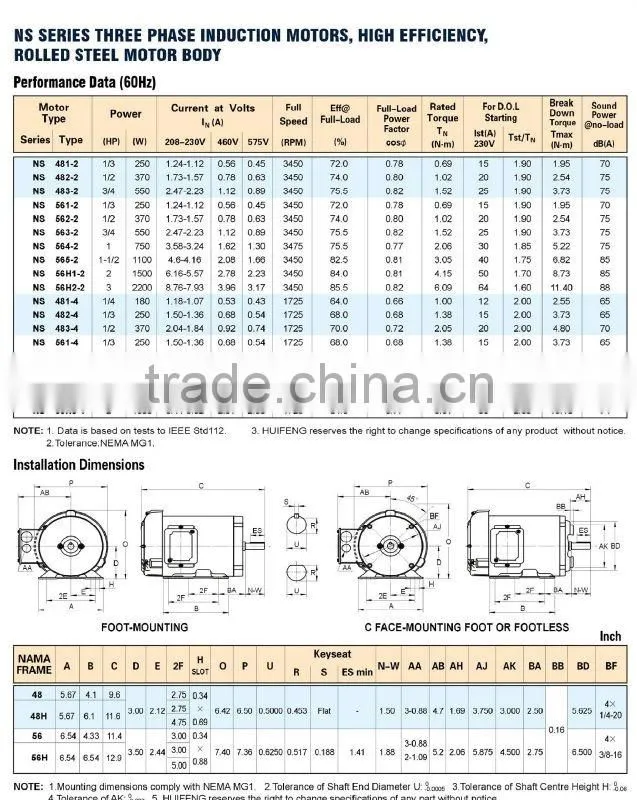

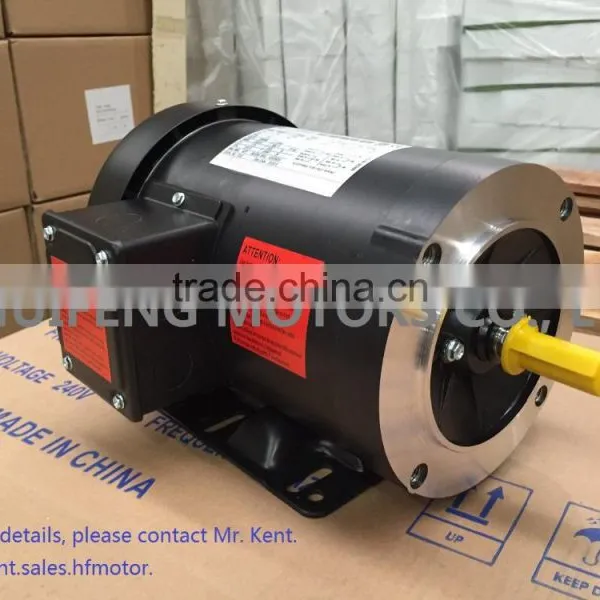

CSA/CE Three Phase NEMA 56 frame Motor
Product Description
Motor Features.
- Rated outputs and frame sizes are in accordance with Nema standard;
- Duty type S1 with sufficienct thermal margin to withstand short overload;
- Degree of protection IP43;
- Insulation class F;
- Maximum Ambient 40°C
- Altitude not higher than 1000 a.s.l
- Service Factor 1.15;
- Manual or Automatic overload protection when Required;
Application:
Pumps, Fans and Blower, Gear reducers, Compressor.
