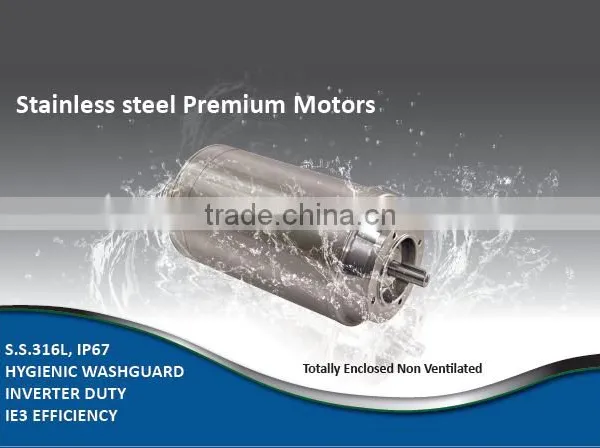

TENV IP67 AC Stainless Steel Motor
Rating:
Output Power 0.18 - 1.5 [kW]
RPM 1500 [min-1] @ 50[Hz] / 1800 [min-1] @ 60[Hz]
Supply 3 phase 230/400V-50Hz - 277/480V-60Hz
Frame and Flange dimensions according IEC 72-1
Materials highly corrosion resistant and safe for direct food contact
Energy consumption according international efficiency regulations IE3(ErP)
Certifications CE certified
Duty cycle 24 hours/day; up to 7 days a week
Insulation Class F
Temperature rise in class A for a long life time expectancy
External temperature not exceeding 60°C
Inverter duty (VFD): yes, rated 10:1 for variable torque,
6:1 for constant torque
Thermal protection: PTO
Bearings: double sealed, axially locked DE
Operating environment:
Temperature -5 to 65 [°C]
Humidity up to 100%
Cleaning information:
Temperature: up to 65 [°C]
Water: drinking water quality
Detergent: highly corrosive chlorine-containing components up to 200[ppm], acid and alkaloid components (pH4 to pH12)
disinfecting components
Pressure: up to 90 [bar] @ 45° angle
Interval: daily
Cleaning process: removing / applying / soaking / rinsing
Thermo shock resistant (instant change from operating temperature to ±5°C)
Options:
- Fixed cable or connector
- Electromagnetic brake;

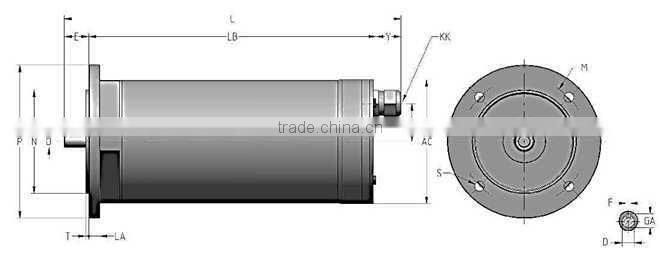

| Size | Bearings | CableGlands | IM B5 | IM B14 | Shaft | General | ||||||||||||||||||||
| DE | NDE | KK | M | N | P | R | n x S | T | M | N | P | R | n x S | T | D | E | F | G | GD | AC | LB | |||||
| 63A | 6202 2RZ | 6202 2RZ | M16X1.5 | 115 | 95 j6 | 140 | £0 | 4x10 | 3 | 75 | 60 j6 | 90 | £0 | 4xM5 | 2.5 | 11 j6 M4 | 23 | 4 | 8.5 | 4 | 131 | 205 | ||||
| 63B | 220 | |||||||||||||||||||||||||
| 71A | 6202 2RZ | 6202 2RZ | M20X1.5 | 130 | 110 j6 | 160 | £0 | 4x10 | 4 | 85 | 70 j6 | 105 | £0 | 4xM6 | 2.5 | 14 j6 M5 | 30 | 5 | 11 | 5 | 131 | 235 | ||||
| 71B | 255 | |||||||||||||||||||||||||
| 80A | 6205 2RZ | 6205 2RZ | M20X1.5 | 165 | 130 j6 | 200 | £0 | 4x12 | 4 | 100 | 80 j6 | 120 | £0 | 4xM6 | 3 | 19 i6 M6 | 40 | 6 | 15.5 | 6 | 166 | 228 | ||||
| 80B | 248 | |||||||||||||||||||||||||
| 90S | 6205 2RZ | 6205 2RZ | M25X1.5 | 165 | 130 j6 | 200 | £0 | 4x12 | 4 | 115 | 95 j6 | 140 | £0 | 4xM8 | 3 | 24 j6 M8 | 50 | 8 | 20 | 7 | 166 | 283 | ||||
| 90L | 323 | |||||||||||||||||||||||||
For more details, please contact Mr. Kent Li..
