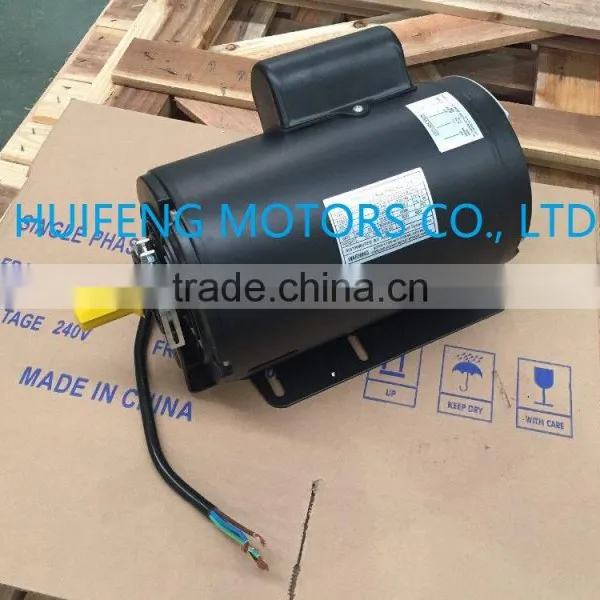

Dual Speed Air Extractors Motor

Product Application

HVAC-DS Series Single phase capacitor - start motors are suitable for fan load, which has two speed rating: 1420/950r.p.m. And their speeds can be transferred by special switch.

Main Features

1) IP22 or IP43 Enclosure;

2). Class F Insulation.

3). 50Hz or 60Hz design. 230V;

4). High quality lamination steel - low iron looss;

5). High quality magnet wire and vacuum varnish impregnation for superior tropic proof insulation;

6). Heavy duty ball bearing;

7). Industrial type service fator;

8). Thermal overload protection;

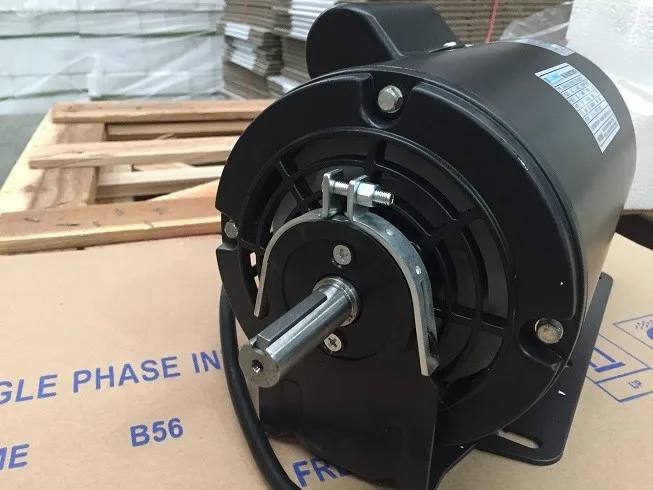

Electric Motor Shaft

Material: 45# Steel, Anti-rust greese before packaging;

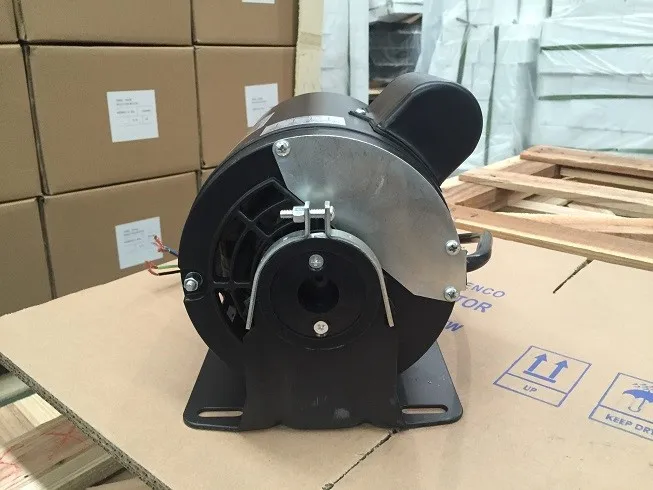

Steel plate:

To protector the connection;

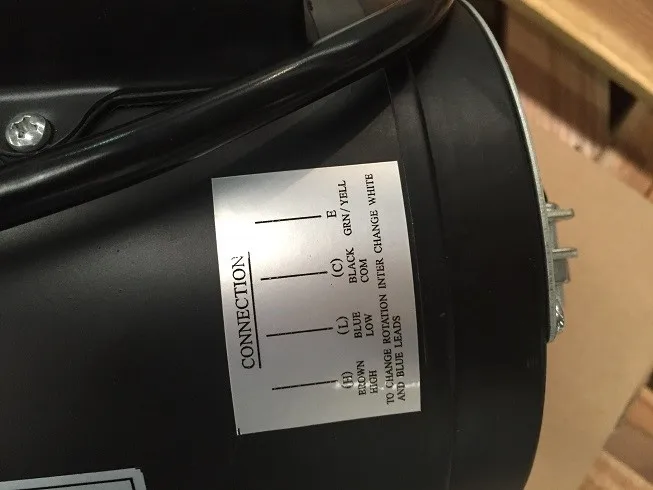

Connection Diagram

Diagram shows the details of connection for high/low speed;

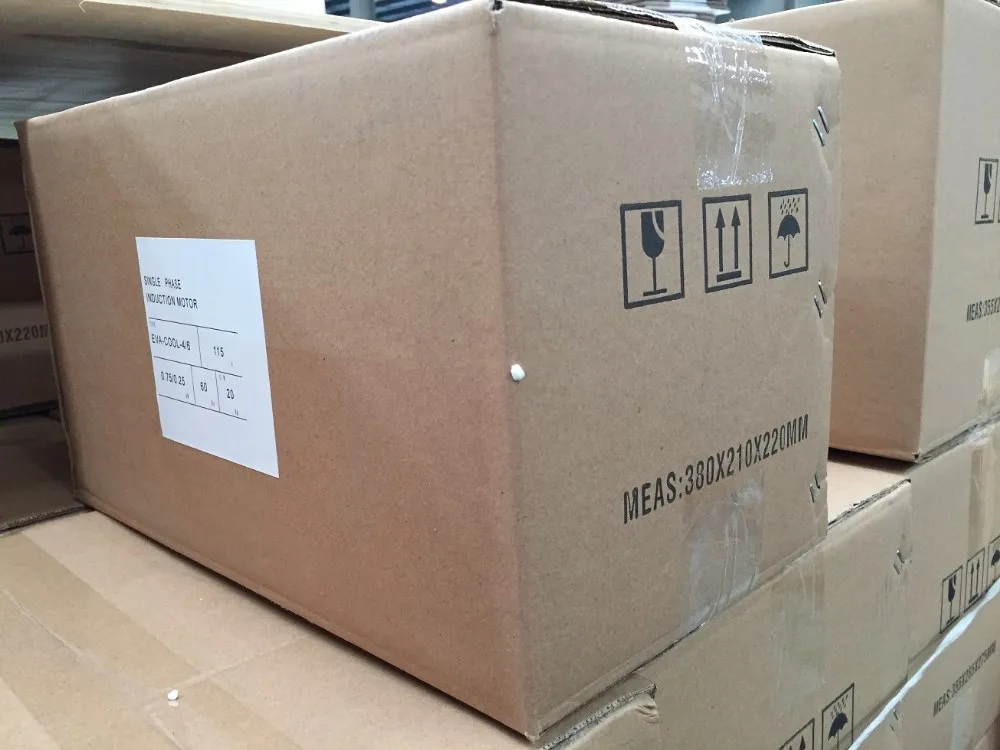

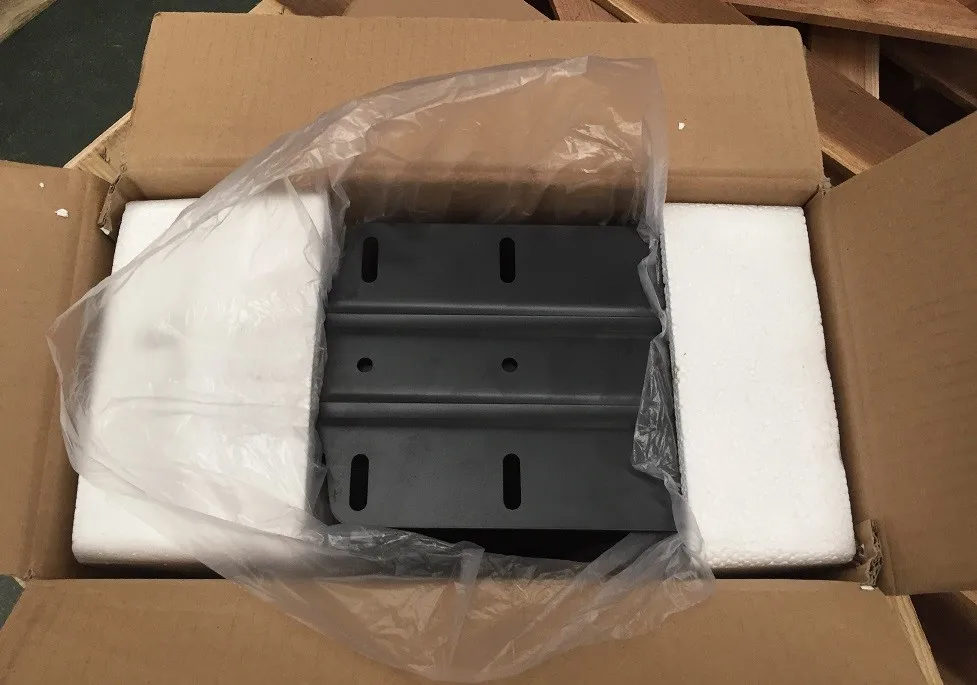

Packaging;

Using strong foam to protect the motor unit. Ensure the products will be in good condition after long way transportation.
