Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Diesel Generator
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
HDY5000LXT
Output Type:
AC Three Phase
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
China
Model Number
HDY5000LXT
Output Type
AC Three Phase
Specifications

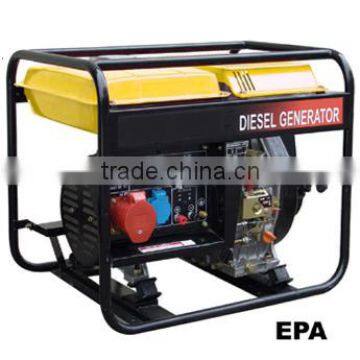

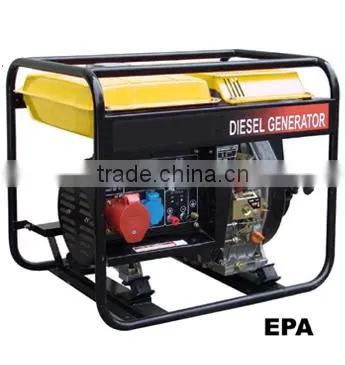

4.5/5.3KVA diesel generator with Recoil&Electric startrequency(Hz):50/60
Max.AC output(KVA):4.5/5
4.5/5.3KVA diesel generator with Recoil&Electric start
requency(Hz):50/60
Max.AC output(KVA):4.5/5.3
Rated AC output(KVA):4.2/5.0
Rated AC Voltage(V): 230/400,240/416
Power Factor (cosφ): 0.8
Type: Brush,self-excitation,2-poles,three-phase
Voltage Regulator: AVR
DC Output: 12V/8.3A(option)
Engine Model:DH186FE
Type:Forced air-cooled,4-stroke,Diesel Engine
Displacement(cc): 406
Max.Output(Hp/rpm): 10.0/3600
Fuel: Diesel Light Fuel
Fuel Tank capacity(L): 14
Continuous Operating Hours(H):8.5/8.0
Oil :SAE 10W30(Above CC grade)
Oil capacity(L): 1.65
Ignition System :Direct injection
Starting System:Recoil+Electric start
Operating Noise Level(7m)db(A):84/85
Net Dimension LXWXH(mm): 720x480x580
Overall Dimension LXWXH(mm): 735x495x605
N.W./G.W.(kg):97/100
20GP/40GP/40HQ: 102/213/284
