Specifications
overall weight is 9500kgrated load is 3000kg
bucket capacity is 1.7cbm
optional engine is Cummins

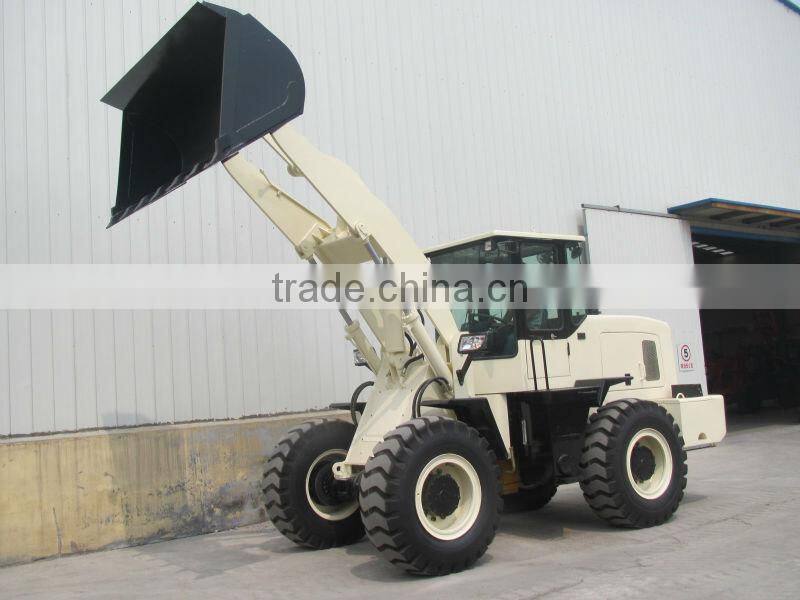

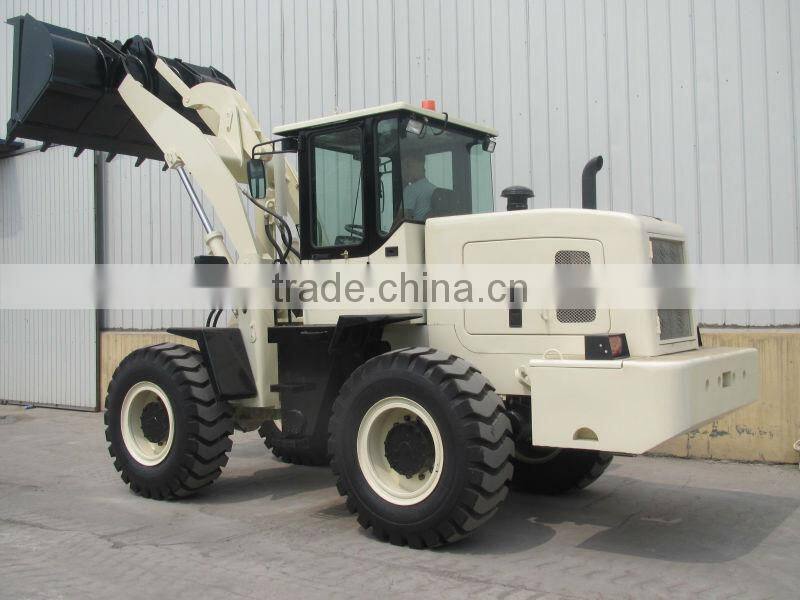

HZM936 WHEEL LOADER
Specification | Operating weight(kg) | 9500 |
L×W×H(mm) | 7100×2300×3100 | |
rated bucket capacity(m3) | 1.7 | |
Rated load(kg) | 3000 | |
Maximum dump height (mm) | 3200 | |
Wheelbase(mm) | 2635 | |
Thread (mm) | 1800 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 138 | |
Engine | Model | DEUTZ WP6G125E22 |
Type | In line, direct injection, four-stroke, liquid cooled | |
Rated power(kw) | 92kw | |
Rated speed(r/min) | 2200 | |
Transmission system | Model of torque converter | YJ320B-1 |
Type | Single stage,3 elements | |
Gearbox model | 428 | |
Gearbox type | Axial full power shift transmission | |
Gear shift | 4 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | DF25 |
Working pump | CBGj2100,CBGq2100 | |
Tank capacity | Diesel oil tank | 137L |
Hydraulic oil tank | 90L | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | lift and right 35.5±1° | |
Min turning radius(mm) | 5862 | |
Brake system | Brake type | Air-break brake |
Tires | Standard tires | 17.5-25 |
