Backhoe Wheel Loader Low Price 1.2t CE EPA Engine JN912

Name: Backhoe Wheel Loader Low Price 1.2t CE EPA Engine JN912
Brand: HUIZHONG
SKU: 143316666
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

JN912

Qingzhou Huizhong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number JN912

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4760X1680X2550

Rated Load 1200KG

Warranty 1 year or 16 months

Specifications

*low price wheel loader
*could use differet E3 egine

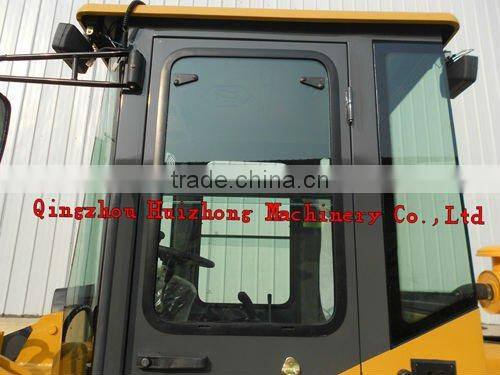

*wider longer cabin /Push-pull window
*Wider tyres for engineering

Specification	overall weight(kg)	3400
	L×W×H(mm)	4760×1680×2550
	rated bucket capacity(m³)	0.6
	Rated load(kg)	1200
	Maximum dump height (mm)	2750
	Bucket indicator	Yes
	Max. breakout force(KN)	43
Engine	Model	Changchai 4L68
	Type	In-line arrangement, Water cooling, four-stroke
	Rated power(kw)	37kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ240
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	ZL20B
Hydraulic system	Working pump	CBGj1045,CBGq1018
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	27±1°
	Min turning radius(mm)	3000
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	1200-16
Tyres	Optional wide tyres	12-16.5
packing details	1 pcs/20’ctn; 3 pcs/40’HC
DELIVERY	20 days upon the receipt of deposit
PAYMENT	T/T ,30% deposit,THE BALANCE before SHIPMENT
OPTIONAL DEVICE	quick hitch device, joystick(pilot control),pallet fork, log fork,4-in-1bucket
