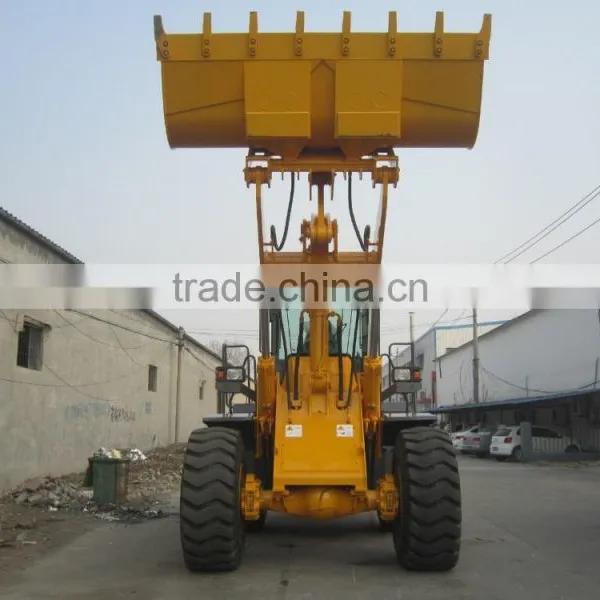

HZM 953 5ton Wheel Loader With CE

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HZM

Model Number:

HZM956

Qingzhou Huizhong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HZM

Model Number HZM956

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7720X3030X3380

Rated Load 5000kg

Certification CE

Warranty 1year

5 ton front wheel Loader
Rating loading capacity		5000 kg	Travel speed	Forward 1st gear		10 km/h
Bucket capacity		3 m³ (standard bucket)
optional bucket		2.5m³(rock bucket) ; 2.7 m³;		Forward 2nd gear		34 km/h
		3.6 m³ (lightweight bucket)
Dumping height		3205 mm		Reverse 1st gear		13 km/h
Dumping reach		1200 mm
Max. lifting height		4315 mm	Diesel engine	Modl	standard	Steyr WD10G220E11
					optional	Xichai6110/Deutz
System pressure		16 Mpa		Rating power		162 kw
Arm lifting time		≤ 6.5s		Rating rev.		2200 r/min
Arm declining time		≤ 4.5s		Min. specific fuel consumption		215 g/kw.h
Bucket forward tilting time		≤ 2.5s	Transmission	type of torque converter		Dual-turbine type
Breakout force		154 kN		Stall torque ratio		4
Min. turning radius(center of outside wheels )		5745 mm		Oil pressure of torque converter inlet		0.3 - 0.45 Mpa
				Type of Gearbox		Planetary, hydraulic power shift
Working pressure of steering system		16 Mpa	Oil capacity	Fuel tank		278 L
Max. turing angle		38°		Hydraulic system		278 L
Wheelbase		3200 mm		Engine oil		20 L
Tread		2200 mm		Gearbox		45 L
Tyre	specification	23.5-25		Axles and final drive		83 L
	Air pressure	Front 0.32 Mpa Rear 0.28 Mpa		Brake system		3.52 L
Operation weight		16.5 t	Axles	Type of main transmission		Spiral bevel gear
Dimension	Overall length	7720 mm		Reduction ratio		5.286
	Overall width	3030mm		Type of final drive		Spur planetary gear
	Overall height	3380 mm		Reduction ratio		4.26
