Front End Loader With CE Loader Machine

Name: Front End Loader With CE Loader Machine
Brand: HUIZHONG
SKU: 143316490
Availability: InStock

US$ 41,000 - 45,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Brand Name:

HUIZHONG

Model Number:

ZL956

Qingzhou Huizhong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HUIZHONG

Model Number ZL956

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7785X3000X3350

Rated Load 5000KG

Specifications

front end loader with CE loader machine
*Engine:STEYR/cummins

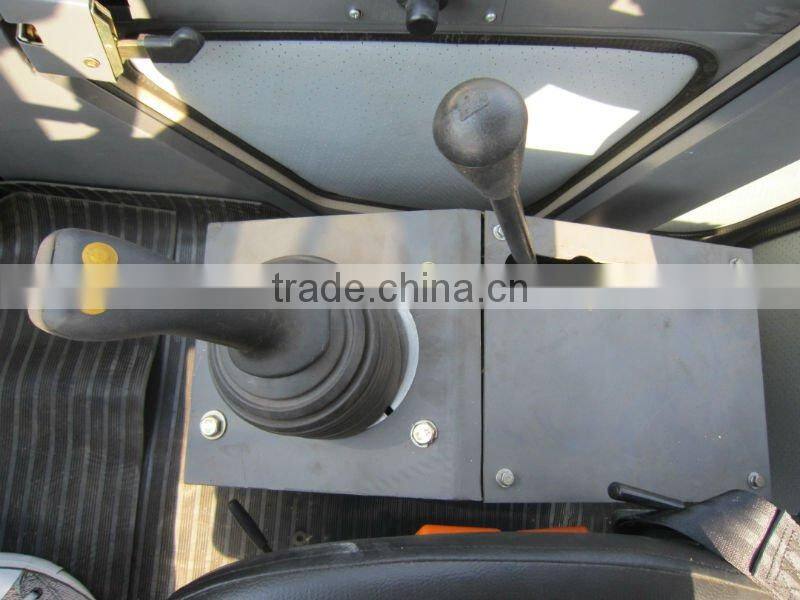

*Joystick,hydraulic pilot control
*bucket capacity:3cbm loader

Specification	overall weight(kg)	17000kg
	L×W×H(mm)	7934x3060x3483
	rated bucket capacity(m³)	3.0
	Rated load(kg)	5000kg
	Maximum dump height (mm)	3098
	Bucket indicator	Yes
	Max. breakout force(KN)	172.3
Engine	Model	STEYR WD10G220E22
	Type	In-line arrangement, Water cooling, four-stroke,direct injection
	Rated power(kw)	162kw
	Rated speed(r/pm)	2200
Transmission system	Model of torque converter	YJ375X
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	4 gears ahead,4 gear astern
Hydraulic system	Distribution of work valve	DF32.2C
	Displacement	80ml/r
	Working pump	CBGJ2080
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	35±1°
	Min turning radius(mm)	7268
Brake system	Brake type	Air assisted oil disc on four wheel
Tyres	Standard tyres	23.5-25
