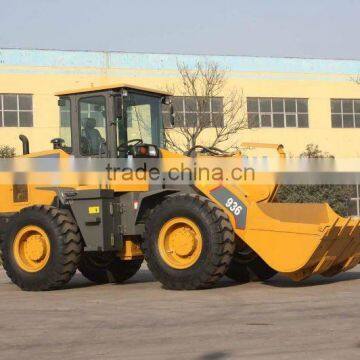

Fully Hydraulic CE Compact Wheel Loader HZ936

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

China loader adot advanced tech.
various optional tools
fully hydraulic control
Dutz engine offer powerful work
new cab

Specifications of HZ936 China wheel loader

Specification	overall weight(kg)	9500
	L×W×H(mm)	7050×2430X3120
	rated bucket capacity(m³)	1.7
	Rated load(kg)	3000
	Maximum dump height (mm)	3020/3250
	Bucket indicator	Yes
	Max. breakout force(KN)	138
Engine	Model	Deutz TD226B/Cummins 6BT5.9-C125
	Type	In line,direct injection, four-stroke,liquid cooled
	Rated power(kw)	92kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ320B
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	DF25
Hydraulic system	Working pump	CBGj2100,CBGq2100
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	lift and right 36.5±1°
	Min turning radius(mm)	5862
Brake system	Brake type	air-break brake
Tyres	Standard tyres	17.5-25
