Home > Products > ZL36 wheel loader with CE > CE CUMMINS Engine Loader Wheel

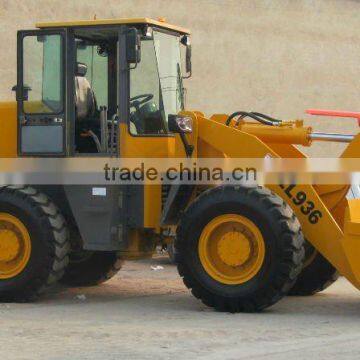

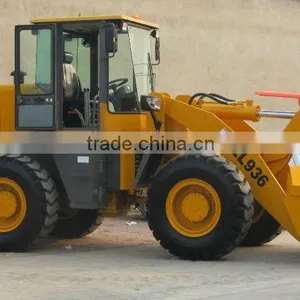

CE CUMMINS Engine Loader Wheel
- Qingdao port
- T/T Money Gram
You May Like
Product Details
| Condition | New | Brand Name | HUIZHONG | |
| Model Number | ZL936 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7050x2430x3120 | Rated Load | 3000 |
Product Description
Specifications
hot sale wheel loader with CE1. Pallet fork and bucket
2. Capacity 5 ton-30 ton
3. Quick release and coupling
Specification | overall weight(kg) | 9500 |
L×W×H(mm) | 7050×2430×3120 | |
rated bucket capacity(m3) | 1.7 | |
Rated load(kg) | 3000 | |
Maximum dump height (mm) | 3250/3500 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 138 | |

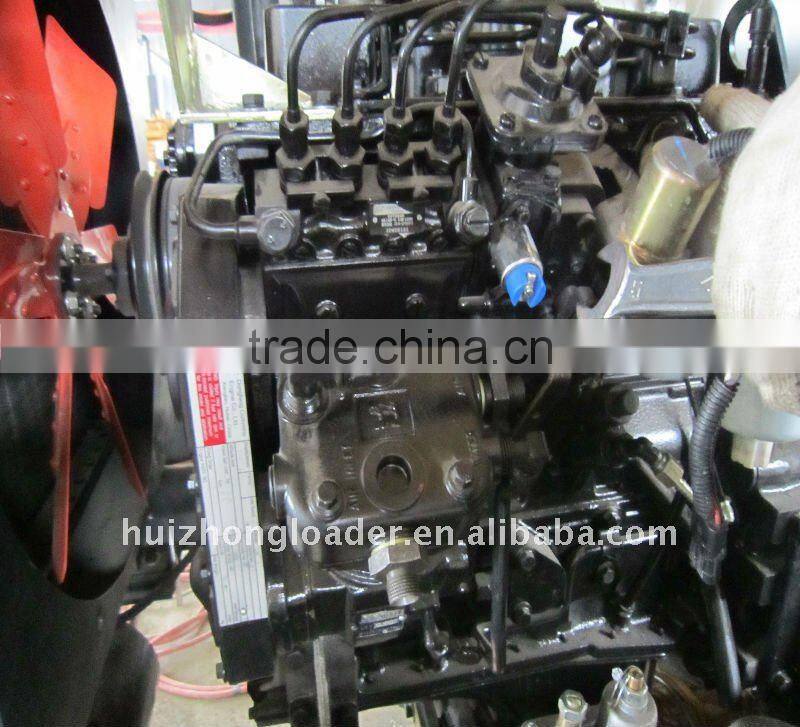

Engine | Model | Cummins 6BT5.9-C125/DEUTZ |
Type | In line, direct injection, four-stroke, liquid cooled | |
Rated power(kw) | 92kw(125hp) | |
Rated speed(r/min) | 2400 | |
Transmission system | Model of torque converter | YJ320B |
Type | Single stage,3 elements | |
Gearbox type | Axial full power shift transmission | |
Gear shift | 4 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | DF25 |
Working pump | CBGj2100,CBGq2100 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | lift and right 36.5±1° | |
Min turning radius(mm) | 5862 | |
Brake system | Brake type | Air-break brake |
Tires | Standard tires | 17.5-25 |
