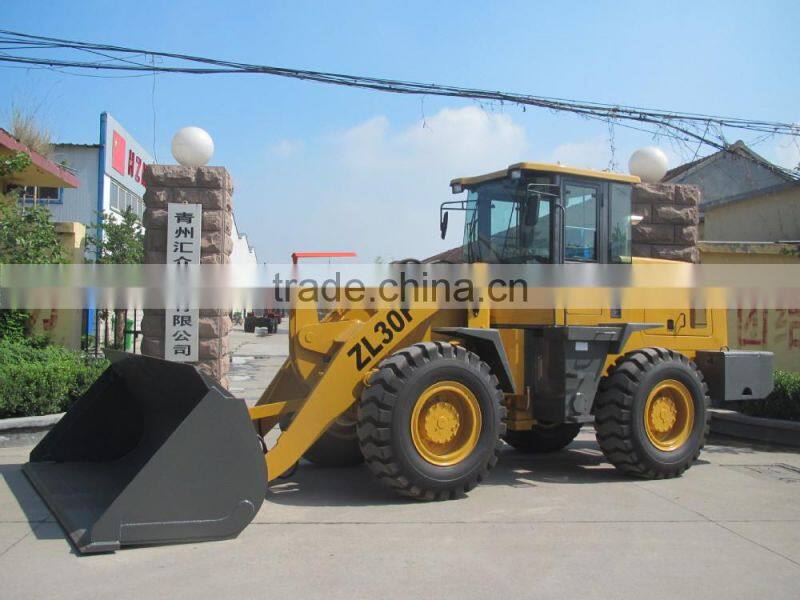

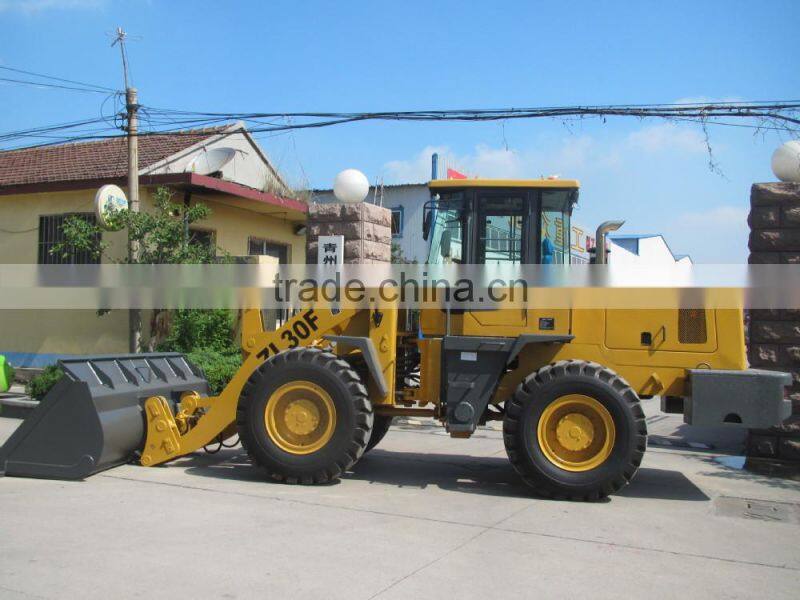

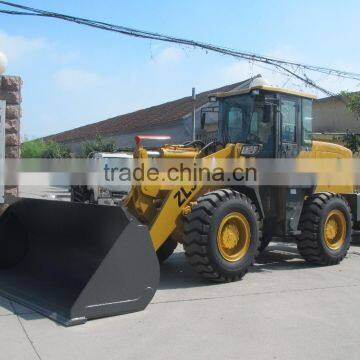

HZM 3ton Hot Wheel Loader With ce

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Streamline appearance, beautiful and elegant.

2.Torque converter and counter-shaft transmission gearbox-Komatsu technology, assembled separately, higher reliability and easier maintenance

3.Pilot controlled, fully hydraulic steering system , power shift transmission, easier operation.

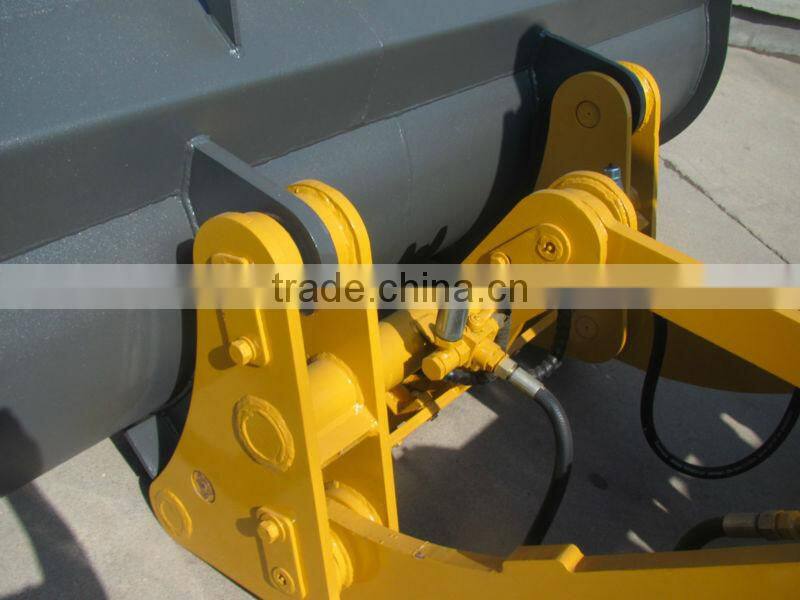

4. Various working devices of attachment are available

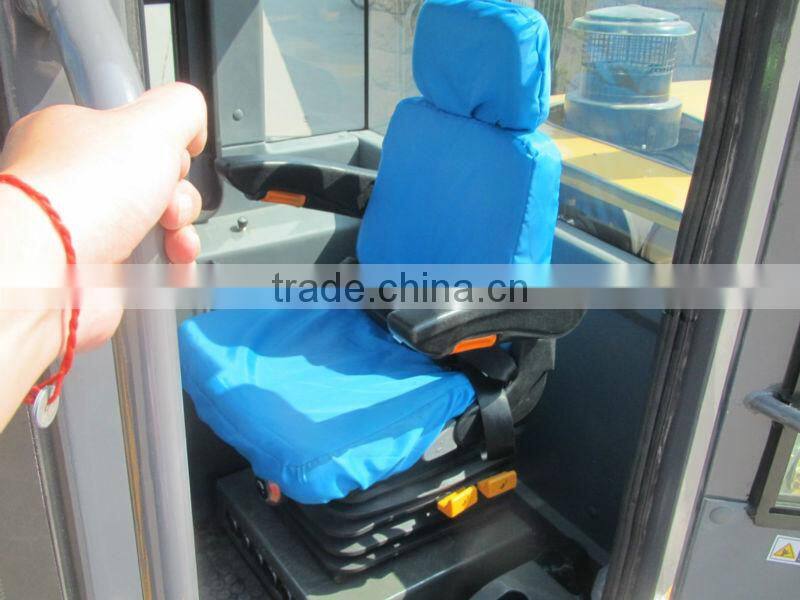

5.Comfortable operation environment , new design cabin, Grammer seat, air-conditioner at option.

Specifications of ZL936 CE 3 ton grapple bucket loader

Specification	overall weight(kg)	9700
	L×W×H(mm)	7050×2430X3120
	rated bucket capacity(m³)	1.8
	Rated load(kg)	3000
	Maximum dump height (mm)	3020/3250
	Bucket indicator	Yes
	Max. breakout force(KN)	138
Engine	Model	Xichai/Deutz TD226B/Cummins 6BT5.9-C125
	Type	In line,direct injection, four-stroke,liquid cooled
	Rated power(kw)	92kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ320B
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	DF25
Hydraulic system	Working pump	CBGj2100,CBGq2100
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	lift and right 36.5±1°
	Min turning radius(mm)	5862
Brake system	Brake type	air-break brake
Tyres	Standard tyres	17.5-25
Tyres
