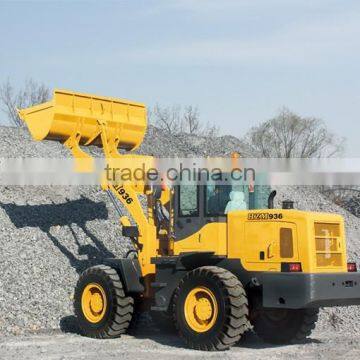

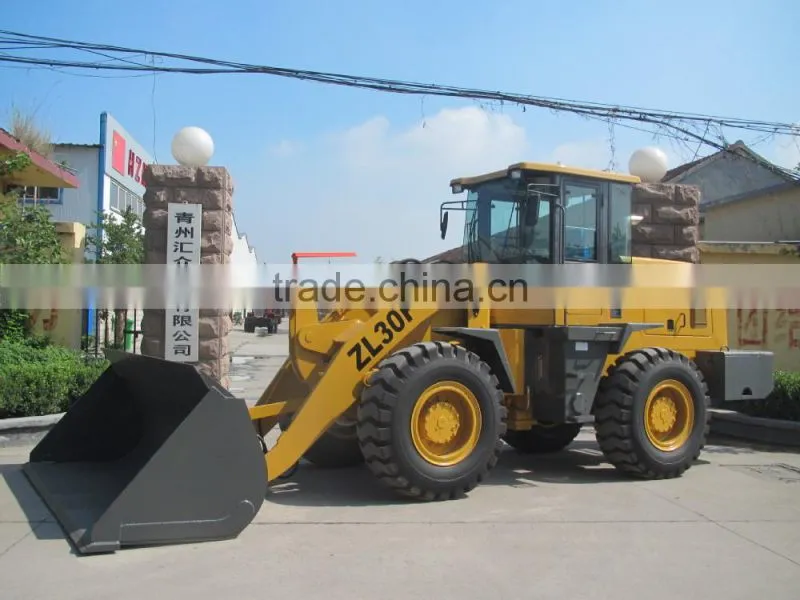

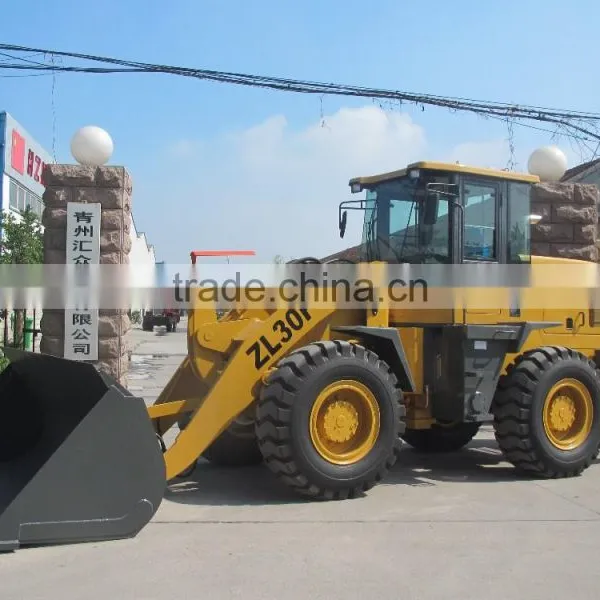

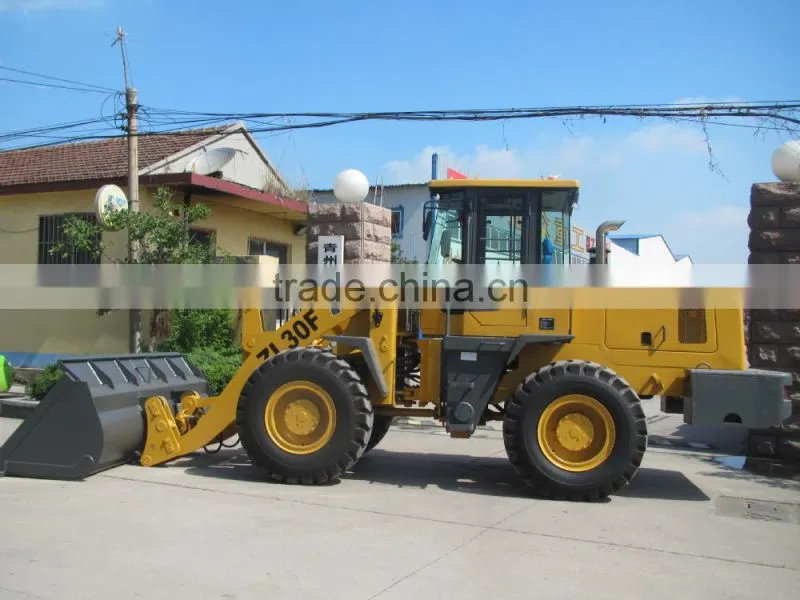

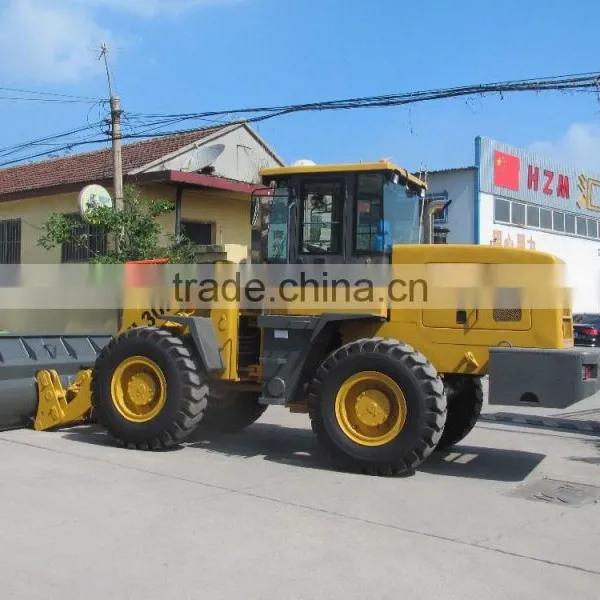

2015 HZM 3t Wheel Loader ZL30 With CE

Name: 2015 HZM 3t Wheel Loader ZL30 With CE
Brand: Huizhong
SKU: 143316298
Availability: InStock

Qingzhou Huizhong Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Huizhong

Model Number:

zl936

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Huizhong

Model Number zl936

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7050X2430X3120 mm

Rated Load 3600kg

Certification CE

Warranty 1year

1.Streamline appearance, beautiful and elegant.

2.Torque converter and counter-shaft transmission gearbox-Komatsu technology, assembled separately, higher reliability and easier maintenance

3.Pilot controlled, fully hydraulic steering system , power shift transmission, easier operation.

4. Various working devices of attachment are available

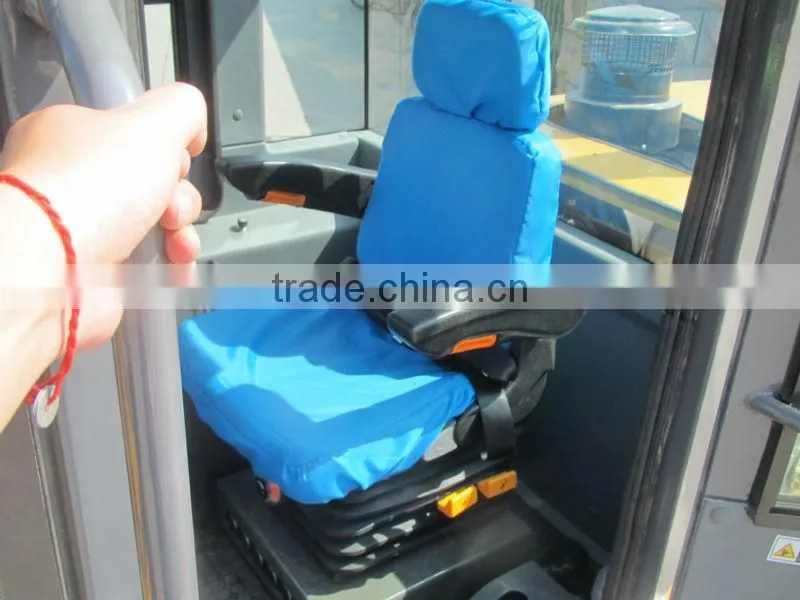

5.Comfortable operation environment , new design cabin, Grammer seat, air-conditioner at option.

Specifications of ZL936 CE 3 ton grapple bucket loader

Specification	overall weight(kg)	9700
	L×W×H(mm)	7050×2430X3120
	rated bucket capacity(m³)	1.8
	Rated load(kg)	3000
	Maximum dump height (mm)	3020/3250
	Bucket indicator	Yes
	Max. breakout force(KN)	138
Engine	Model	Xichai/Deutz TD226B/Cummins 6BT5.9-C125
	Type	In line,direct injection, four-stroke,liquid cooled
	Rated power(kw)	92kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ320B
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	DF25
Hydraulic system	Working pump	CBGj2100,CBGq2100
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	lift and right 36.5±1°
	Min turning radius(mm)	5862
Brake system	Brake type	air-break brake
Tyres	Standard tyres	17.5-25
