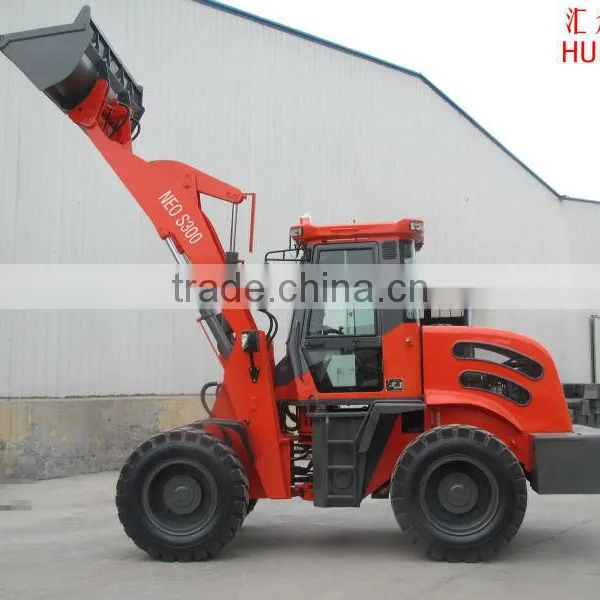

NEO CTK Canada HZM930 Wheel Loader With Agricultural Tires

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	HUIZHONG
Model Number	NEO S300	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	6500x2100x3050mm	Rated Load	3000kg
Certification	CE and ISO9001	Warranty	12 months after receive wheel loader, 12 months after receive wheel loader
After-sales Service Provided	Overseas third-party support available

CE ISO9001
Fully hydraulic steering system
Hydaulic quick change
Floating position function
Agricultural tires 16/70-24

Specification	overall weight(kg)	6200KG
	L×W×H(mm)	6700x2105x6050
	rated bucket capacity(m³)	1.2
	Rated load(kg)	2000
	Maximum dump height (mm)	3200/3500
	Bucket indicator	Yes
	Max. breakout force(KN)	48.8KN
Engine	Model	weichai 4RMAZG
	Type	In-line arrangement, direct injection, Water cooling, four-stroke
	Rated power(kw)	83kw
	Rated speed(r/min)	2400
Transmission system	Model of torque converter	YJ280
	Type	single grade three componets
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	DF20.2C
Hydraulic system	Working pump	CBF18
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	35±1°
	Min turning radius(mm)	4500
Brake system	Brake type	Air assisted oil disc on four wheel
Tyres	Standard tyres	16/70-24
Tyres	Optional wide tyres
