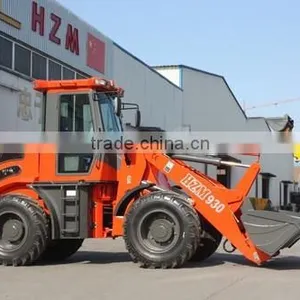

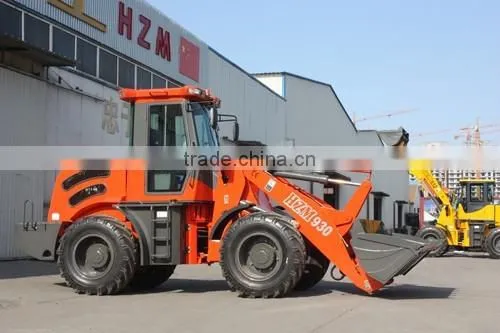

Help CenterHZM Brand HZM930 Whee Loader
Related Products
-
Snow Bucket Equipment Zl28 Front LoaderNegotiableMOQ: 1 Set -
Zl28 Fully Hydraulic Modern Construction Wheel Loader With CENegotiableMOQ: 1 Set
-
Heavy Equipment Best Prices Zl28 Wheel Loader With CENegotiableMOQ: 1 Set
-
HZ Zl28 Front Loader for Sale With CENegotiableMOQ: 1 Set
-
Zl30 High Quality New Design Wheel Loader for Sale With Snow PlowNegotiableMOQ: 1 Set
Specifications
CE / ROPS / CEA / Noise certificate / ISO9001New big Europe cabin with side up
Emark lamp and seat
Stronger arms
Specifications of ZL30FS truck loader
Specification |
overall weight(kg) |
6200KG |
L×W×H(mm) |
6500X2100X3050 |
|
rated bucket capacity(m3) |
1.2-1.5 |
|
Rated load(kg) |
3000 |
|
Maximum dump height (mm) |
3600MM |
|
Bucket indicator |
Yes |
|
Max. breakout force(KN) |
48.8KN |
|
Engine |
Model |
YTO YT4A2Z-24 |
Type |
In-line arrangement, direct injection, Water cooling, four-stroke |
|
|
Rated power(kw) |
85kw |
|
Rated speed(r/min) |
2400 |
|
Transmission system |
Model of torque converter |
YJ280 |
Type |
single grade three componets |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Hydraulic system |
Distribution of work valve |
DF20.2C |
Working pump |
CBF18 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
35±1° |
|
Min turning radius(mm) |
4500 |
|
Brake system |
Brake type |
Air assisted oil disc on four wheel |
Tyres |
Standard tyres |
16/70-24 |
Optional wide tyres |
Agricultural tire |
