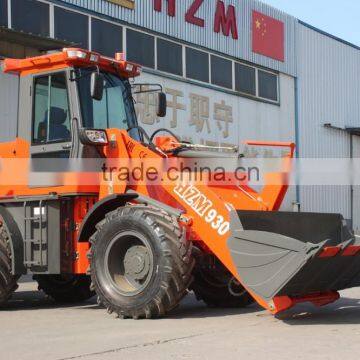

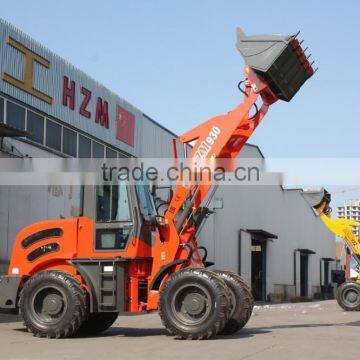

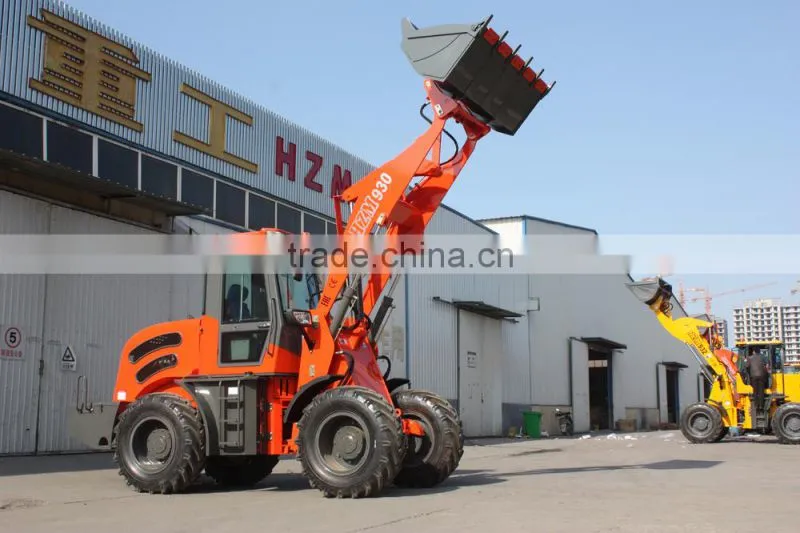

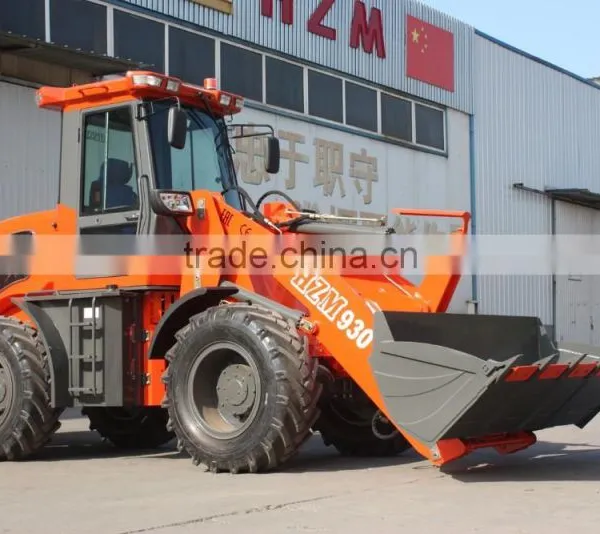

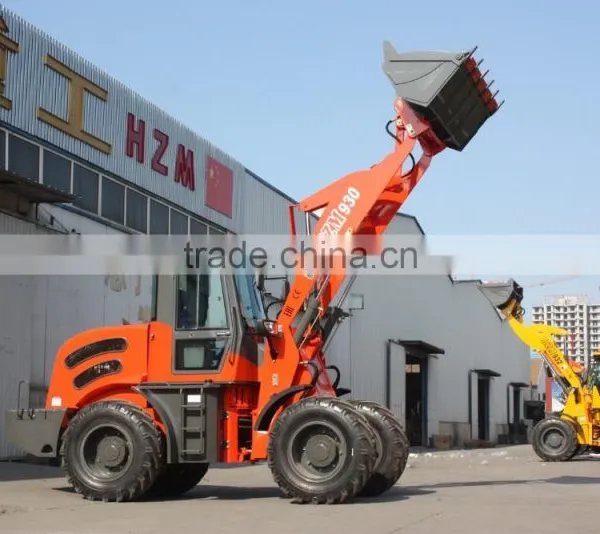

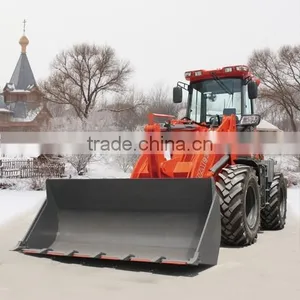

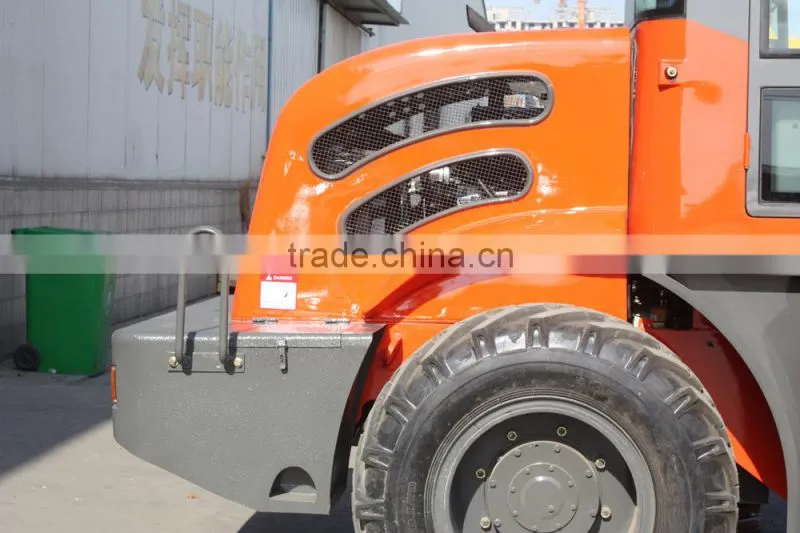

2015 HZM NEO S300 3ton ROPS Front Loader

Name: 2015 HZM NEO S300 3ton ROPS Front Loader
Brand: Huizhong
SKU: 143316138
Availability: InStock

Qingzhou Huizhong Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Huizhong

Model Number:

ZL28

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Huizhong

Model Number ZL28

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 6700X2104X3050

Rated Load 3000kg

Certification CE

Warranty 1year

Product Description

1.Streamlined appearance design,elegant and generous.

2.YTO(85KW)strong power engine with a stable performance.

3.Fully hydraulic steering systm,easy to operation

4.New sealing cab,Grammer seat with a comfortable operating environment.

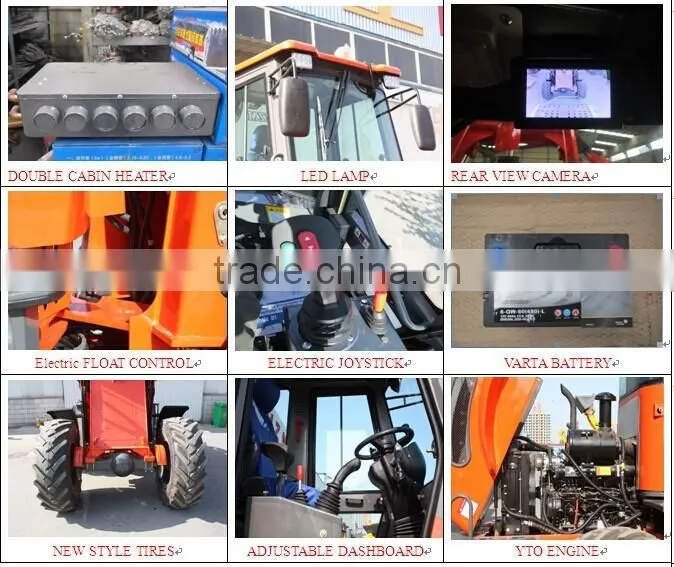

5.Double cabin heater,double brake pump.

6.New style tires can adapt for different working environment

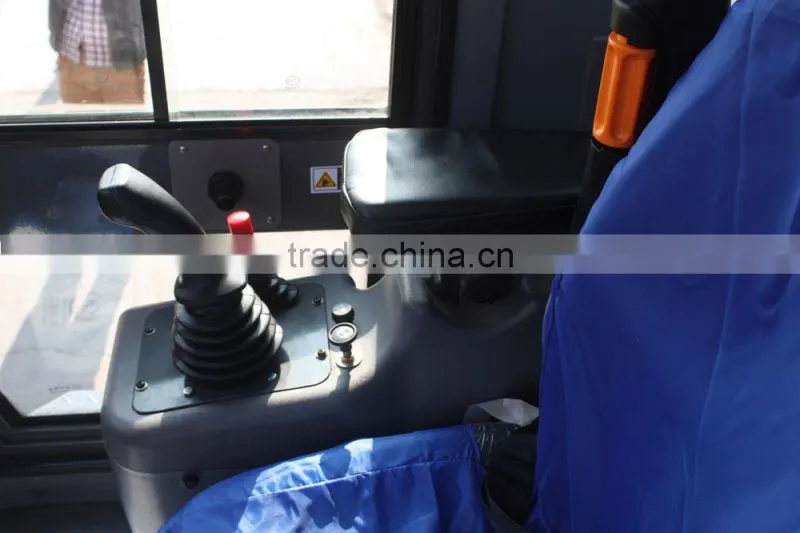

7. LED lamp,varta battery,adjustable seat,six air outlet cab heater,electric joystick,rear view camera etc.

Specifications of HZM S300 loader truck

Specification	overall weight(kg)	6200KG
	L×W×H(mm)	6700x2104x3050
	rated bucket capacity(m³)	1.3
	Rated load(kg)	3000
	Maximum dump height (mm)	3200/3500
	Bucket indicator	Yes
	Max. breakout force(KN)	48.8KN
Engine	Model	YTO
	Type	In-line arrangement, direct injection, Water cooling, four-stroke
	Rated power(kw)	85kw
	Rated speed(r/min)	2400
Transmission system	Model of torque converter	YJ280
	Type	single grade three componets
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	DF20.2C
Hydraulic system	Working pump	CBF18
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	35±1°
	Min turning radius(mm)	4500
Brake system	Brake type	Air assisted oil disc on four wheel
Tyres	Standard tyres	16/70-24
Tyres	Optional wide tyres
